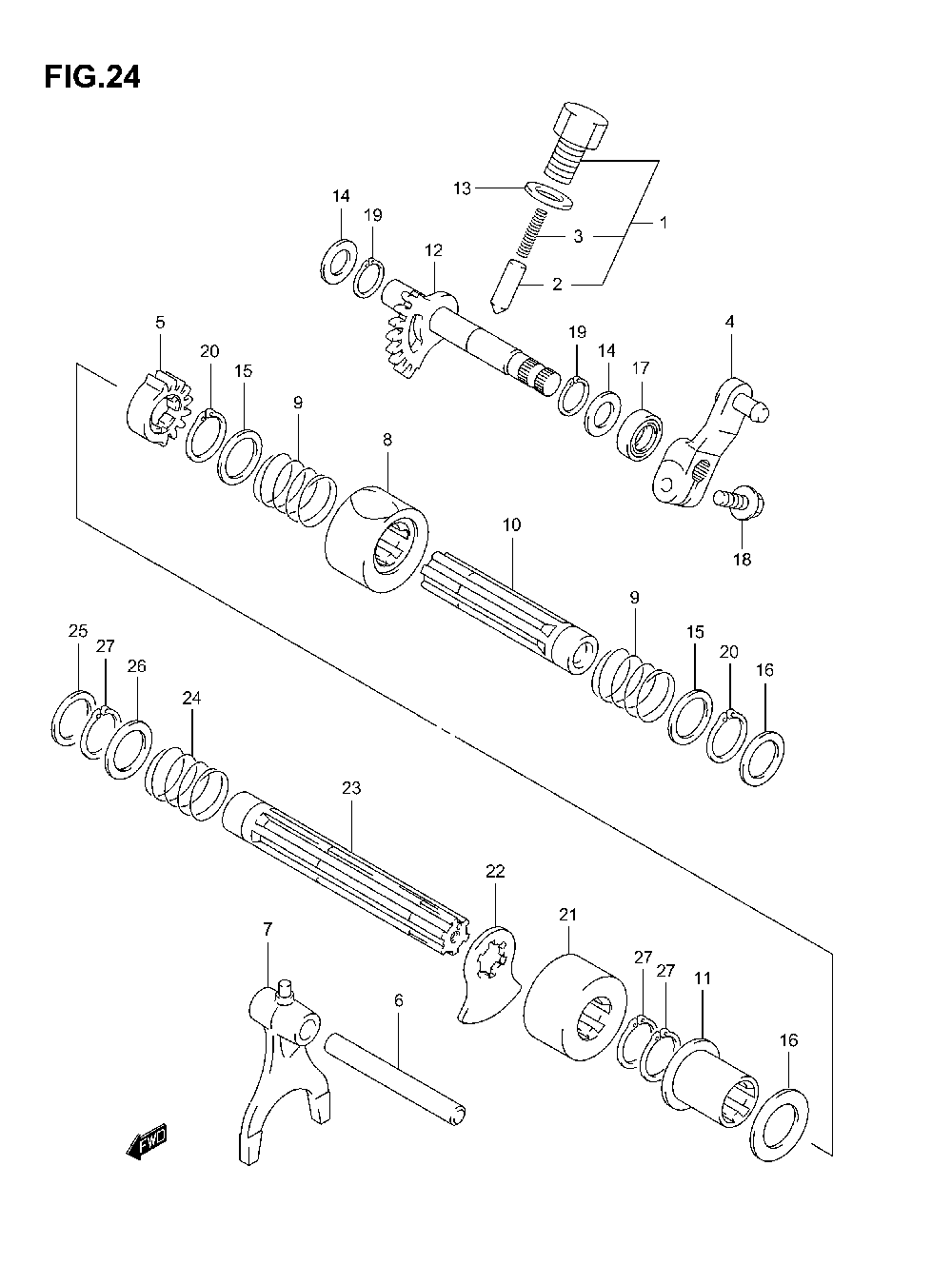

GEAR SHIFTING (2) для Suzuki LT-F400F EIGER 4x4 MANUAL - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    25350-38F50 STOPPER, SUB T/M SHIFT CAM
    STOPPER, SUB T/M SHIFT CAM
  • 2
    25351-38F50 STOPPER
    STOPPER
  • 3
    29613-38F50 SPRING
    SPRING
  • 4
    25360-03G20 ARM, SUB T/M GEAR SHIFT (UP TO F.NO.5SAAK46A3X102000)
    ARM, SUB T/M GEAR SHIFT (UP TO F.NO.5SAAK46A3X102000)
  • 4
    25360-38F60 ARM, SUB T/M GEAR SHIFT (F.NO.5SAAK46A3X102001 AND ABOVE)
    ARM, SUB T/M GEAR SHIFT (F.NO.5SAAK46A3X102001 AND ABOVE)
  • 5
    25381-38F50 PLATE, SUB T/M GEAR
    PLATE, SUB T/M GEAR
  • 6
    25421-14330 SHAFT, SUB T/M GEAR
    SHAFT, SUB T/M GEAR
  • 7
    29511-38F50 FORK, SUB T/M GEAR
    FORK, SUB T/M GEAR
  • 8
    29611-38F50 CAM, SUB T/M GEAR
    CAM, SUB T/M GEAR
  • 9
    29612-38F50 SPRING, SUB T/M SHIFT
    SPRING, SUB T/M SHIFT
  • 10
    29620-38F50 SHAFT, SUB T/M GEAR
    SHAFT, SUB T/M GEAR
  • 11
    29625-38F50 JOINT, SHIFT CAM SHAFT
    JOINT, SHIFT CAM SHAFT
  • 12
    29640-38F50 SHAFT, SUB T/M NO.2
    SHAFT, SUB T/M NO.2
  • 13
    09168-14002 GASKET, SUB T/M SHIFT 13.8X18.8X0.4
    GASKET, SUB T/M SHIFT 13.8X18.8X0.4
  • 14
    09181-12167 WASHER SUB T/M NO.2 12X20X1.0
    WASHER SUB T/M NO.2 12X20X1.0
  • 15
    09181-20139 WASHER, SHIFT CAM 20X26X1.0
    WASHER, SHIFT CAM 20X26X1.0
  • 16
    09181-20251 WASHER, SUB T/M SHIFT 20X34X1.0
    WASHER, SUB T/M SHIFT 20X34X1.0
  • 17
    09285-12006 OIL SEAL (12X22X9)
    OIL SEAL (12X22X9)
  • 18
    01550-06203 BOLT, SUB T/M ARM
    BOLT, SUB T/M ARM
  • 19
    08331-31126 CIRCLIP
    CIRCLIP
  • 20
    08331-31206 CIRCLIP, GEAR CAM
    CIRCLIP, GEAR CAM
  • 21
    25321-38F50 CAM, REVERSE SHIFT (UP TO F.NO.5SAAK46A3X102000)
    CAM, REVERSE SHIFT (UP TO F.NO.5SAAK46A3X102000)
  • 21
    25321-38F60 CAM, REVERSE SHIFT (F.NO.5SAAK46A3X102001 AND ABOVE)
    CAM, REVERSE SHIFT (F.NO.5SAAK46A3X102001 AND ABOVE)
  • 22
    25322-38F50 PLATE, SHIFT CAM LOCK
    PLATE, SHIFT CAM LOCK
  • 23
    25531-38F50 SHAFT, REVERSE SHIFT
    SHAFT, REVERSE SHIFT
  • 24
    29612-38F50 SPRING, REVERSE SHAFT
    SPRING, REVERSE SHAFT
  • 25
    09181-20167 WASHER, REVERSE SHAFT 20X28X1.0
    WASHER, REVERSE SHAFT 20X28X1.0
  • 26
    09181-20167 WASHER, REVERSE SPRING 20X28X1.0
    WASHER, REVERSE SPRING 20X28X1.0
  • 27
    08331-31206 CIRCLIP
    CIRCLIP
