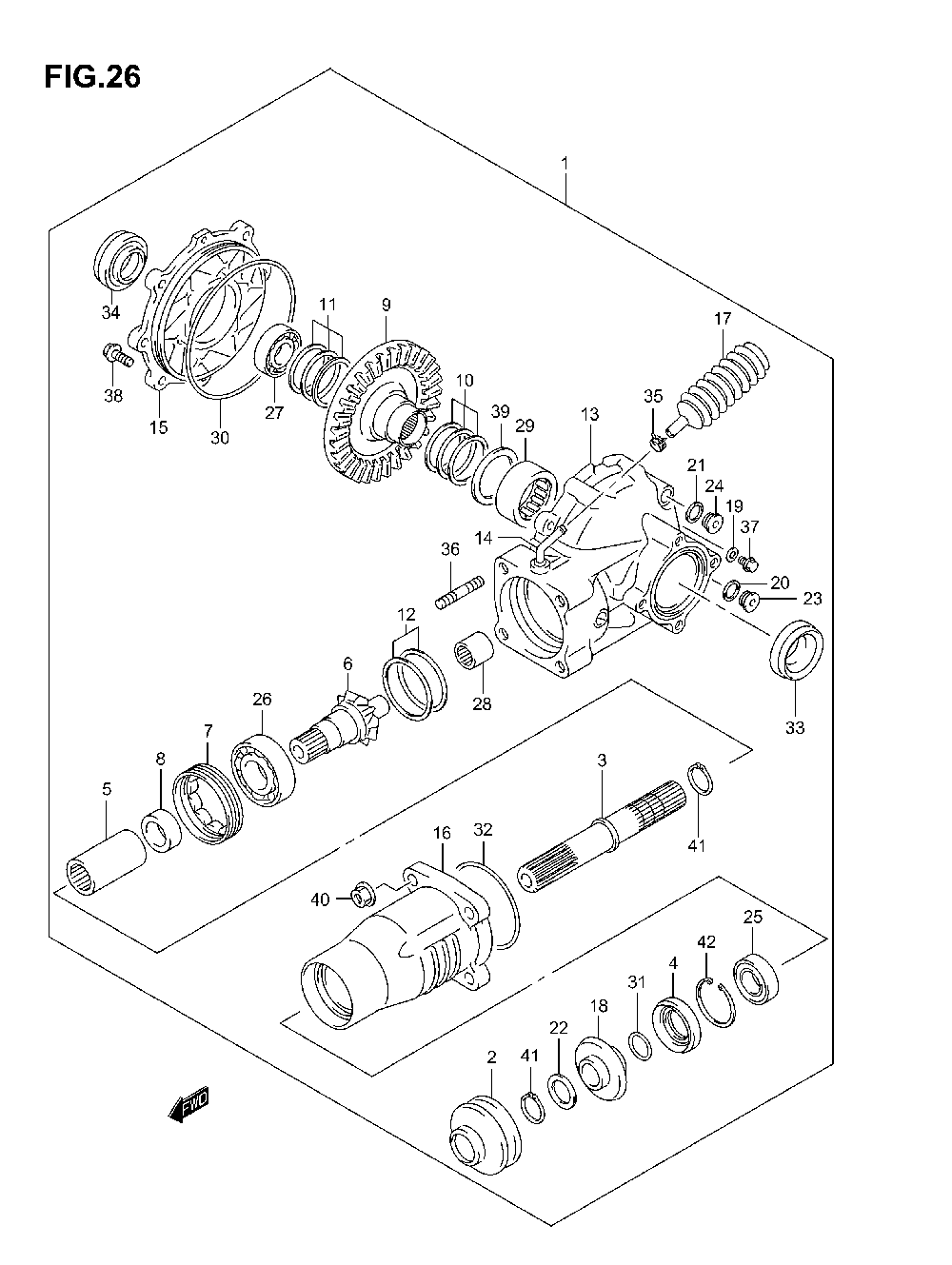

DIFFERENTIAL - REAR для Suzuki LT-F400F EIGER 4x4 MANUAL - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    27300-38861 GEAR SET, REAR FINAL
    GEAR SET, REAR FINAL
  • 2
    27153-44D80 BOOT, RR FINAL DRIVE SHAFT
    BOOT, RR FINAL DRIVE SHAFT
  • 3
    27155-38F00 SHAFT, REAR FINAL DRIVE
    SHAFT, REAR FINAL DRIVE
  • 4
    27156-38F00 SEAL, FINAL DRIVE BRG
    SEAL, FINAL DRIVE BRG
  • 5
    27157-38F00 JOINT, REAR FINAL DRIVE
    JOINT, REAR FINAL DRIVE
  • 6
    27311-38F00 GEAR, REAR FINAL DRIVE
    GEAR, REAR FINAL DRIVE
  • 7
    27312-38F00 STOPPER, FINAL DRIVE
    STOPPER, FINAL DRIVE
  • 8
    27316-38F00 SPACER, REAR FINAL DRIVE
    SPACER, REAR FINAL DRIVE
  • 9
    27321-38F00 GEAR, FINAL DRIVEN BEVEL
    GEAR, FINAL DRIVEN BEVEL
  • 10
    27326-09810 SHIM SET, FINAL DRIVEN LEFT HAND
    SHIM SET, FINAL DRIVEN LEFT HAND
  • 11
    27326-18810 SHIM SET, FINAL DRIVEN RIGHT HAND
    SHIM SET, FINAL DRIVEN RIGHT HAND
  • 12
    27445-24810 SHIM SET, FINAL DRIVE
    SHIM SET, FINAL DRIVE
  • 13
    27450-38F00 CASE, REAR FINAL GEAR
    CASE, REAR FINAL GEAR
  • 14
    09364-08009 UNION, BREATHER
    UNION, BREATHER
  • 15
    27461-38F00 CASE, REAR FINAL DRIVEN RIGHT HAND
    CASE, REAR FINAL DRIVEN RIGHT HAND
  • 16
    27471-38F50 HOUSING, RR FINAL DRIVE
    HOUSING, RR FINAL DRIVE
  • 17
    27491-38F00 CASE, BREATHER
    CASE, BREATHER
  • 18
    27590-38F00 COLLAR, OUTPUT OIL SEAL
    COLLAR, OUTPUT OIL SEAL
  • 19
    09168-06018 GASKET, OIL CHECK BOLT
    GASKET, OIL CHECK BOLT
  • 20
    09168-16002 GASKET, OIL DRAIN
    GASKET, OIL DRAIN
  • 21
    09168-16002 GASKET, OIL FILLER
    GASKET, OIL FILLER
  • 22
    09181-25223 WASHER, RR FINAL DRIVE
    WASHER, RR FINAL DRIVE
  • 23
    09248-16012 PLUG, OIL DRAIN
    PLUG, OIL DRAIN
  • 24
    09248-16012 PLUG, OIL FILLER
    PLUG, OIL FILLER
  • 25
    09262-25132 BEARING, REAR FINAL
    BEARING, REAR FINAL
  • 26
    09262-28014 BEARING, FINAL DRIVE GEAR
    BEARING, FINAL DRIVE GEAR
  • 27
    09262-45012 BEARING, FINAL DRIVEN RIGHT HAND
    BEARING, FINAL DRIVEN RIGHT HAND
  • 28
    09263-20089 BEARING, FINAL DRIVE PILOT
    BEARING, FINAL DRIVE PILOT
  • 29
    09263-40012 BEARING, FINAL DRIVEN LEFT HAND
    BEARING, FINAL DRIVEN LEFT HAND
  • 30
    09280-00036 O RING, BEARING CASE RIGHT HAND
    O RING, BEARING CASE RIGHT HAND
  • 31
    09280-24010 O RING, COLLAR OUTPUT ID:23.7,DD:2.4
    O RING, COLLAR OUTPUT ID:23.7,DD:2.4
  • 32
    09280-76008 O RING, RR FINAL HOUSING ID:74.0,DD:3.1
    O RING, RR FINAL HOUSING ID:74.0,DD:3.1
  • 33
    09283-38009 OIL SEAL, FINAL DRIVEN LEFT HAND 38X54X6.0
    OIL SEAL, FINAL DRIVEN LEFT HAND 38X54X6.0
  • 34
    09283-42011 OIL SEAL, FINAL DRIVEN RIGHT HAND 42X62X7.0
    OIL SEAL, FINAL DRIVEN RIGHT HAND 42X62X7.0
  • 35
    09401-08411 CLAMP
    CLAMP
  • 36
    01421-10303 BOLT, RR FINAL GEAR
    BOLT, RR FINAL GEAR
  • 37
    01550-06103 BOLT, OIL CHECK
    BOLT, OIL CHECK
  • 38
    01550-08253 BOLT, REAR FINAL GEAR
    BOLT, REAR FINAL GEAR
  • 39
    08211-40505 WASHER, FINAL DRIVEN LEFT HAND
    WASHER, FINAL DRIVEN LEFT HAND
  • 40
    08316-10103 NUT, REAR FINAL DRIVE
    NUT, REAR FINAL DRIVE
  • 41
    08331-31256 CIRCLIP, REAR FINAL DRIVE
    CIRCLIP, REAR FINAL DRIVE
  • 42
    08331-41526 CIRCLIP, REAR FINAL BEARING
    CIRCLIP, REAR FINAL BEARING
