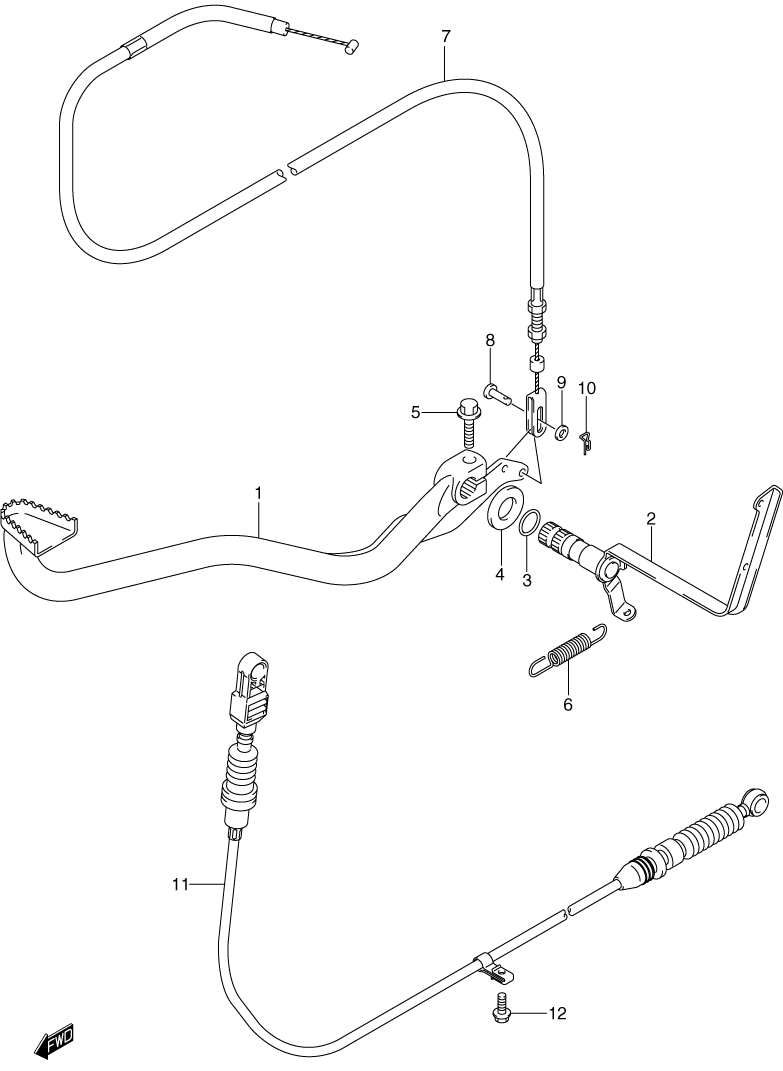

BRAKE - REAR PEDAL для Suzuki LT-A500F VINSON 4x4 AUTOMATIC - 2003 года выпуска`
-
№АртикулНазвание
-
143110-03G00 PEDAL, BRAKEPEDAL, BRAKE
-
2-243120-03G10 ARM, RODARM, ROD
-
309280-17002 O-RINGO-RING
-
409160-17050 WASHER (17X30X3)WASHER (17X30X3)
-
509103-08152 BOLT (8X25)BOLT (8X25)
-
609443-12019 SPRING, RETURNSPRING, RETURN
-
758810-03G00 CABLE, BRAKE (REAR)CABLE, BRAKE (REAR)
-
809200-06013 PINPIN
-
908322-01063 WASHERWASHER
-
1009385-06012 COTTER PINCOTTER PIN
-
1158670-03G00 CABLE, REAR FINAL LOCKCABLE, REAR FINAL LOCK
-
1201550-06203 BOLTBOLT
