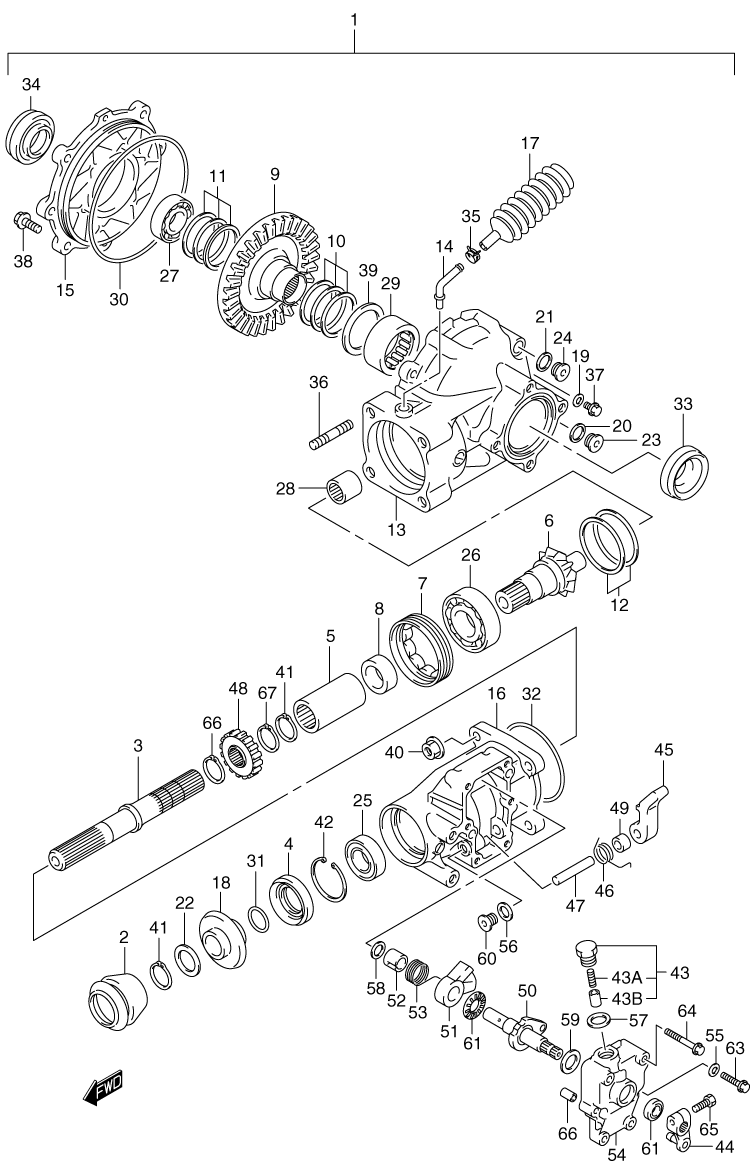

DIFFERENTIAL - REAR для Suzuki LT-A500F VINSON 4x4 AUTOMATIC - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    27300-38870 GEAR/CASE SET, FINAL BEVEL
    GEAR/CASE SET, FINAL BEVEL
  • 2
    27153-03G10 ...BOOT, REAR FINAL DRIVE SHAFT
    ...BOOT, REAR FINAL DRIVE SHAFT
  • 3
    27155-38F00 ...SHAFT, REAR FINAL DRIVE
    ...SHAFT, REAR FINAL DRIVE
  • 4
    27156-38F00 ...SEAL, FINAL DRIVE BEARING
    ...SEAL, FINAL DRIVE BEARING
  • 5
    27157-38F00 ...JOINT, REAR FINAL DRIVE
    ...JOINT, REAR FINAL DRIVE
  • 6
    27311-38F00 ...GEAR, FINAL DRIVE BEVEL (NT:10)
    ...GEAR, FINAL DRIVE BEVEL (NT:10)
  • 7
    27312-38F00 ...STOPPER, FINAL DRIVE
    ...STOPPER, FINAL DRIVE
  • 8
    27316-38F00 ...SPACER, REAR FINAL DRIVE
    ...SPACER, REAR FINAL DRIVE
  • 9
    27321-38F00 ...GEAR, FINAL DRIVEN BEVEL (NT:36)
    ...GEAR, FINAL DRIVEN BEVEL (NT:36)
  • 10
    27326-09810 ...SHIM SET, FINAL DRIVEN (LEFT) (T:0.30/0.35/0.40/0.50/0.60)
    ...SHIM SET, FINAL DRIVEN (LEFT) (T:0.30/0.35/0.40/0.50/0.60)
  • 11
    27326-18810 ...SHIM SET, FINAL DRIVEN (RIGHT) (T:0.30/0.35/0.40/0.50/0.60)
    ...SHIM SET, FINAL DRIVEN (RIGHT) (T:0.30/0.35/0.40/0.50/0.60)
  • 12
    27445-24810 ...SHIM SET, FINAL DRIVE (T:0.30/0.35/0.40/0.50/0.60)
    ...SHIM SET, FINAL DRIVE (T:0.30/0.35/0.40/0.50/0.60)
  • 13
    27450-38F00 ...CASE, REAR FINAL GEAR
    ...CASE, REAR FINAL GEAR
  • 14
    09364-08009 ......UNION, BREATHER
    ......UNION, BREATHER
  • 15
    27461-38F00 ...CASE, REAR FINAL DRIVEN (RIGHT)
    ...CASE, REAR FINAL DRIVEN (RIGHT)
  • 16
    27471-38F00 ...HOUSING, REAR FINAL DRIVE
    ...HOUSING, REAR FINAL DRIVE
  • 17
    27491-38F00 ...CASE, BREATHER
    ...CASE, BREATHER
  • 18
    27590-38F00 ...COLLAR.OUTPUT OIL SEAL
    ...COLLAR.OUTPUT OIL SEAL
  • 19
    09168-06018 ...GASKET, OIL CHECK BOLT (6.2X13X1.2)
    ...GASKET, OIL CHECK BOLT (6.2X13X1.2)
  • 20
    09168-16002 ...GASKET, OIL DRAIN (16X22X2.0)
    ...GASKET, OIL DRAIN (16X22X2.0)
  • 21
    09168-16002 ...GASKET, OIL FILLER (16X22X2.0)
    ...GASKET, OIL FILLER (16X22X2.0)
  • 22
    09181-25223 ...WASHER, REAR FINAL DRIVE (25X38X1.0)
    ...WASHER, REAR FINAL DRIVE (25X38X1.0)
  • 23
    09248-16012 ...PLUG, OIL DRAIN
    ...PLUG, OIL DRAIN
  • 24
    09248-16012 ...PLUG, OIL FILLER
    ...PLUG, OIL FILLER
  • 25
    09262-25132 ...BEARING, REAR FINAL (25X52X15)
    ...BEARING, REAR FINAL (25X52X15)
  • 26
    09262-28014 ...BEARING, FINAL DRIVE GEAR (28X68X18)
    ...BEARING, FINAL DRIVE GEAR (28X68X18)
  • 27
    09262-45012 ...BEARING, FINAL DRIVEN (RIGHT) (45X75X16)
    ...BEARING, FINAL DRIVEN (RIGHT) (45X75X16)
  • 28
    09263-20089 ...BEARING, FINAL DRIVE PILOT (20X28X23)
    ...BEARING, FINAL DRIVE PILOT (20X28X23)
  • 29
    09263-40012 ...BEARING, FINAL DRIVEN (LEFT) (40X50X15)
    ...BEARING, FINAL DRIVEN (LEFT) (40X50X15)
  • 30
    09280-00036 ...O-RING, BEARING CASE (RIGHT) (D:2.4,ID:15.7)
    ...O-RING, BEARING CASE (RIGHT) (D:2.4,ID:15.7)
  • 31
    09280-24010 ...O-RING, COLLAR OUTPUT (D:2.4,ID:23.7)
    ...O-RING, COLLAR OUTPUT (D:2.4,ID:23.7)
  • 32
    09280-76008 ...O-RING, REAR FINAL HOUSING (D:3.1,ID:74.0)
    ...O-RING, REAR FINAL HOUSING (D:3.1,ID:74.0)
  • 33
    09283-38009 ...OIL SEAL, FINAL DRIVEN (LEFT) (38X54X6.0)
    ...OIL SEAL, FINAL DRIVEN (LEFT) (38X54X6.0)
  • 34
    09283-42011 ...OIL SEAL, FINAL DRIVEN (RIGHT) (42X62X7.0)
    ...OIL SEAL, FINAL DRIVEN (RIGHT) (42X62X7.0)
  • 35
    09401-08411 ...CLAMP
    ...CLAMP
  • 36
    01421-10303 ...BOLT, REAR FINAL GEAR
    ...BOLT, REAR FINAL GEAR
  • 37
    01550-06103 ...BOLT, OIL CHECK
    ...BOLT, OIL CHECK
  • 38
    01550-08253 ...BOLT, REAR FINAL GEAR
    ...BOLT, REAR FINAL GEAR
  • 39
    08211-40505 ...WASHER, FINAL DRIVEN (LEFT)
    ...WASHER, FINAL DRIVEN (LEFT)
  • 40
    08316-10103 ...NUT, REAR FINAL DRIVE
    ...NUT, REAR FINAL DRIVE
  • 41
    08331-31256 ...CIRCLIP
    ...CIRCLIP
  • 42
    08331-41526 ...CIRCLIP, REAR FINAL BEARING
    ...CIRCLIP, REAR FINAL BEARING
  • 43
    25350-09F50 ...STOPPER, PARKING CAM
    ...STOPPER, PARKING CAM
  • 43A
    29613-44D00 ......SPRING
    ......SPRING
  • 43B
    25351-44D50 ......STOPPER
    ......STOPPER
  • 44
    25360-38F00 ...ARM SELECT
    ...ARM SELECT
  • 45
    25932-38F10 ...PAWL, PARKING LOCK
    ...PAWL, PARKING LOCK
  • 46
    25933-38F10 ...SPRING, PARKING
    ...SPRING, PARKING
  • 47
    25934-38F10 ...SHAFT, PARKING PAWL
    ...SHAFT, PARKING PAWL
  • 48
    25935-38F10 ...GEAR, PARKING LOCK (NT:24)
    ...GEAR, PARKING LOCK (NT:24)
  • 49
    25936-38F10 ...SPACER, PARKING PAWL
    ...SPACER, PARKING PAWL
  • 50
    25940-38F00 ......SHAFT, PARKING LOCK CAM
    ......SHAFT, PARKING LOCK CAM
  • 51
    25942-38F00 ...CAM, PARKING LOCK SHAFT
    ...CAM, PARKING LOCK SHAFT
  • 52
    25944-38F00 ...GUIDE, PARKING PAWL
    ...GUIDE, PARKING PAWL
  • 53
    25984-38F00 ...SPRING, PARKIG CAM
    ...SPRING, PARKIG CAM
  • 54
    27475-38F00 ...COVER, REAR FINAL DOOR
    ...COVER, REAR FINAL DOOR
  • 55
    09168-06024 ...GASKET, REAR FINAL COVER
    ...GASKET, REAR FINAL COVER
  • 56
    09168-10007 ...GASKET, PARKING PAWL
    ...GASKET, PARKING PAWL
  • 57
    09168-14002 ...GASKET, CAM SHAFT STOPPER
    ...GASKET, CAM SHAFT STOPPER
  • 58
    09181-12139 ...WASHER, PARKING (RIGHT) (12X18X1.0)
    ...WASHER, PARKING (RIGHT) (12X18X1.0)
  • 59
    09181-14195 ...WASHER, PARKING (LEFT) (14X24X1.0)
    ...WASHER, PARKING (LEFT) (14X24X1.0)
  • 60
    09248-10007 ...PLUG, PARKING PAWL
    ...PLUG, PARKING PAWL
  • 61
    09263-15003 ...BEARING, PARKING CAM (15X28X2)
    ...BEARING, PARKING CAM (15X28X2)
  • 62
    09283-14006 ...SEAL, PARKING (14X22X6)
    ...SEAL, PARKING (14X22X6)
  • 63
    01547-06253 ...BOLT, REAR FINAL HOUSING
    ...BOLT, REAR FINAL HOUSING
  • 64
    01547-06403 ...BOLT, REAR FINAL HOUSING
    ...BOLT, REAR FINAL HOUSING
  • 65
    01547-06203 ...BOLT, SELECT ARM
    ...BOLT, SELECT ARM
  • 66
    04211-09149 ...PIN, REAR FINAL COVER
    ...PIN, REAR FINAL COVER
  • 67
    08331-31256 ...CIRCLIP, PARKING LOCK GEAR
    ...CIRCLIP, PARKING LOCK GEAR
