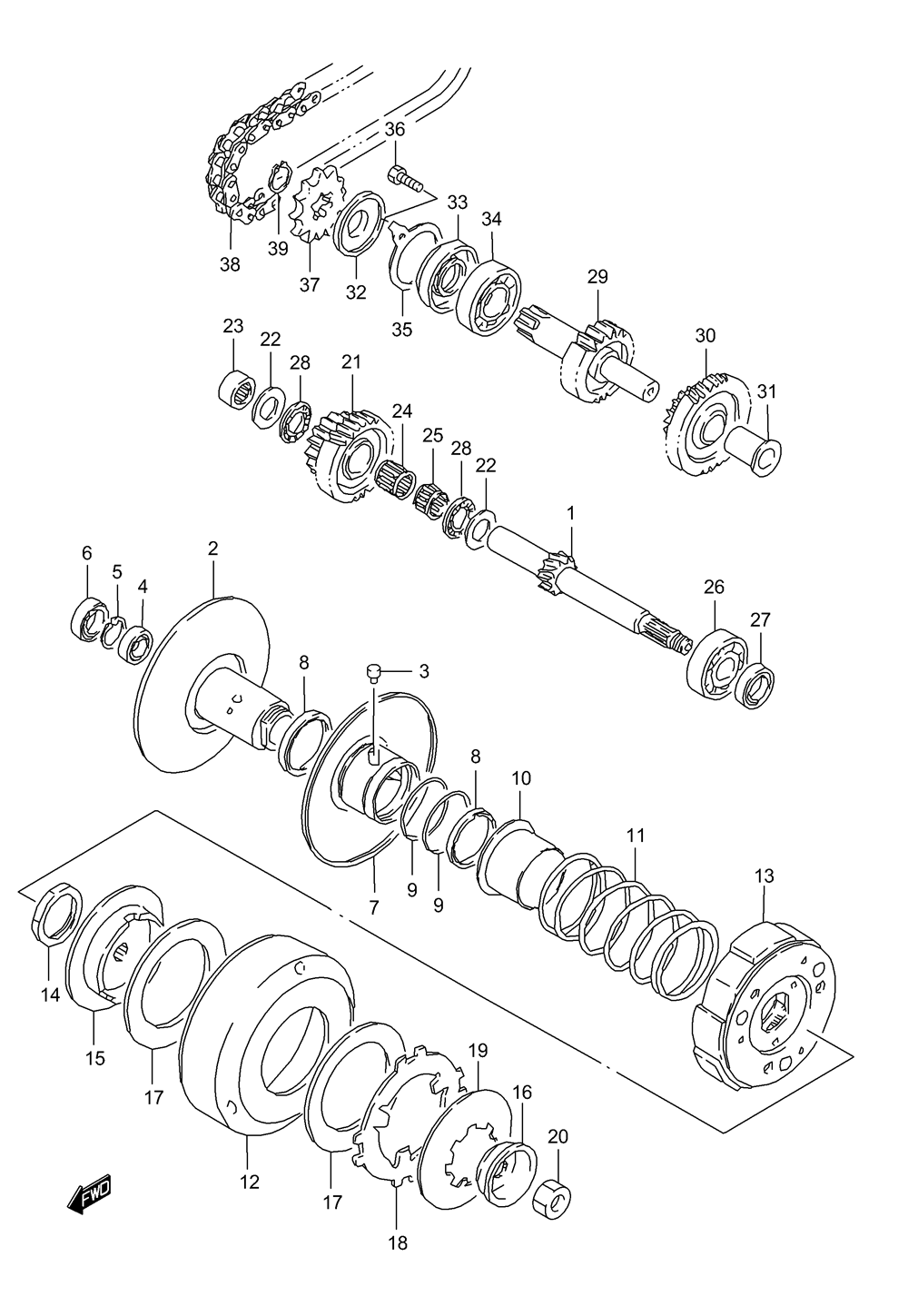

TRANSMISSION (2) для Suzuki LT80K QUADSPORT - 2002 года выпуска`
-
№АртикулНазвание
-
124131-29A03 COUNTER SHAFT (NT:12)COUNTER SHAFT (NT:12)
-
221210-03A21 FACE, FIXED DRIVENFACE, FIXED DRIVEN
-
309201-06005 PINPIN
-
409262-12014 BEARING (12X24X6)BEARING (12X24X6)
-
508331-41246 CIRCLIPCIRCLIP
-
609262-15018 BEARING (15X28X7)BEARING (15X28X7)
-
721240-40B00 FACE, MOVABLE DRIVENFACE, MOVABLE DRIVEN
-
809283-34007 OIL SEAL (34X41X4)OIL SEAL (34X41X4)
-
909280-41005 O RING (D:1.5,ID:39.7)O RING (D:1.5,ID:39.7)
-
1021471-03A11 SLEEVE, MOVABLE DRIVEN FACESLEEVE, MOVABLE DRIVEN FACE
-
1109440-46005 SPRINGSPRING
-
1221220-29A01 HOUSING, CLUTCHHOUSING, CLUTCH
-
1321501-03A21 CLUTCH ASSYCLUTCH ASSY
-
1409152-28001 NUT 28MMNUT 28MM
-
1521411-29A01 HUB, LIMITER CLUTCHHUB, LIMITER CLUTCH
-
1621412-29A00 STOPPER, LIMITER CLUTCHSTOPPER, LIMITER CLUTCH
-
1721441-29A01 PLATE, FRICTIONPLATE, FRICTION
-
1821461-29A01 PLATE, PRESSUREPLATE, PRESSURE
-
1909164-30003 SPRINGSPRING
-
2009140-10035 NUT 10MMNUT 10MM
-
2124271-40B01 GEAR, FINAL DRIVE (NT:27/14)GEAR, FINAL DRIVE (NT:27/14)
-
2209181-15223 THRUST WASHER (15X28X1)THRUST WASHER (15X28X1)
-
2309263-15009 BEARING (15X22X15)BEARING (15X22X15)
-
2409263-15035 BEARING, RIGHT HAND (15X20X18)BEARING, RIGHT HAND (15X20X18)
-
2509263-15038 BEARING, LEFT HAND (15X20X13)BEARING, LEFT HAND (15X20X13)
-
2609262-15027 BEARING (15X42X13)BEARING (15X42X13)
-
2709283-15003 OIL SEAL (15X25X5)OIL SEAL (15X25X5)
-
2809263-15003 BEARING (15X28X2)BEARING (15X28X2)
-
2924141-40B00 SHAFT, DRIVE (NT:19)SHAFT, DRIVE (NT:19)
-
3024290-29A01 GEAR, IDLER DRIVE NO.2GEAR, IDLER DRIVE NO.2
-
3109301-15002 BUSHBUSH
-
3224142-40B00 OIL SEALOIL SEAL
-
3309283-20047 OIL SEAL (20X47X12)OIL SEAL (20X47X12)
-
3409262-20121 BEARING (20X47X14)BEARING (20X47X14)
-
3524751-40B00 RETAINERRETAINER
-
3601500-06163 SCREWSCREW
-
3727511-40B10 SPROCKET, ENGINE (NT:10)SPROCKET, ENGINE (NT:10)
-
3827600-34A40-036 CHAIN ASSY (DID 520VSX36LE)CHAIN ASSY (DID 520VSX36LE)
-
3909380-20009 CIRCLIPCIRCLIP
