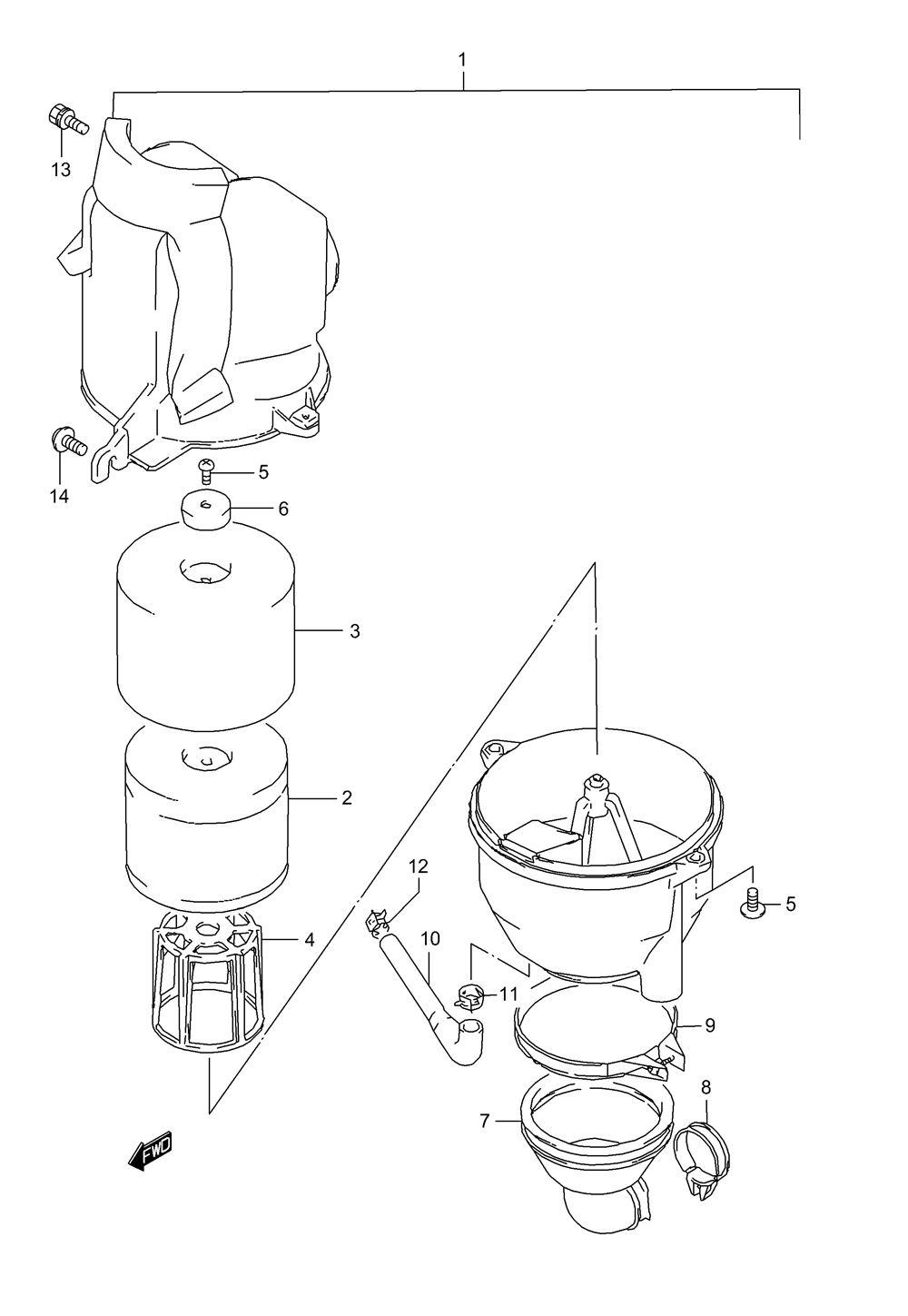

AIR CLEANER для Suzuki LT80K QUADSPORT - 2002 года выпуска
-
№АртикулНазвание
-
113700-40B00 CLEANER ASSY, AIRCLEANER ASSY, AIR
-
213780-40B00 FILTERFILTER
-
313784-40B00 FILTER, SUBFILTER, SUB
-
413791-40B00 HOLDER, FILTERHOLDER, FILTER
-
502142-05123 SCREW 5X12SCREW 5X12
-
613792-13A01 WASHERWASHER
-
713881-40B00 TUBE, OUTLETTUBE, OUTLET
-
809402-36306 CLAMPCLAMP
-
909402-92207 CLAMPCLAMP
-
1013870-21308 TUBE, DRAINTUBE, DRAIN
-
1109401-13417 CLIPCLIP
-
1209401-11413 CLIPCLIP
-
1301570-06123 BOLTBOLT
-
1409136-06009 SCREW (6X20)SCREW (6X20)
