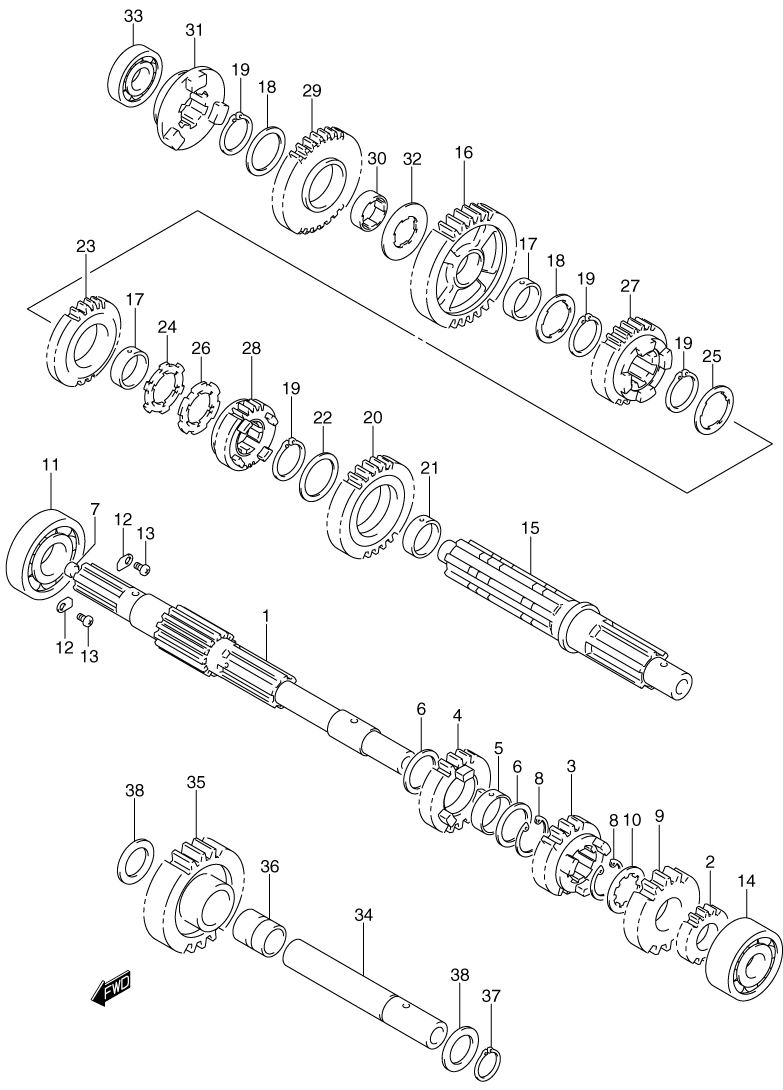

TRANSMISSION (1) для Suzuki LT-F400K EIGER 2WD MANUAL - 2002 года выпуска`
-
№АртикулНазвание
-
124121-38F50 COUNTERSHAFT (NT:12)COUNTERSHAFT (NT:12)
-
224221-18A00 GEAR, 2ND DRIVE (NT:15)GEAR, 2ND DRIVE (NT:15)
-
324231-18A02 GEAR, 3RD DRIVE (NT:18)GEAR, 3RD DRIVE (NT:18)
-
424241-18A01 GEAR, 4TH DRIVE (NT:21)GEAR, 4TH DRIVE (NT:21)
-
509300-22008 BUSHBUSH
-
609181-22167 WASHER (22X30X1.0)WASHER (22X30X1.0)
-
709241-10003 PLUG, COUNTER SHAFTPLUG, COUNTER SHAFT
-
809380-22006 CIRCLIPCIRCLIP
-
924251-18A02 GEAR, 5TH DRIVE (NT:22)GEAR, 5TH DRIVE (NT:22)
-
1009167-22013 WASHER (22.1X27X0.5)WASHER (22.1X27X0.5)
-
1109262-22018 BEARING, RH (22X50X14)BEARING, RH (22X50X14)
-
1224741-21A00 RETAINERRETAINER
-
1309125-06110 SCREW (6X12)SCREW (6X12)
-
1409267-17002 BEARING, MIDDLE (17X40X17.5)BEARING, MIDDLE (17X40X17.5)
-
1524131-38F50 DRIVESHAFTDRIVESHAFT
-
1624311-18A02 GEAR, 1ST DRIVEN (NT:37)GEAR, 1ST DRIVEN (NT:37)
-
1724332-24510 BUSHBUSH
-
1809167-25016 LOCK WASHERLOCK WASHER
-
1909380-25003 CIRCLIPCIRCLIP
-
2024321-18A01 GEAR, 2ND DRIVEN (NT:29)GEAR, 2ND DRIVEN (NT:29)
-
2109300-25020 BUSHBUSH
-
2208211-25351 WASHERWASHER
-
2324331-19B01 GEAR, 3RD DRIVEN (NT:25)GEAR, 3RD DRIVEN (NT:25)
-
2409169-25001 LOCK WASHERLOCK WASHER
-
2509167-25016 LOCK WASHER, RHLOCK WASHER, RH
-
2609167-25013 LOCK WASHER, LHLOCK WASHER, LH
-
2724341-18A02 GEAR, 4TH DRIVEN (NT:23)GEAR, 4TH DRIVEN (NT:23)
-
2824351-18A02 GEAR, 5TH DRIVEN (NT:21)GEAR, 5TH DRIVEN (NT:21)
-
2924571-38F50 GEAR, REVERSE DRIVEN (NT:34)GEAR, REVERSE DRIVEN (NT:34)
-
3024333-18A00 BUSHBUSH
-
3124581-38F50 DOG, REVERSEDOG, REVERSE
-
3209167-25017 WASHER (25.1X40X1.5)WASHER (25.1X40X1.5)
-
3309262-17026 BEARING, RH (17X35X10)BEARING, RH (17X35X10)
-
3424551-38F50 SHAFT, REVERSE IDLESHAFT, REVERSE IDLE
-
3524561-19B00 GEAR, REVERSE IDLE (NT:29)GEAR, REVERSE IDLE (NT:29)
-
3609300-17010 BUSHBUSH
-
3708331-31176 CIRCLIPCIRCLIP
-
3809181-17195 WASHER (17X28X1.0)WASHER (17X28X1.0)
