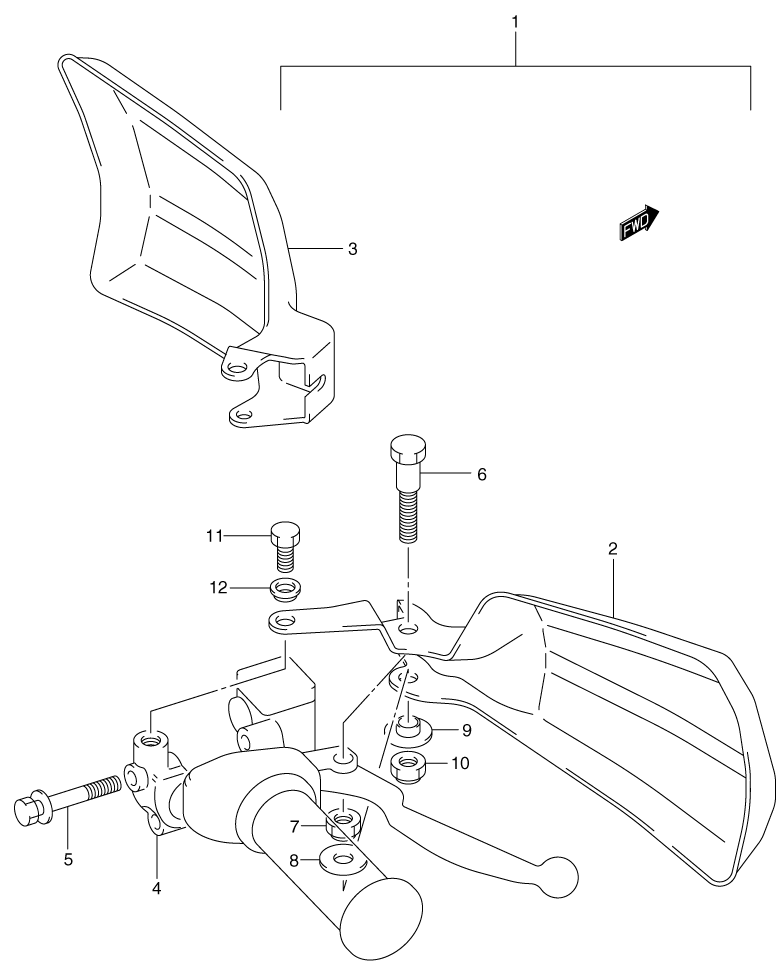

HANDLEBAR - KNUCKLE COVER (OPTIONAL) для Suzuki LT-F400K EIGER 2WD MANUAL - 2002 года выпуска`
-
№АртикулНазвание
-
1-157300-19811-YT8 COVER SET, KNUCKLE (GREEN)COVER SET, KNUCKLE (GREEN)
-
1-257300-19811-YT9 COVER SET, KNUCKLE (RED)COVER SET, KNUCKLE (RED)
-
2-157341-19B50-YT8 ...COVER, KNUCKLE (RIGHT/GREEN)...COVER, KNUCKLE (RIGHT/GREEN)
-
2-257341-19B50-YT9 ...COVER, KNUCKLE (RIGHT/RED)...COVER, KNUCKLE (RIGHT/RED)
-
3-157541-19B50-YT8 ...COVER, KNUCKLE (LEFT/GREEN)...COVER, KNUCKLE (LEFT/GREEN)
-
3-257541-19B50-YT9 ...COVER, KNUCKLE (LEFT/RED)...COVER, KNUCKLE (LEFT/RED)
-
459671-44300 ...HOLDER, MASTER CYLINDER...HOLDER, MASTER CYLINDER
-
501560-06403 ...BOLT...BOLT
-
657431-14A00 ...BOLT, LEVER PIVOT (RIGHT)...BOLT, LEVER PIVOT (RIGHT)
-
709159-06015 ...NUT...NUT
-
809160-06019 ...WASHER...WASHER
-
909169-06033 ...WASHER...WASHER
-
1009159-06015 ...NUT...NUT
-
1109104-10036 ...BOLT, MIRROR STAY...BOLT, MIRROR STAY
-
1209169-10010 ...WASHER...WASHER
