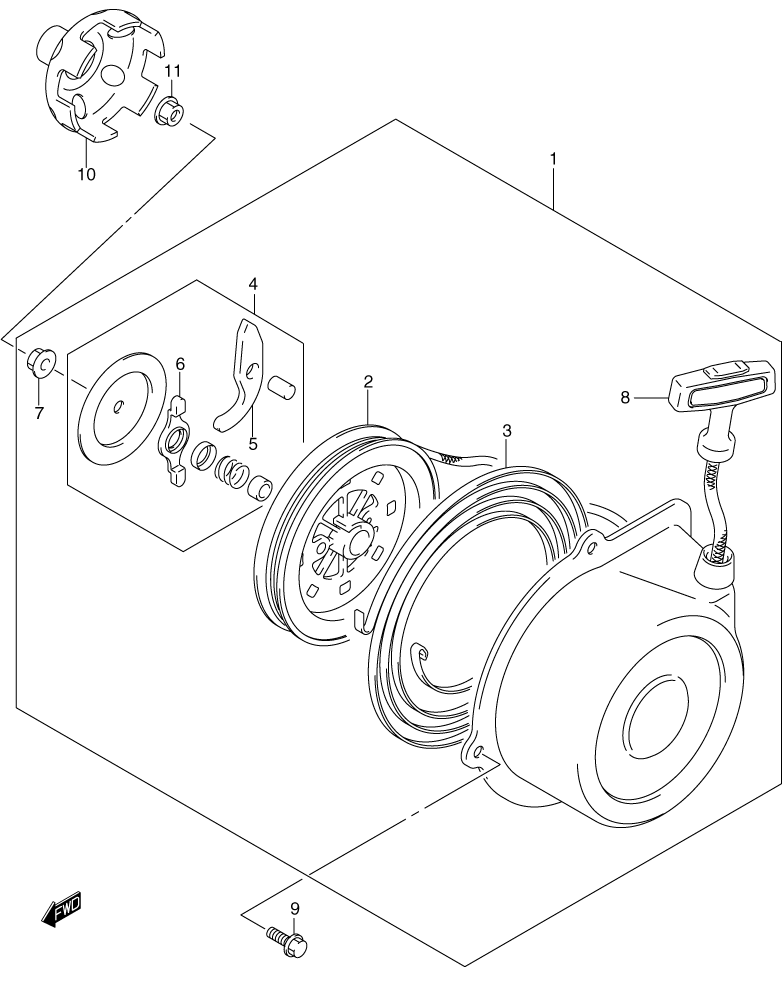

STARTER - RECOIL для Suzuki LT-F400K EIGER 2WD MANUAL - 2002 года выпуска`
-
№АртикулНазвание
-
118100-24503 STARTER ASSY., RECOILSTARTER ASSY., RECOIL
-
218120-24500 ...REEL...REEL
-
318142-24400 ...SPRING, SPIRAL...SPRING, SPIRAL
-
418130-24400 ...RATCHET SET...RATCHET SET
-
518131-24411 ......RATCHET......RATCHET
-
618132-24400 ......GUIDE, RATCHET......GUIDE, RATCHET
-
708316-10063 ...NUT...NUT
-
818200-24501 ...ROPE ASSY....ROPE ASSY.
-
909103-06236 BOLTBOLT
-
1018410-09F02 CUP, STARTERCUP, STARTER
-
1108316-10103 NUTNUT
