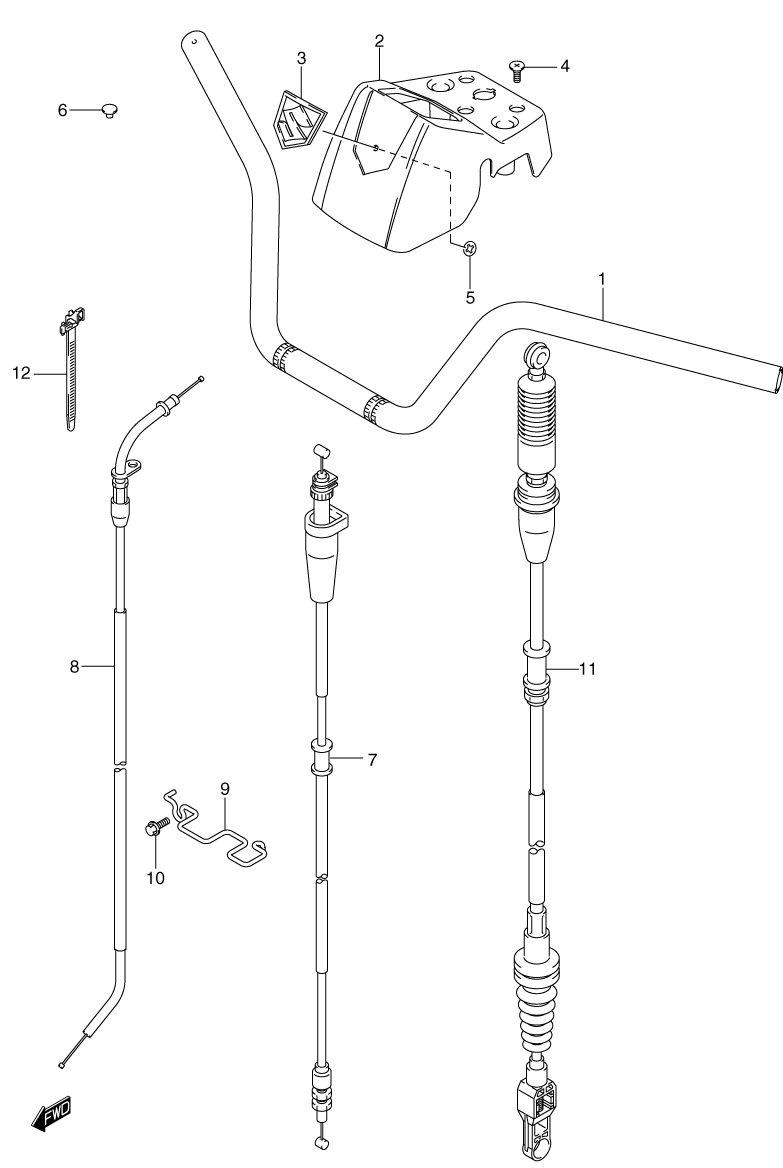

HANDLEBAR W/ CABLES для Suzuki LT-A400K EIGER 2WD AUTOMATIC - 2002 года выпуска`
-
№АртикулНазвание
-
156111-38F00 HANDLE BARHANDLE BAR
-
256171-38F00 COVER, HEADCOVER, HEAD
-
368151-38F00 EMBLEMEMBLEM
-
409139-06072 SCREW, COVERSCREW, COVER
-
509148-05006 NUTNUT
-
609250-05007 CAPCAP
-
758300-38F00 CABLE ASSY., THROTTLECABLE ASSY., THROTTLE
-
858410-38F00 CABLE, STARTERCABLE, STARTER
-
958641-38F00 GUIDE, CABLEGUIDE, CABLE
-
1001550-06123 BOLTBOLT
-
1158670-38F00 CABLE, REAR FINAL LOCKCABLE, REAR FINAL LOCK
-
1209407-12407 CLAMPCLAMP
