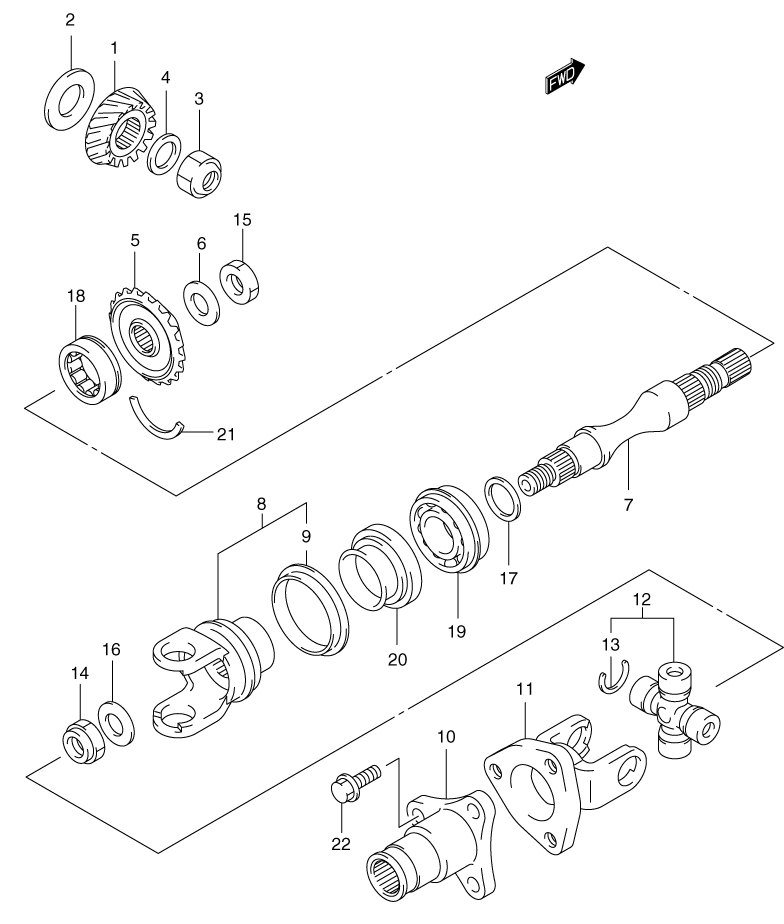

DRIVESHAFT - REAR для Suzuki LT-A400K EIGER 2WD AUTOMATIC - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    24911-38F00 GEAR, SEC DRIVE BEVEL
    GEAR, SEC DRIVE BEVEL
  • 2
    24935-19810 SHIM SET, SEC DRIVE BEVEL GR (T:0.25/0.30/0.35/0.90/1.00/1.05/1.10/1.15)
    SHIM SET, SEC DRIVE BEVEL GR (T:0.25/0.30/0.35/0.90/1.00/1.05/1.10/1.15)
  • 3
    09140-20012 NUT, SEC DRIVE BEVEL GR
    NUT, SEC DRIVE BEVEL GR
  • 4
    09181-20223 WASHER, SEC DRIVE BEVEL GR (20X32X1)
    WASHER, SEC DRIVE BEVEL GR (20X32X1)
  • 5
    24921-38F00 GEAR, SEC DRIVEN BEVEL
    GEAR, SEC DRIVEN BEVEL
  • 6
    08211-22362 WASHER, SEC DRIVEN GEAR
    WASHER, SEC DRIVEN GEAR
  • 7
    24971-38F00 SHAFT, SEC DRIVEN OUTPUT RR
    SHAFT, SEC DRIVEN OUTPUT RR
  • 8
    27130-03G00 YOKE, RR DRIVE OUTPUT
    YOKE, RR DRIVE OUTPUT
  • 9
    27592-38F00 ...PLATE, OUTPUT
    ...PLATE, OUTPUT
  • 10
    27150-38F00 SHAFT, PROPELLER RR
    SHAFT, PROPELLER RR
  • 11
    27161-38F20 YOKE, PROP SHAFT JOINT RR
    YOKE, PROP SHAFT JOINT RR
  • 12
    27200-19810 JOINT SET, UNIVERSAL
    JOINT SET, UNIVERSAL
  • 13
    09380-20016 ...CIRCLIP, UNIVERSAL OUTPUT RR
    ...CIRCLIP, UNIVERSAL OUTPUT RR
  • 14
    09159-16003 NUT, REAR DRIVE OUTPUT YOKE
    NUT, REAR DRIVE OUTPUT YOKE
  • 15
    09159-22005 NUT, SEC DRIVEN GEAR
    NUT, SEC DRIVEN GEAR
  • 16
    09160-16026 WASHER, REAR OUTPUT YOKE (16X30X3)
    WASHER, REAR OUTPUT YOKE (16X30X3)
  • 17-1
    09181-25051 SHIM, SEC DRIVEN (25X34X0.6)
    SHIM, SEC DRIVEN (25X34X0.6)
  • 17-2
    09181-25052 SHIM, SEC DRIVEN (25X34X0.65)
    SHIM, SEC DRIVEN (25X34X0.65)
  • 17-3
    09181-25053 SHIM, SEC DRIVEN (25X34X0.70)
    SHIM, SEC DRIVEN (25X34X0.70)
  • 17-4
    09181-25054 SHIM, SEC DRIVEN (25X34X0.75)
    SHIM, SEC DRIVEN (25X34X0.75)
  • 17-5
    09181-25055 SHIM, SEC DRIVEN (25X34X0.80)
    SHIM, SEC DRIVEN (25X34X0.80)
  • 17-6
    09181-25056 SHIM, SEC DRIVEN (25X34X0.85)
    SHIM, SEC DRIVEN (25X34X0.85)
  • 17-7
    09181-25057 SHIM, SEC DRIVEN (25X34X0.90)
    SHIM, SEC DRIVEN (25X34X0.90)
  • 17-8
    09181-25058 SHIM, SEC DRIVEN (25X34X0.95)
    SHIM, SEC DRIVEN (25X34X0.95)
  • 17-9
    09181-25059 SHIM, SEC DRIVEN (25X34X1.00)
    SHIM, SEC DRIVEN (25X34X1.00)
  • 17-10
    09181-25060 SHIM, SEC DRIVEN (25X34X1.05)
    SHIM, SEC DRIVEN (25X34X1.05)
  • 17-11
    09181-25061 SHIM, SEC DRIVEN (25X34X1.10)
    SHIM, SEC DRIVEN (25X34X1.10)
  • 17-12
    09181-25062 SHIM, SEC DRIVEN (25X34X1.15)
    SHIM, SEC DRIVEN (25X34X1.15)
  • 17-13
    09181-25063 SHIM, SEC DRIVEN (25X34X1.20)
    SHIM, SEC DRIVEN (25X34X1.20)
  • 18
    09263-30050 BEARING, SEC DRIVEN GEAR,M (30X50X17)
    BEARING, SEC DRIVEN GEAR,M (30X50X17)
  • 19
    09267-25006 BEARING, SEC DRIVEN OUTPUT SFT REAR (25X52X20.6)
    BEARING, SEC DRIVEN OUTPUT SFT REAR (25X52X20.6)
  • 20
    09283-34008 OIL SEAL, DRIVEN SFT, REAR (34X52X9)
    OIL SEAL, DRIVEN SFT, REAR (34X52X9)
  • 21
    09390-50002 RING, SEC DRIVEN BRG,M
    RING, SEC DRIVEN BRG,M
  • 22
    01550-10203 BOLT, PROP SHAFT RR
    BOLT, PROP SHAFT RR
