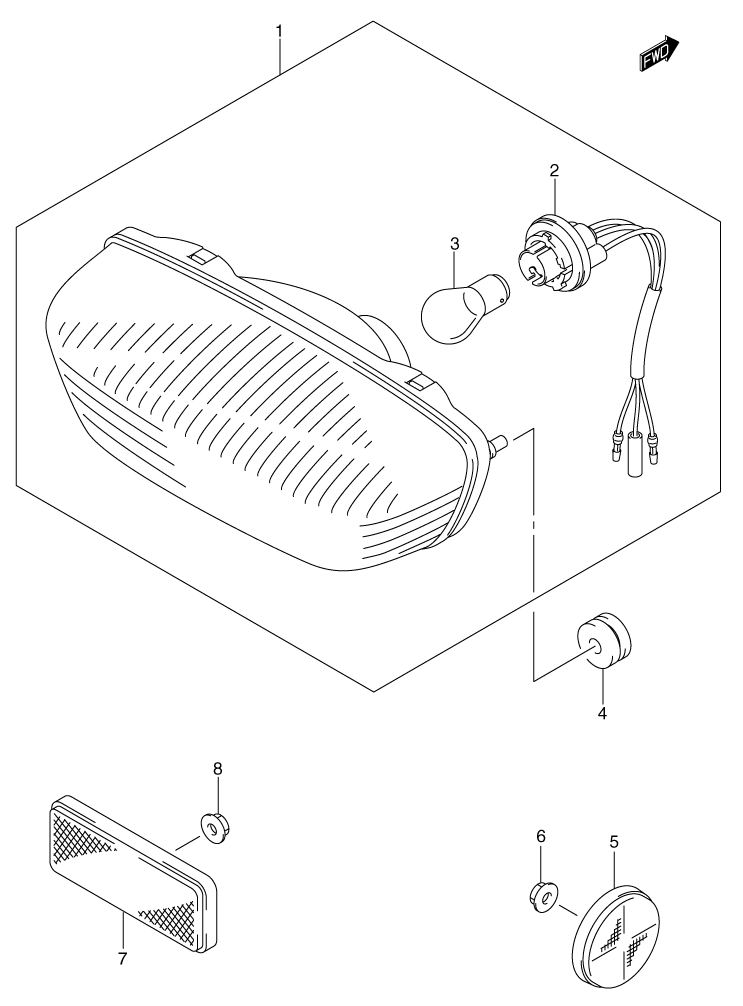

TAILLIGHT ASSY. для Suzuki LT-A400FK EIGER 4x4 AUTOMATIC - 2002 года выпуска`
-
№АртикулНазвание
-
135710-03G00 LAMP ASSY., TAILLAMP ASSY., TAIL
-
235718-03G00 ...SOCKET AND CORD ASSY....SOCKET AND CORD ASSY.
-
309471-12083 ...BULB (12V,21/5W)...BULB (12V,21/5W)
-
409320-06023 CUSHIONCUSHION
-
535970-14A10 REFLECTOR ASSY., REAR SIDE (CANADA)REFLECTOR ASSY., REAR SIDE (CANADA)
-
608316-10053 NUT (CANADA)NUT (CANADA)
-
735970-07F00 REFLECTOR ASSY., REAR (CANADA)REFLECTOR ASSY., REAR (CANADA)
-
808316-10053 NUT (CANADA)NUT (CANADA)
