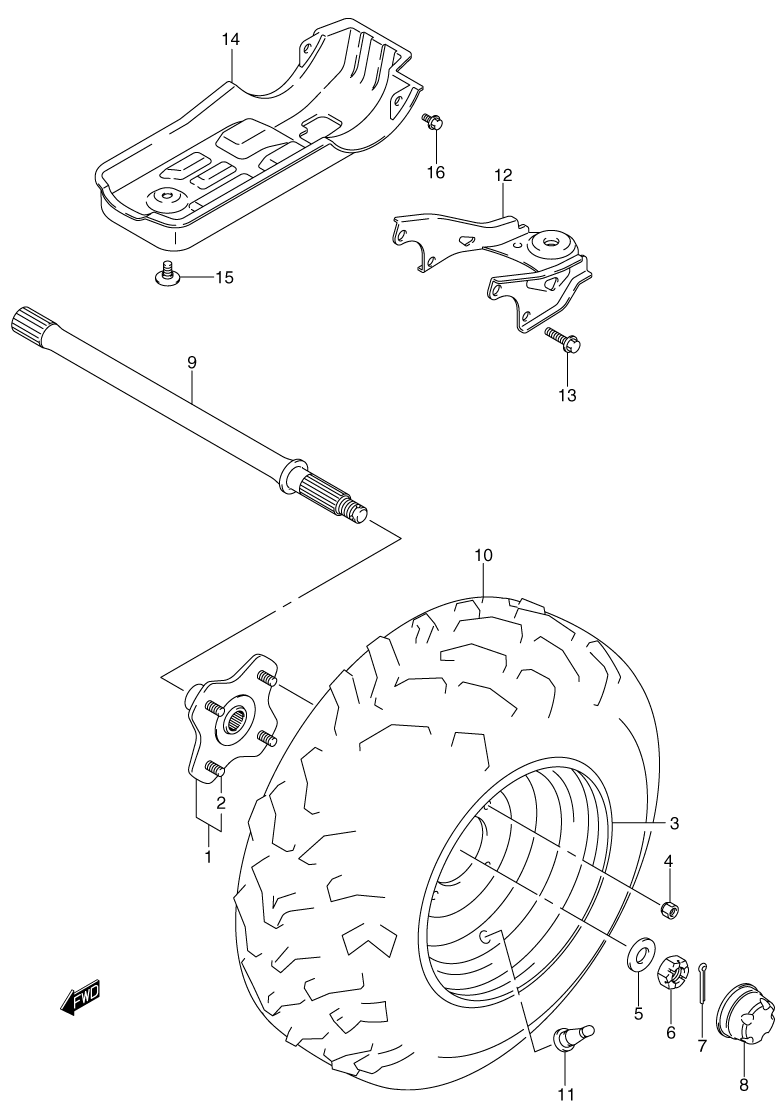

WHEEL - LEFT REAR W/ AXLE для Suzuki LT-A400FK EIGER 4x4 AUTOMATIC - 2002 года выпуска`
-
№АртикулНазвание
-
164110-38F00 HUB, REAR WHEEL (LEFT)HUB, REAR WHEEL (LEFT)
-
209119-10049 ...BOLT (10X30)...BOLT (10X30)
-
365310-38F00-YL8 RIM, REAR WHEEL (12X7.5AT) (SILVER)RIM, REAR WHEEL (12X7.5AT) (SILVER)
-
409140-10021 NUTNUT
-
509164-18004 WASHERWASHER
-
609141-18008 NUT, HUBNUT, HUB
-
704111-40408 COTTER PINCOTTER PIN
-
854725-09F01 CAP, WHEEL CENTERCAP, WHEEL CENTER
-
964712-38F10 AXLE, REAR (LEFT)AXLE, REAR (LEFT)
-
1065110-38F00 TIRE, REARTIRE, REAR
-
1143130-24A00 VALVE ASSY., WHEEL RIM,TR412VALVE ASSY., WHEEL RIM,TR412
-
1295210-38F00 PLATE, TRAILER TOWPLATE, TRAILER TOW
-
1301550-10353 BOLTBOLT
-
1461391-38F00 PROTECTOR, FINAL CASEPROTECTOR, FINAL CASE
-
1561393-09F00 BOLT, FRONTBOLT, FRONT
-
1609111-06061 BOLT, REARBOLT, REAR
