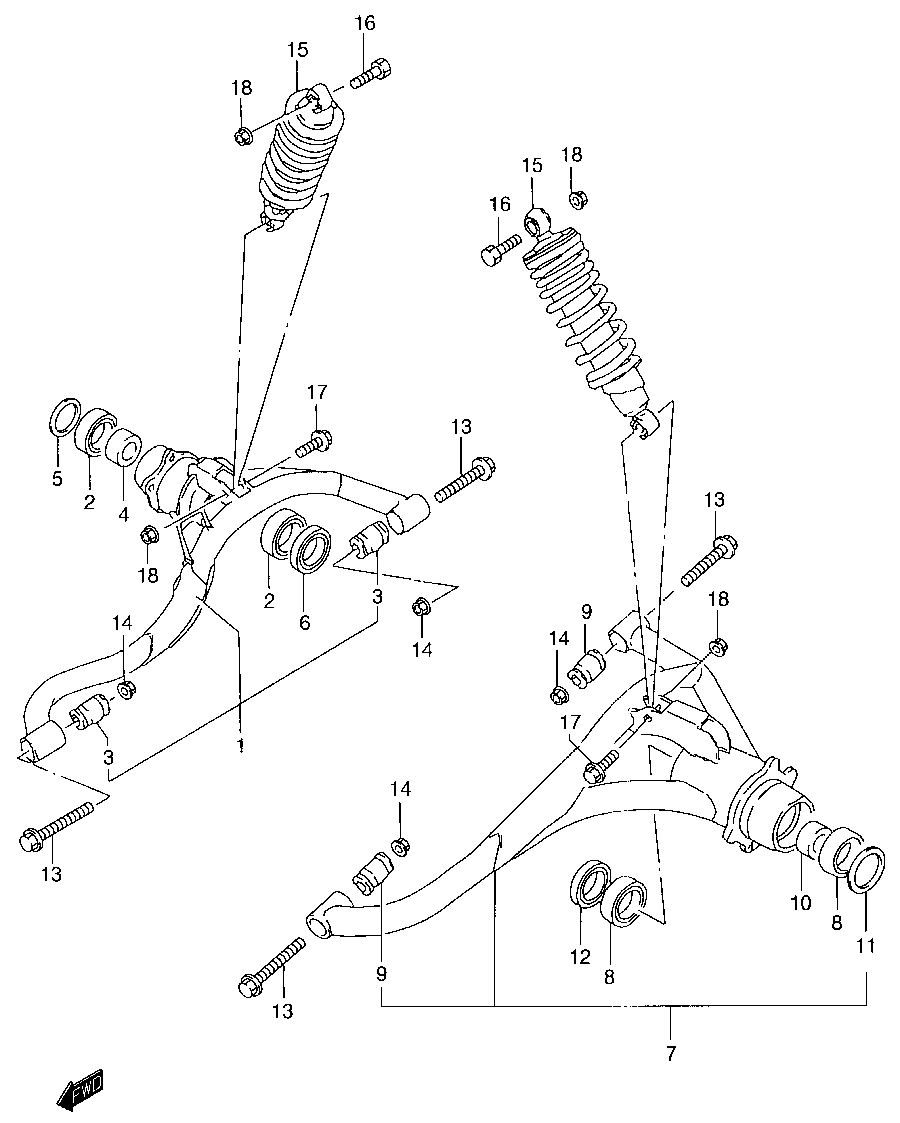

SUSPENSION - REAR ARM W/ SHOCK для Suzuki LT-F250K1 QUADRUNNER - 2001 года выпуска`
-
№АртикулНазвание
-
161100-19860-019 ARM SET, SUSPENSION (RIGHT) (BLACK)ARM SET, SUSPENSION (RIGHT) (BLACK)
-
209262-32008 ...BEARING (32X58X13)...BEARING (32X58X13)
-
309319-10030 ...BUSHING (10.2X25.5X52.2)...BUSHING (10.2X25.5X52.2)
-
409180-32007 ...SPACER (32.4X38X17)...SPACER (32.4X38X17)
-
509283-40018 ...SEAL, DUST (OUTER) (40X58X6)...SEAL, DUST (OUTER) (40X58X6)
-
609283-40019 ...SEAL, DUST (INNER) (40X58X8)...SEAL, DUST (INNER) (40X58X8)
-
761100-19871-019 ARM SET, SUSPENSION (LEFT) (BLACK)ARM SET, SUSPENSION (LEFT) (BLACK)
-
809262-32008 ...BEARING (32X58X13)...BEARING (32X58X13)
-
909319-10030 ...BUSHING (10.2X25.5X52.2)...BUSHING (10.2X25.5X52.2)
-
1009180-32007 ...SPACER (32.4X38X17)...SPACER (32.4X38X17)
-
1109283-40018 ...SEAL, DUST (OUTER) (40X58X6)...SEAL, DUST (OUTER) (40X58X6)
-
1209283-40019 ...SEAL, DUST (INNER) (40X58X8)...SEAL, DUST (INNER) (40X58X8)
-
1309103-10247 BOLT (10X77)BOLT (10X77)
-
1408319-31107 NUTNUT
-
15-262100-19B20-019 ABSORBER ASSY., SHOCK (BLACK) (REAR)ABSORBER ASSY., SHOCK (BLACK) (REAR)
-
1609100-10227 BOLT (UPPER) (10X38)BOLT (UPPER) (10X38)
-
1709103-10019 BOLT (LOWER) (10X37)BOLT (LOWER) (10X37)
-
1808319-31107 NUTNUT
