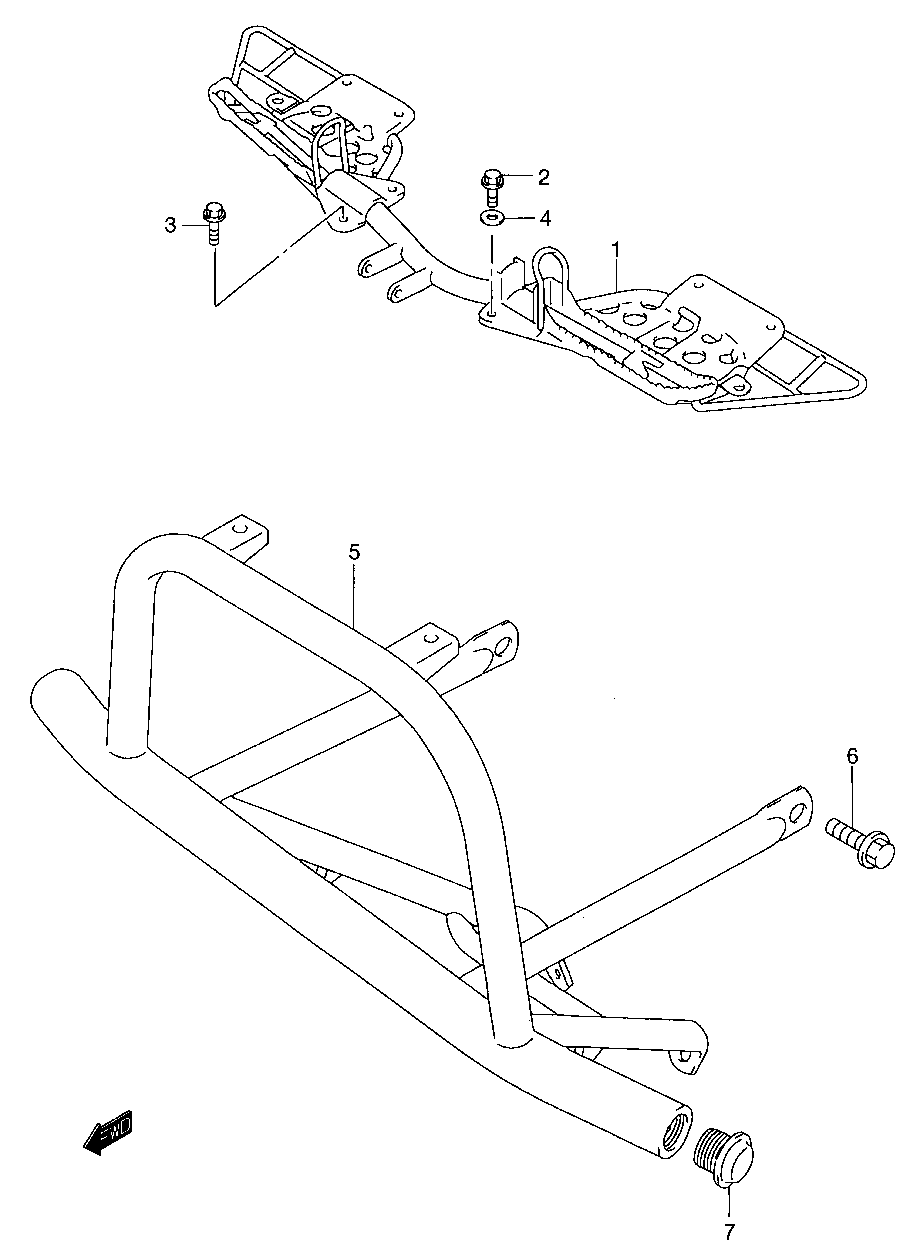

FOOTREST W/ BUMBER для Suzuki LT-F250K1 QUADRUNNER - 2001 года выпуска
-
№АртикулНазвание
-
1-243510-39DV0 TUBE, FOOTREST (FRONT)TUBE, FOOTREST (FRONT)
-
209103-08171 BOLTBOLT
-
309103-08259 BOLT (FRONT/RIGHT)BOLT (FRONT/RIGHT)
-
409160-08501 WASHERWASHER
-
5-343990-39DE0 GRIP (FRONT)GRIP (FRONT)
-
601550-08163 BOLT, SIDEBOLT, SIDE
-
743978-09F00 CAPCAP
