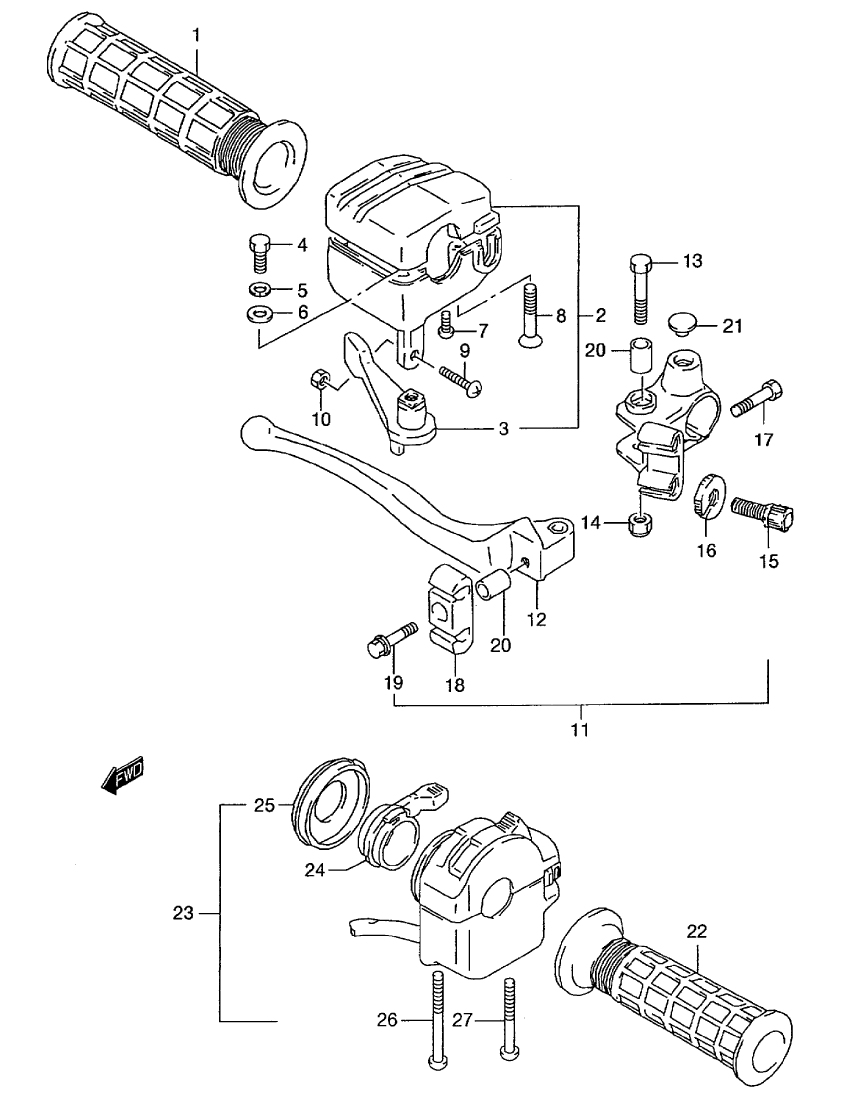

HANDLEBAR - LEVERS / SWITCHES для Suzuki LT-F160K1 QUADRUNNER - 2001 года выпуска
-
№АртикулНазвание
-
157211-22A01-291 GRIP (BLACK)GRIP (BLACK)
-
257100-39DB0 CASE ASSY, THROTTLECASE ASSY, THROTTLE
-
357151-24301 ...LEVER...LEVER
-
401500-06163 ...BOLT...BOLT
-
508321-01063 ...LOCK WASHER...LOCK WASHER
-
609160-06019 ...WASHER...WASHER
-
702112-05123 ...SCREW...SCREW
-
802132-05307 ...SCREW...SCREW
-
909125-05066 ...SCREW (5X25)...SCREW (5X25)
-
1009140-05006 ...NUT...NUT
-
1157300-02C00 LEVER ASSY, BRAKELEVER ASSY, BRAKE
-
1257311-02C00 ...LEVER...LEVER
-
1301500-06303 ...BOLT...BOLT
-
1408319-21065 ...NUT...NUT
-
1557441-05A00 ...ADJUSTER...ADJUSTER
-
1657442-05A00 ...NUT...NUT
-
1701550-06203 ...BOLT...BOLT
-
1857313-02C00 ...EQUALIZER...EQUALIZER
-
1901580-06303 ...BOLT...BOLT
-
2057623-24B00 ...SPACER...SPACER
-
2109250-06005 PLUGPLUG
-
2257211-22A01-291 GRIP (BLACK)GRIP (BLACK)
-
2337400-02C10 SWITCH ASSY, HANDLE, LHSWITCH ASSY, HANDLE, LH
-
2437571-19B01 ...LEVER, CHOKE...LEVER, CHOKE
-
2537576-19B01 ...COVER, CHOKE...COVER, CHOKE
-
2602112-05457 ...SCREW...SCREW
-
2702112-05407 ...SCREW...SCREW
