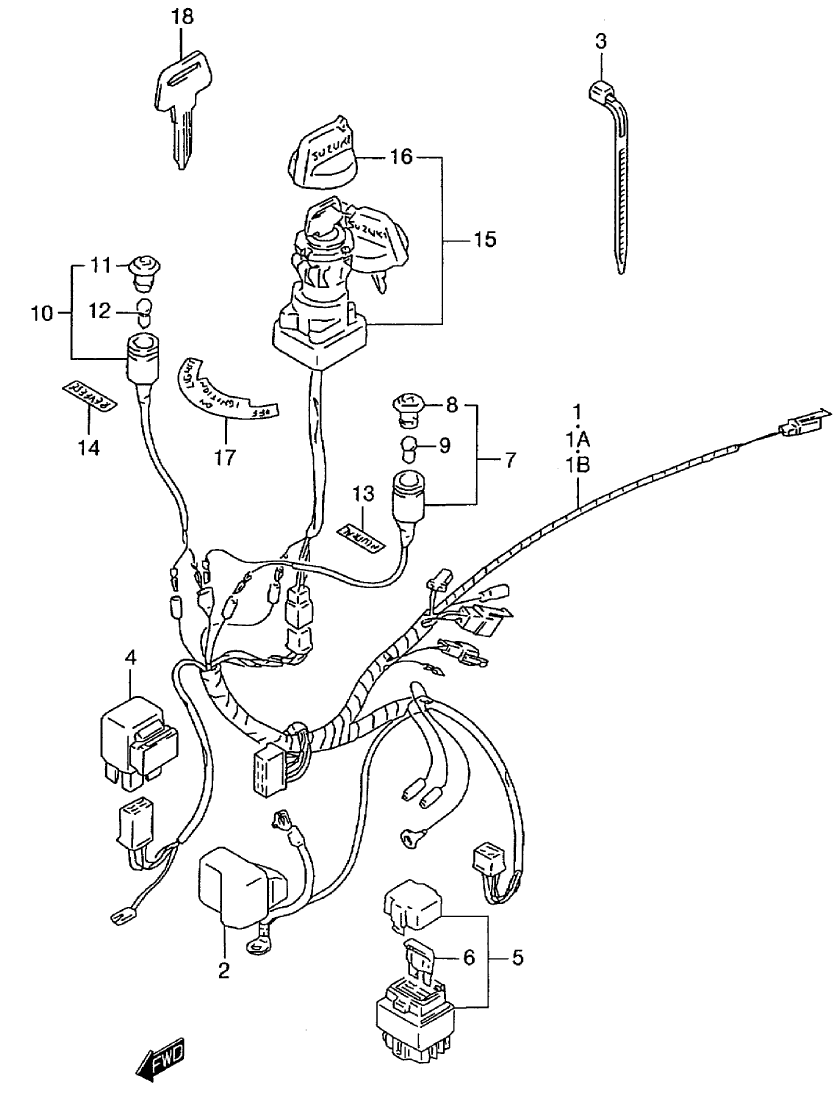

ELECTRICAL - WIRING HARNESS для Suzuki LT-F160K1 QUADRUNNER - 2001 года выпуска`
-
№АртикулНазвание
-
136610-02C50 WIRING HARNESSWIRING HARNESS
-
233624-02C00 ...CAP, BATTERY (+) TERMINAL...CAP, BATTERY (+) TERMINAL
-
309407-14403 CLAMP (LENGTH: 125)CLAMP (LENGTH: 125)
-
309407-11401 CLAMP (LENGTH:95)CLAMP (LENGTH:95)
-
309407-18403 CLAMP (LENGTH: 165)CLAMP (LENGTH: 165)
-
309407-25401 CLAMP (LENGTH: 235)CLAMP (LENGTH: 235)
-
438740-24X50 RELAY, NEUTRAL STARTRELAY, NEUTRAL START
-
536740-04701 BOX ASSY, FUSEBOX ASSY, FUSE
-
609481-15101 ...FUSE (15A)...FUSE (15A)
-
736320-02C00 LAW ASSY, NEUTRALLAW ASSY, NEUTRAL
-
836321-43000 ...LENS...LENS
-
909471-12001 ...BULB (12V, 3.4W)...BULB (12V, 3.4W)
-
1036360-02C00 LAMP ASSY, REVERSELAMP ASSY, REVERSE
-
1136361-43200 ...LENS...LENS
-
1209471-12001 ...BULB (12V, 3.4W)...BULB (12V, 3.4W)
-
1336367-02C00 LABEL, NEUTRALLABEL, NEUTRAL
-
1436367-02C10 LABEL, REVERSELABEL, REVERSE
-
1537110-02C00 SWITCH ASSY, IGNITIONSWITCH ASSY, IGNITION
-
1637142-19B00 ...MASCOT, KEY...MASCOT, KEY
-
1737139-02C01 LABEL, CONTRAL IDENTIFICATIONLABEL, CONTRAL IDENTIFICATION
-
1837146-19B00 KEY, BLANK TYPE C (A-68) (OPT)KEY, BLANK TYPE C (A-68) (OPT)
-
1837146-19B10 KEY, BLANK TYPE D (A-69) (OPT)KEY, BLANK TYPE D (A-69) (OPT)
