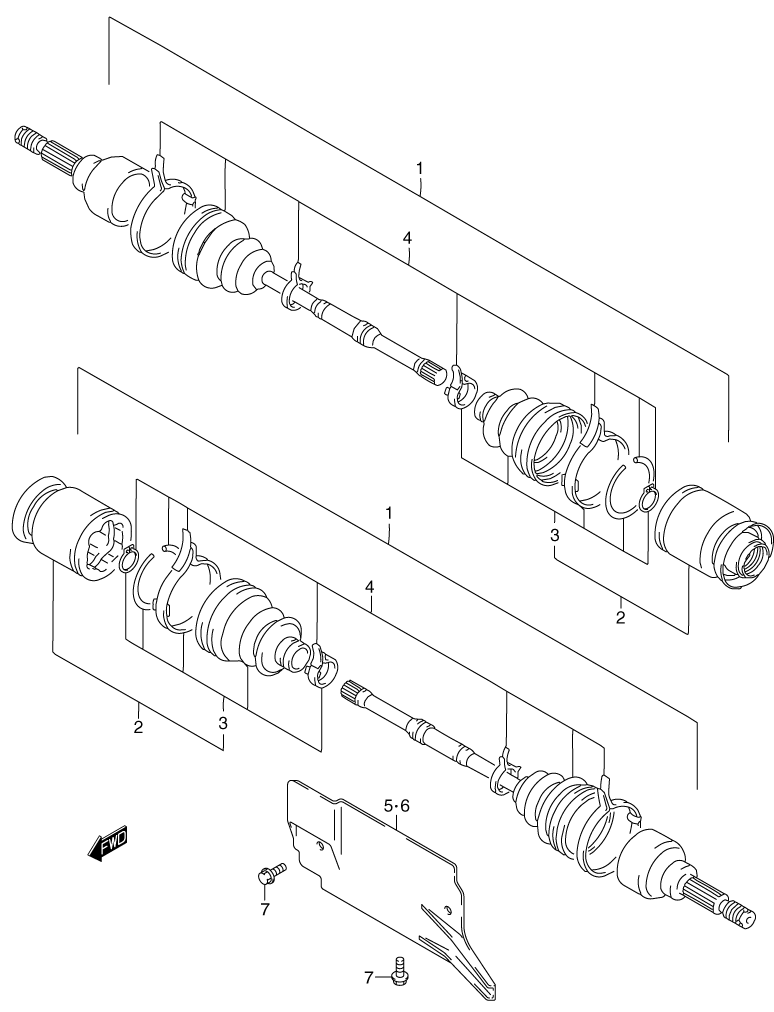

DRIVE SHAFT - FRONT для Suzuki LT-F500FY QUADRUNNER - 2000 года выпуска`
-
№АртикулНазвание
-
154901-19B90 SHAFT ASSY, FRONT DRIVESHAFT ASSY, FRONT DRIVE
-
254933-19B20 ...JOINT SET...JOINT SET
-
354931-19B20 ......BOOT SET, INNER......BOOT SET, INNER
-
454930-19B20 ...BOOT SET, OUTER...BOOT SET, OUTER
-
554903-09F10 PROTECTOR, DRIVE SHAFT RHPROTECTOR, DRIVE SHAFT RH
-
654904-09F10 PROTECTOR, DRIVE SHAFT LHPROTECTOR, DRIVE SHAFT LH
-
701550-06123 BOLTBOLT
