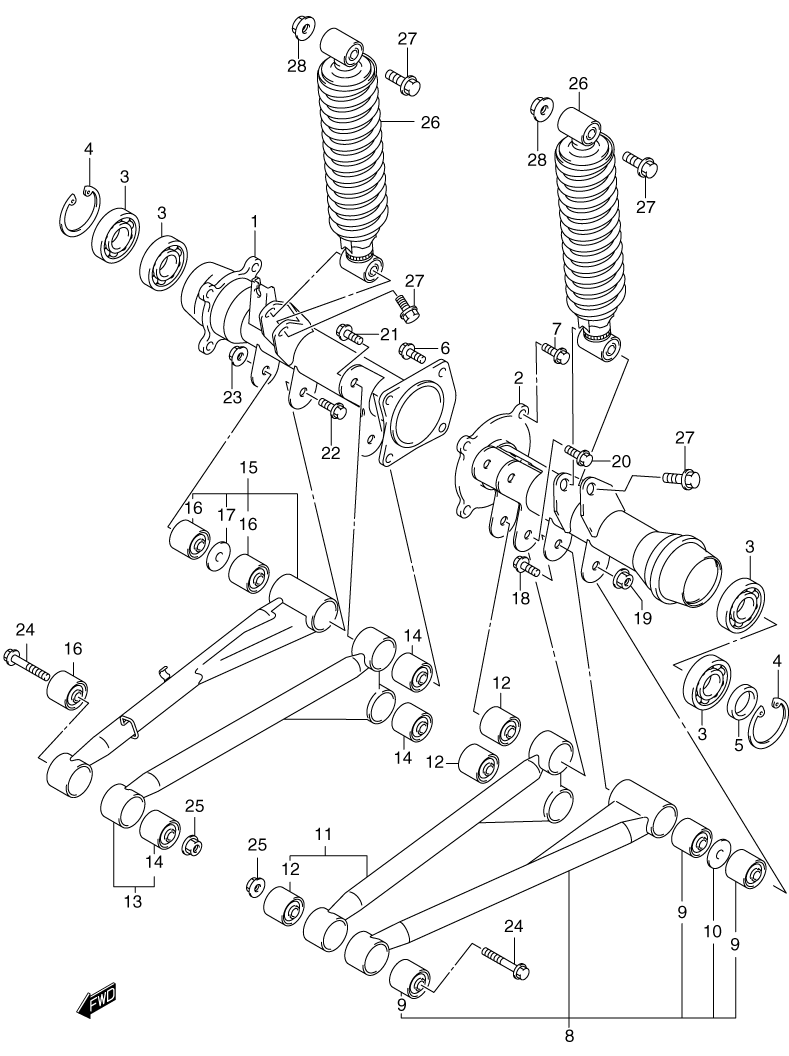

AXLE HOUSING W/ SHOCKS - REAR для Suzuki LT-F500FY QUADRUNNER - 2000 года выпуска`
-
№АртикулНазвание
-
161100-09F10 HOUSING, REAR AXLE RHHOUSING, REAR AXLE RH
-
261200-09F10 HOUSING, REAR AXLE LHHOUSING, REAR AXLE LH
-
308123-60067 BEARINGBEARING
-
408331-41556 CIRCLIPCIRCLIP
-
509283-38013 SEAL, OIL LH (38X55X6.4)SEAL, OIL LH (38X55X6.4)
-
601550-10303 BOLT, REAR RH (10X30)BOLT, REAR RH (10X30)
-
701550-10403 BOLT, REAR LH (10X40)BOLT, REAR LH (10X40)
-
862640-09831 ARM SET, REAR LH OUTERARM SET, REAR LH OUTER
-
961240-09F00 ...BUSH, SUSPENSION ARM...BUSH, SUSPENSION ARM
-
1062649-09F00 ...SPACER, BUSH (10.5X34.6X5)...SPACER, BUSH (10.5X34.6X5)
-
1162640-09841 ARM SET, REAR LH INNERARM SET, REAR LH INNER
-
1261240-09F00 ...BUSH, SUSPENSION ARM...BUSH, SUSPENSION ARM
-
1362640-09851 ARM SET, REAR RH INNERARM SET, REAR RH INNER
-
1461240-09F00 ...BUSH, SUSPENSION ARM...BUSH, SUSPENSION ARM
-
1562640-09861 ARM SET, REAR RH OUTERARM SET, REAR RH OUTER
-
1661240-09F00 ...BUSH, SUSPENSION ARM...BUSH, SUSPENSION ARM
-
1762649-09F00 ...SPACER, BUSH (10.5X34.6X5)...SPACER, BUSH (10.5X34.6X5)
-
1809103-10110 BOLT, LH OUTER (10X100)BOLT, LH OUTER (10X100)
-
1909159-10058 NUTNUT
-
2009103-10040 BOLT, LH INNER (10X54)BOLT, LH INNER (10X54)
-
2109103-10316 BOLT, RH INNER (10X65)BOLT, RH INNER (10X65)
-
2209103-10110 BOLT, RH OUTER (10X100)BOLT, RH OUTER (10X100)
-
2309159-10058 NUTNUT
-
2409103-10317 BOLT, PIVOT (10X101.5)BOLT, PIVOT (10X101.5)
-
2509159-10058 NUTNUT
-
2662100-09F10-019 ABSORBER ASSY, REAR SHOCKABSORBER ASSY, REAR SHOCK
-
2709103-10126 BOLT (10X48)BOLT (10X48)
-
2809159-10058 NUTNUT
