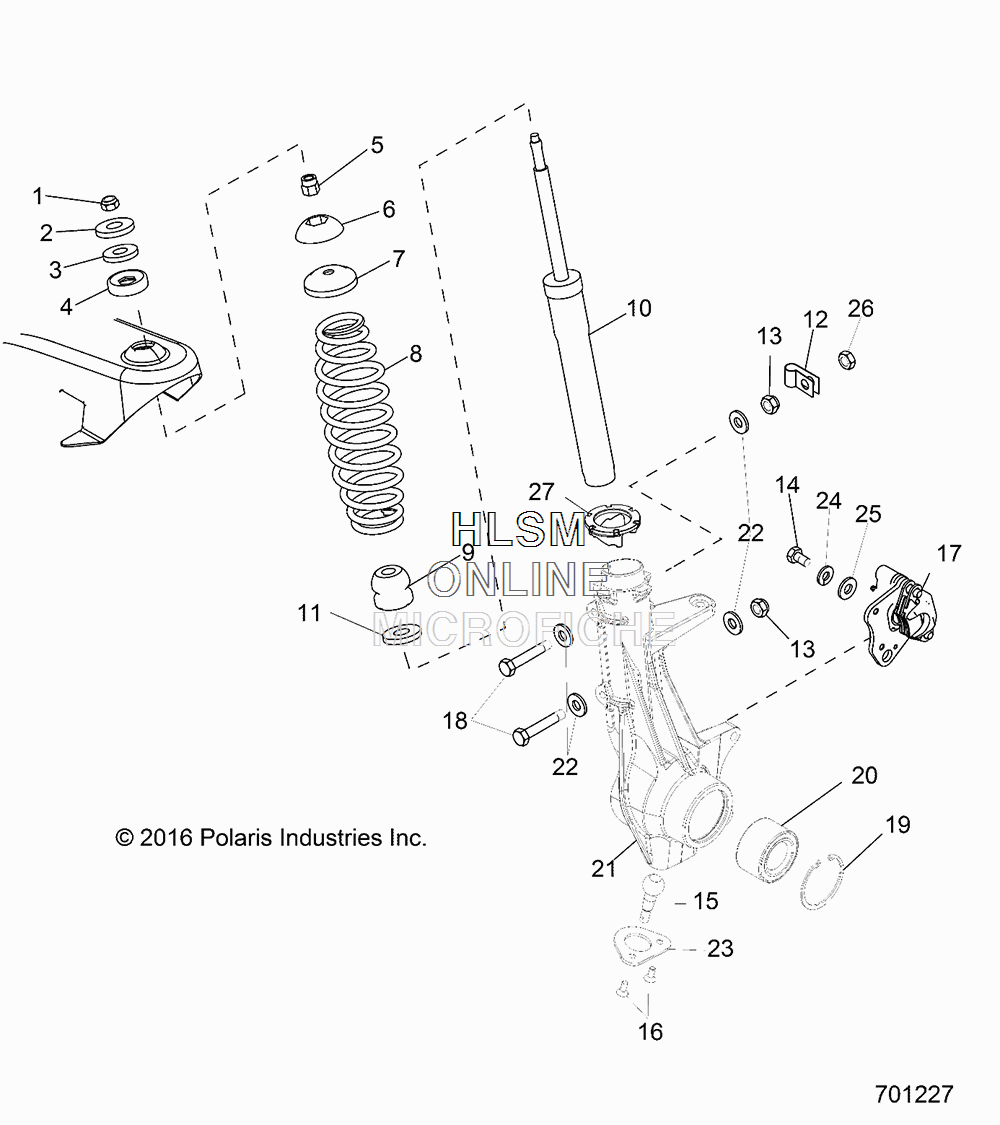

STRUT - FRONT для Polaris RANGER EV MD GREY (R18RMAE4N8) - 2018 года выпуска`
-
№АртикулНазвание
-
17547104 NUTNUT
-
27555749 WASHERWASHER
-
35810291 SPACER, RUBBERSPACER, RUBBER
-
45432872 BALL, PIVOT, TOPBALL, PIVOT, TOP
-
55132062 SPACERSPACER
-
65432871 BALL, PIVOT, BOTTOMBALL, PIVOT, BOTTOM
-
75243364 RETAINER, SPRINGRETAINER, SPRING
-
87044242-458 SPRING, FRONT, MATTE BLACKSPRING, FRONT, MATTE BLACK
-
95412665 BUMPER, 17.8MM IDBUMPER, 17.8MM ID
-
107044149 STRUT, FRONTSTRUT, FRONT
-
111501212 SPACER-STRUTSPACER-STRUT
-
127080367 CLAMP, CABLECLAMP, CABLE
-
137547332 NUT, NYLOKNUT, NYLOK
-
147518558 BOLT (ASSEMBLES BRAKE CALIPER)BOLT (ASSEMBLES BRAKE CALIPER)
-
157061158 JOINT, BALL, GREASELESSJOINT, BALL, GREASELESS
-
167512284 SCREWSCREW
-
187519212 SCREWSCREW
-
197710507 RING, RETAININGRING, RETAINING
-
203514634 BEARING, WHEEL, 35X64X37MMBEARING, WHEEL, 35X64X37MM
-
211824515 ASM., HUBSTRUT, LEFT HAND (INCL. 15, 16, 19, 20, 23)ASM., HUBSTRUT, LEFT HAND (INCL. 15, 16, 19, 20, 23)
-
211824516 ASM., HUBSTRUT, RIGHT HAND (INCL. 15, 16, 19, 20, 23)ASM., HUBSTRUT, RIGHT HAND (INCL. 15, 16, 19, 20, 23)
-
227558402 WASHER, FLATWASHER, FLAT
-
235211121 BRACKET, BALL JOINTBRACKET, BALL JOINT
-
267542344 NUT, NYLOKNUT, NYLOK
-
275633698 RETAINER-SPRING, ALUMNRETAINER-SPRING, ALUMN
