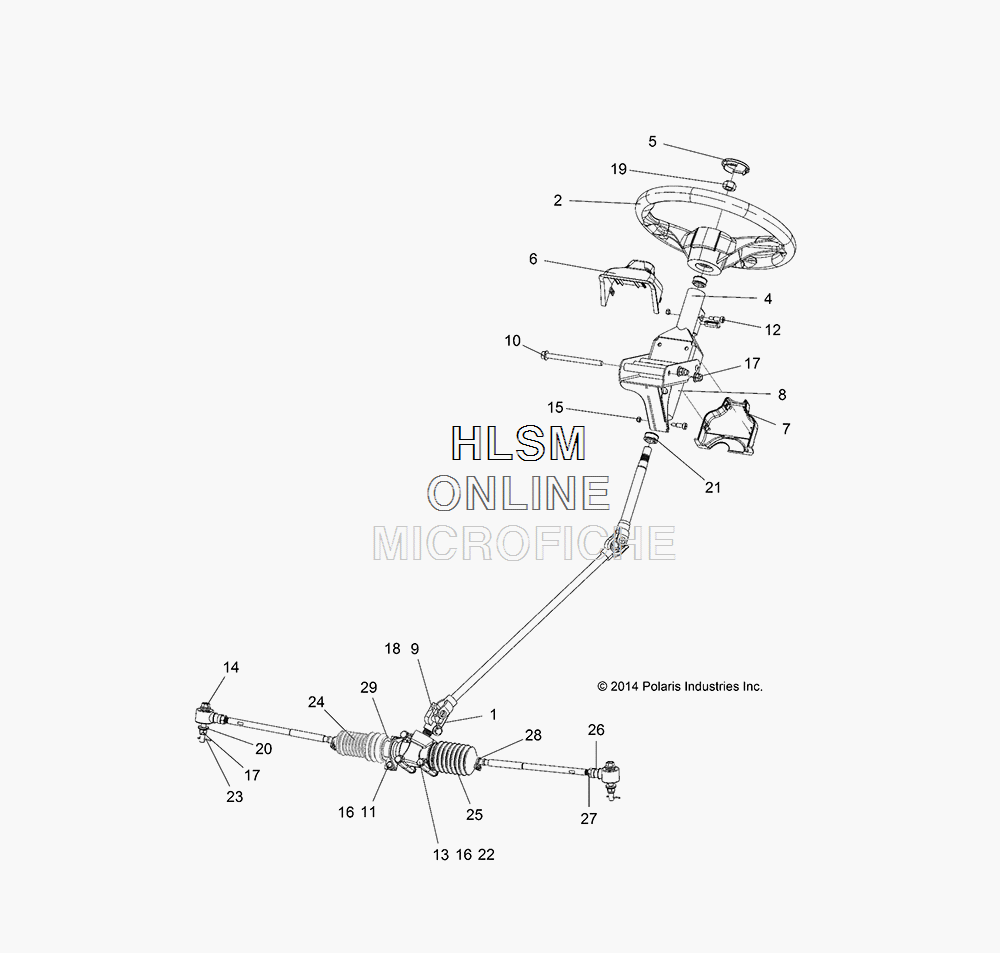

STEERING ASM. для Polaris RANGER EV MD GREY (R18RMAE4N8) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    1824162 SHAFT, STEERING, LOWER
    SHAFT, STEERING, LOWER
  • 2
    1823623 WHEEL, STEERING, 14 IN
    WHEEL, STEERING, 14 IN
  • 3
    1824521 ASM., GEARBOX, STEERING (INCL. 24-29)
    ASM., GEARBOX, STEERING (INCL. 24-29)
  • 4
    1824420-458 ASM., TILT STEERING, RIVETED
    ASM., TILT STEERING, RIVETED
  • 5
    5436536 CAP, STEERING WHEEL
    CAP, STEERING WHEEL
  • 6
    5451478-070 COVER, STEERING COLUMN, UPPER, BLACK
    COVER, STEERING COLUMN, UPPER, BLACK
  • 7
    5451479-070 COVER, STEERING COLUMN, LOWER, BLACK
    COVER, STEERING COLUMN, LOWER, BLACK
  • 8
    7044098 ASM., SHOCK, OIL LOCKING
    ASM., SHOCK, OIL LOCKING
  • 9
    7518644 SCREW
    SCREW
  • 10
    7518665 BOLT
    BOLT
  • 11
    7518702 BOLT
    BOLT
  • 12
    7518786 BOLT
    BOLT
  • 13
    7518935 BOLT
    BOLT
  • 14
    7519854 SCREW
    SCREW
  • 15
    7546703 NUT
    NUT
  • 16
    7547332 NUT
    NUT
  • 17
    7547333 NUT (INCL. 2-7, 23)
    NUT (INCL. 2-7, 23)
  • 18
    7547385 NUT
    NUT
  • 19
    7547506 NUT
    NUT
  • 20
    7556099 WASHER
    WASHER
  • 21
    7556675 BUSHING, STEERING
    BUSHING, STEERING
  • 22
    7558402 WASHER
    WASHER
  • 23
    7661203 PIN, COTTER
    PIN, COTTER
