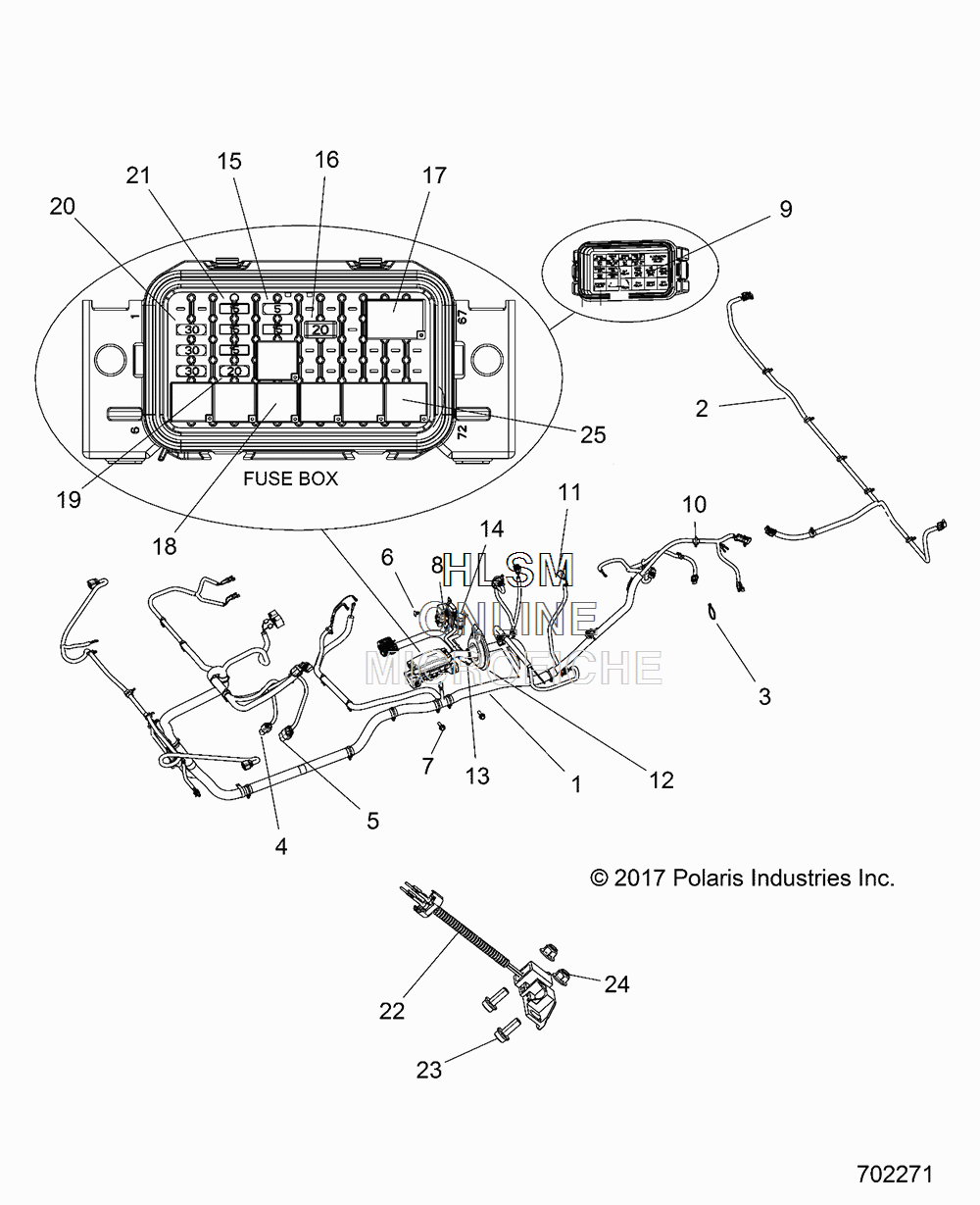

WIRE HARNESSES для Polaris RANGER DIESEL SAGE GREEN INTER (R18RTED1N1) - 2018 года выпуска`
-
№АртикулНазвание
-
12413349 HARNESS-CHASSIS, 4X4, EPS, APLA (INCL. 8-17, 19-21 & 25)HARNESS-CHASSIS, 4X4, EPS, APLA (INCL. 8-17, 19-21 & 25)
-
22412870 HARNESS, BOX, DSLHARNESS, BOX, DSL
-
37080138 PANDUIT, STRAPPANDUIT, STRAP
-
67670088 CLIP, PLASTIC DART, NYLONCLIP, PLASTIC DART, NYLON
-
77518529 SCR-M6X1.0X20, HXHD, FLG, TDFM, BKSCR-M6X1.0X20, HXHD, FLG, TDFM, BK
-
87670101 CLIP, XMAS TREECLIP, XMAS TREE
-
97184007 DECAL, FUSEBOX, DSLDECAL, FUSEBOX, DSL
-
107081496 CLIP, ROUTINGCLIP, ROUTING
-
115451468 BOOT, OIL PRESSURE SWITCHBOOT, OIL PRESSURE SWITCH
-
125414435 GROMMETGROMMET
-
134013200 TVS, 30VOLTTVS, 30VOLT
-
144012170 COVER, DIAGNOSTIC, W/CLIPCOVER, DIAGNOSTIC, W/CLIP
-
154011652 FUSE 5A, MINI BLADEFUSE 5A, MINI BLADE
-
164011372 BREAKER, CIRCUIT, 20 AMPBREAKER, CIRCUIT, 20 AMP
-
174011284 RELAY, SPDT, SERIERS 301, SEALEDRELAY, SPDT, SERIERS 301, SEALED
-
192434017 FUSE, PARK, 20 AMPFUSE, PARK, 20 AMP
-
202434015 FUSE, PARK, 30 AMPFUSE, PARK, 30 AMP
-
212410280 FUSE, MINI BLADE, 15 AMPFUSE, MINI BLADE, 15 AMP
-
224014934 SENSOR, VANESENSOR, VANE
-
237518803 SCREWSCREW
-
247547339 NUT, NYLOCNUT, NYLOC
-
254011283 RELAY-SPST, SERIES 303, SEALEDRELAY-SPST, SERIES 303, SEALED
