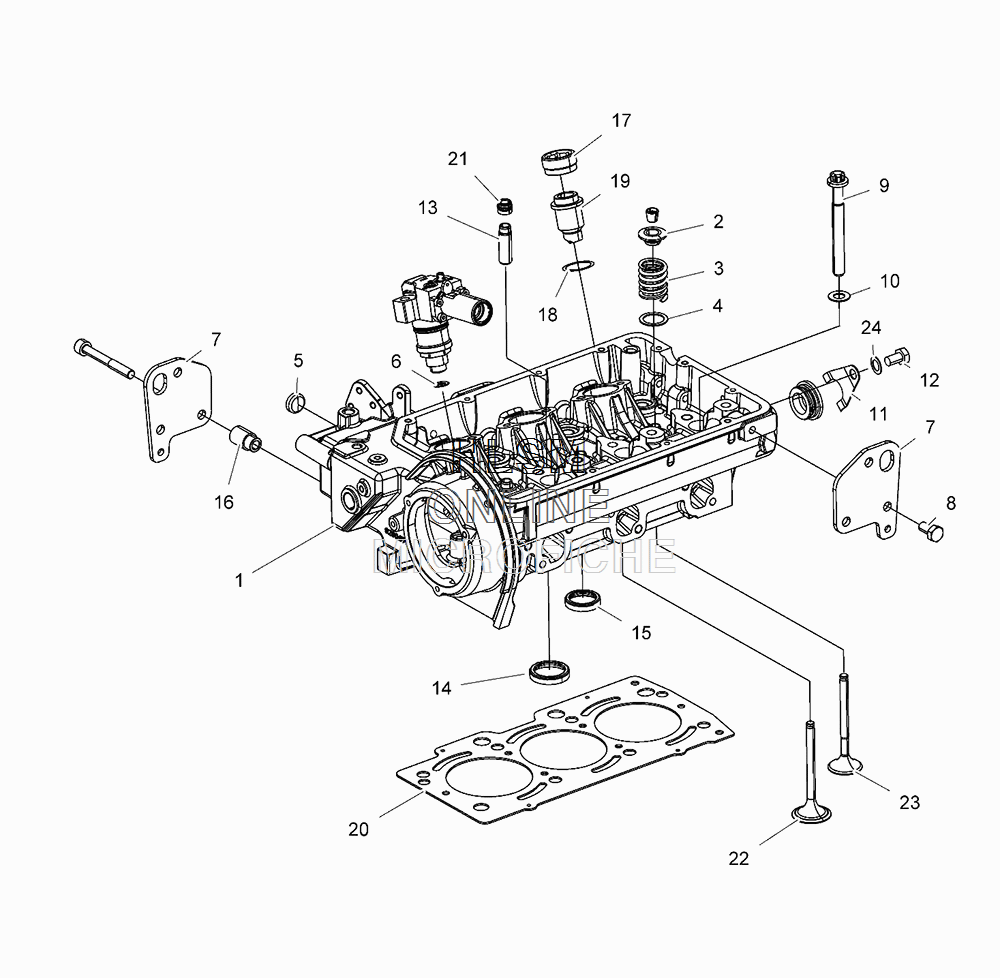

CYLINDER HEAD W/PRECOMBUSTION CHAMBER для Polaris RANGER DIESEL SAGE GREEN INTER (R18RTED1N1) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    3040255 HEAD, CYLINDER
    HEAD, CYLINDER
  • 2
    3040274 RETAINER, W/HALF COLLETS
    RETAINER, W/HALF COLLETS
  • 3
    3040273 SPRING, VALVE
    SPRING, VALVE
  • 4
    3040149 WASHER, 19X25X1
    WASHER, 19X25X1
  • 5
    3040190 SHUTTER CAP, D18
    SHUTTER CAP, D18
  • 6
    3040114 SPARK, ARRESTOR
    SPARK, ARRESTOR
  • 7
    3040184 LIFTING BRACE
    LIFTING BRACE
  • 8
    3040022 SCREW, HXHD M8X16
    SCREW, HXHD M8X16
  • 9
    3040230 SCREW, TORX, M10X90
    SCREW, TORX, M10X90
  • 10
    3040148 WASHER, DIAM. 10.2
    WASHER, DIAM. 10.2
  • 11
    3040108 LEAF, SPRING
    LEAF, SPRING
  • 12
    3040026 SCREW, M8X14
    SCREW, M8X14
  • 13
    3040100 VALVE GUIDE, STD.
    VALVE GUIDE, STD.
  • 13
    3040254 VALVE GUIDE, +0.50
    VALVE GUIDE, +0.50
  • 14
    3040154 SEAT, INTAKE VALVE
    SEAT, INTAKE VALVE
  • 15
    3040155 SEAT, EXHAUST VALVE
    SEAT, EXHAUST VALVE
  • 16
    3040061 SPACER
    SPACER
  • 17
    3040070 NUT, LOCK, PRECHAMBER
    NUT, LOCK, PRECHAMBER
  • 18
    3040060 SPACER, PRECHAMBER
    SPACER, PRECHAMBER
  • 19
    3040127 CHAMBER, PRECOMBUSTION
    CHAMBER, PRECOMBUSTION
  • 20
    3040097 GASKET, HEAD, 1 HOLE
    GASKET, HEAD, 1 HOLE
  • 20
    3040098 GASKET, HEAD, 2 HOLE
    GASKET, HEAD, 2 HOLE
  • 20
    3040099 GASKET, HEAD, 3 HOLE
    GASKET, HEAD, 3 HOLE
  • 21
    3040056 NUT, M10X1.5
    NUT, M10X1.5
  • 22
    3040213 VALVE, INTAKE
    VALVE, INTAKE
  • 23
    3040215 VALVE, EXHAUST
    VALVE, EXHAUST
  • 24
    3040145 WASHER 8X15X1.5
    WASHER 8X15X1.5
