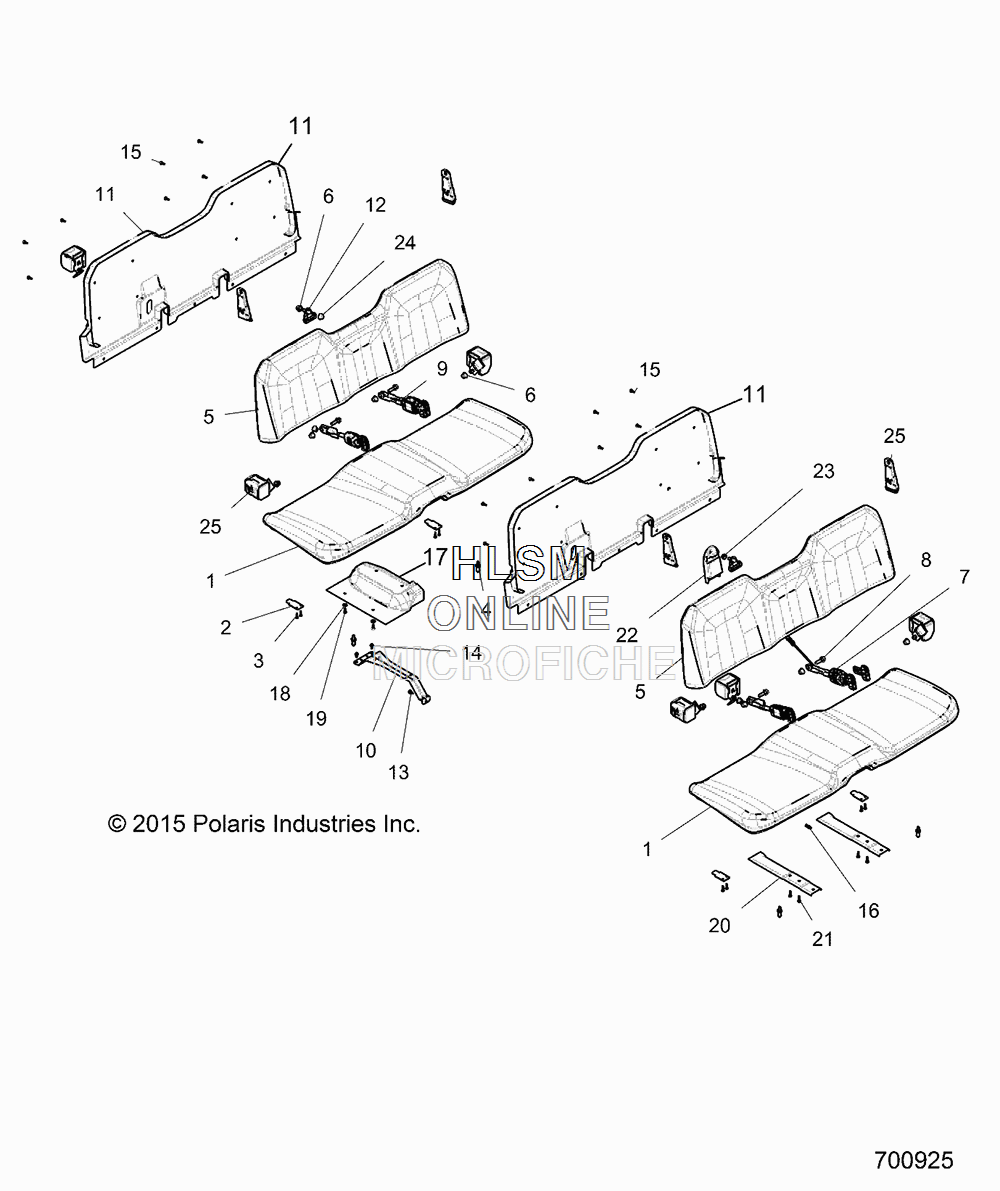

SEAT ASSY. для Polaris RANGER CREW 570-6 SAGE GREEN (CALIF ONLY) (R18RDA57B1) - 2018 года выпуска
-
№АртикулНазвание
-
12684884-070 ASM-SEAT, RNGR, BTM, BLACK (INCL. 2-4)ASM-SEAT, RNGR, BTM, BLACK (INCL. 2-4)
-
25437903 TAB-MOUNT, SEATTAB-MOUNT, SEAT
-
37621479 RVT-3/16(.187-.375)AL-AL/BULBXRVT-3/16(.187-.375)AL-AL/BULBX
-
45632536 PIN-SEAT LATCHPIN-SEAT LATCH
-
52684885-070 ASM-SEAT, RNGR, BACK, BLACKASM-SEAT, RNGR, BACK, BLACK
-
67547441 NUT-HXFL M12X1.75 8 ZOD NYLNUT-HXFL M12X1.75 8 ZOD NYL
-
72635933 BUCKLE-SEATBELT, 180, SWITCHBUCKLE-SEATBELT, 180, SWITCH
-
87519730 SCR-HXFL-M12X1.75X40 8.8 ZODSCR-HXFL-M12X1.75X40 8.8 ZOD
-
92635104 BUCKLE-SEATBELT, CABLEBUCKLE-SEATBELT, CABLE
-
105255263-329 BRKT-SEAT SUPPORT CENTER, BLACKBRKT-SEAT SUPPORT CENTER, BLACK
-
115452663-070 COVER-SEAT, BACK, 3P, FS, BLACKCOVER-SEAT, BACK, 3P, FS, BLACK
-
122635051 ASM-SEAT BELT, 3PT CENTERASM-SEAT BELT, 3PT CENTER
-
137518280 SCR-1/4-20X.75, TR/TX-MSCR-1/4-20X.75, TR/TX-M
-
147661855 RIVET-TUFLOK, .315-.325X.787RIVET-TUFLOK, .315-.325X.787
-
157519274 SCR-TXPH-#14X3/4 HI/LO RIESCR-TXPH-#14X3/4 HI/LO RIE
-
167081808 STRAP-CABLE TIE W/EDGE CLIPSTRAP-CABLE TIE W/EDGE CLIP
-
175813738 SHIELD-SEAT BASE (TO 7/20/2017)SHIELD-SEAT BASE (TO 7/20/2017)
-
187555859 WASHER-FL .281X.750X.062-YWASHER-FL .281X.750X.062-Y
-
197519290 SCR-TXPH-#14X3/4 HI/LO CLRSCR-TXPH-#14X3/4 HI/LO CLR
-
205253488-329 BRKT-SUPPORT, SEAT BASE, BLACKBRKT-SUPPORT, SEAT BASE, BLACK
-
217518158 SCR-#14X1 HI/LO-PH-PN TRX-MSCR-#14X1 HI/LO-PH-PN TRX-M
-
225415020 COVER-SEAT BELT MOUNTCOVER-SEAT BELT MOUNT
-
237540000 NUT-NYLOK, M12X1.75, 0600110NUT-NYLOK, M12X1.75, 0600110
-
245450708 CAP-BOLT HEADCAP-BOLT HEAD
-
252635049 ASM-SEAT BELT, 3PTASM-SEAT BELT, 3PT
