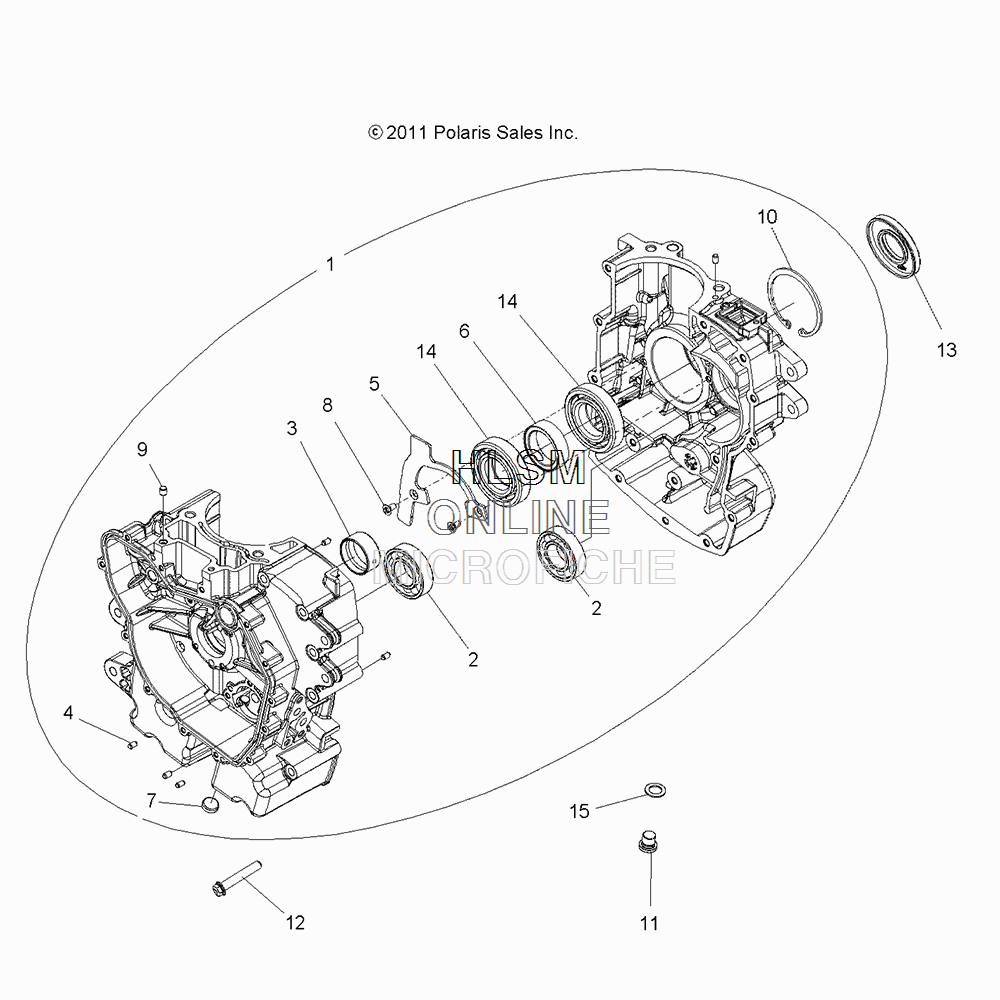

CRANKCASE для Polaris RANGER CREW 570-6 SAGE GREEN (CALIF ONLY) (R18RDA57B1) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    2206362 K-CRANKCASE 570 (INCL. 2-10, 14)
    K-CRANKCASE 570 (INCL. 2-10, 14)
  • 2
    3514426 BEARING, BALL
    BEARING, BALL
  • 4
    5136879 PIN, DOWEL
    PIN, DOWEL
  • 5
    5256915 PLATE, BEARING RETAINER
    PLATE, BEARING RETAINER
  • 6
    5140919 SPACER, BEARING
    SPACER, BEARING
  • 7
    7051530 PLUG, EXPANSION, 19MM
    PLUG, EXPANSION, 19MM
  • 8
    7517598 SCREW
    SCREW
  • 9
    7661977 DOWEL
    DOWEL
  • 10
    7710660 RING, SNAP
    RING, SNAP
  • 11
    7052306 PLUG, SOCKET
    PLUG, SOCKET
  • 12
    7520104 SCREW
    SCREW
  • 13
    3610171 SEAL, CRANKSHAFT
    SEAL, CRANKSHAFT
  • 14
    3514389 BEARING, BALL
    BEARING, BALL
  • 15
    5812232 WASHER, COPPER
    WASHER, COPPER
