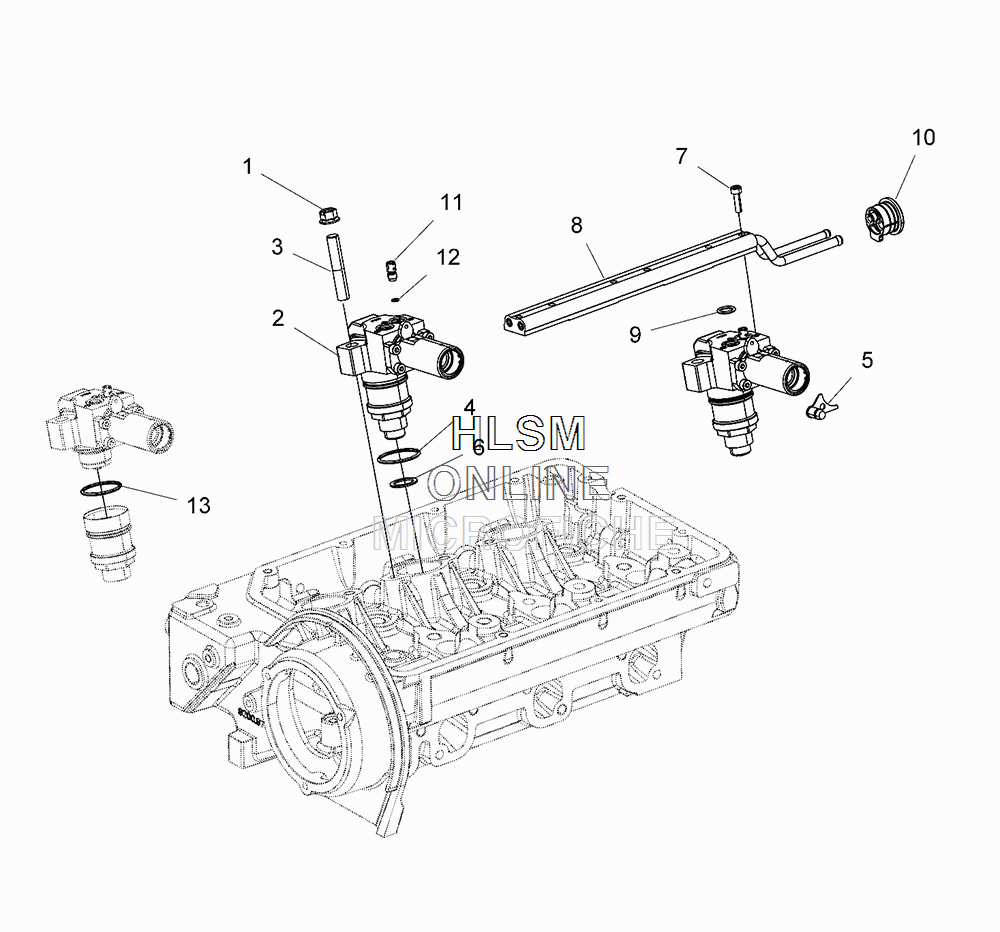

FUEL INJECTION PUMP для Polaris RANGER CREW 1000 DIESEL MD (R18RVAD1N1) - 2018 года выпуска

  • №
    Артикул
    Название
  • -
    3040095 WASHER, COPPER, M14X19X1
    WASHER, COPPER, M14X19X1
  • -
    3040260 BOLT, M4X12
    BOLT, M4X12
  • 1
    3040058 NUT, M8
    NUT, M8
  • 2
    3040124 PUMP, INJECTION
    PUMP, INJECTION
  • 3
    3040132 STUD, M8X30
    STUD, M8X30
  • 4
    3040261 O-RING, 26.70X1.78
    O-RING, 26.70X1.78
  • 5
    3040118 LOCKING PLATE
    LOCKING PLATE
  • 6
    3040095 WASHER, COPPER, M14X19X1
    WASHER, COPPER, M14X19X1
  • 7
    3040224 SCREW, SOC HEAD, M4X16
    SCREW, SOC HEAD, M4X16
  • 8
    3040208 FUEL RAIL
    FUEL RAIL
  • 9
    3040258 SEAL RING, 9.25X1.78
    SEAL RING, 9.25X1.78
  • 10
    3040257 DELIVERY PIPE SEAL
    DELIVERY PIPE SEAL
  • 11
    3040259 VALVE, BLEEDING
    VALVE, BLEEDING
  • 12
    3040263 GASKET, METAL
    GASKET, METAL
  • 13
    3040262 O-RING, 25.12X1.78
    O-RING, 25.12X1.78
