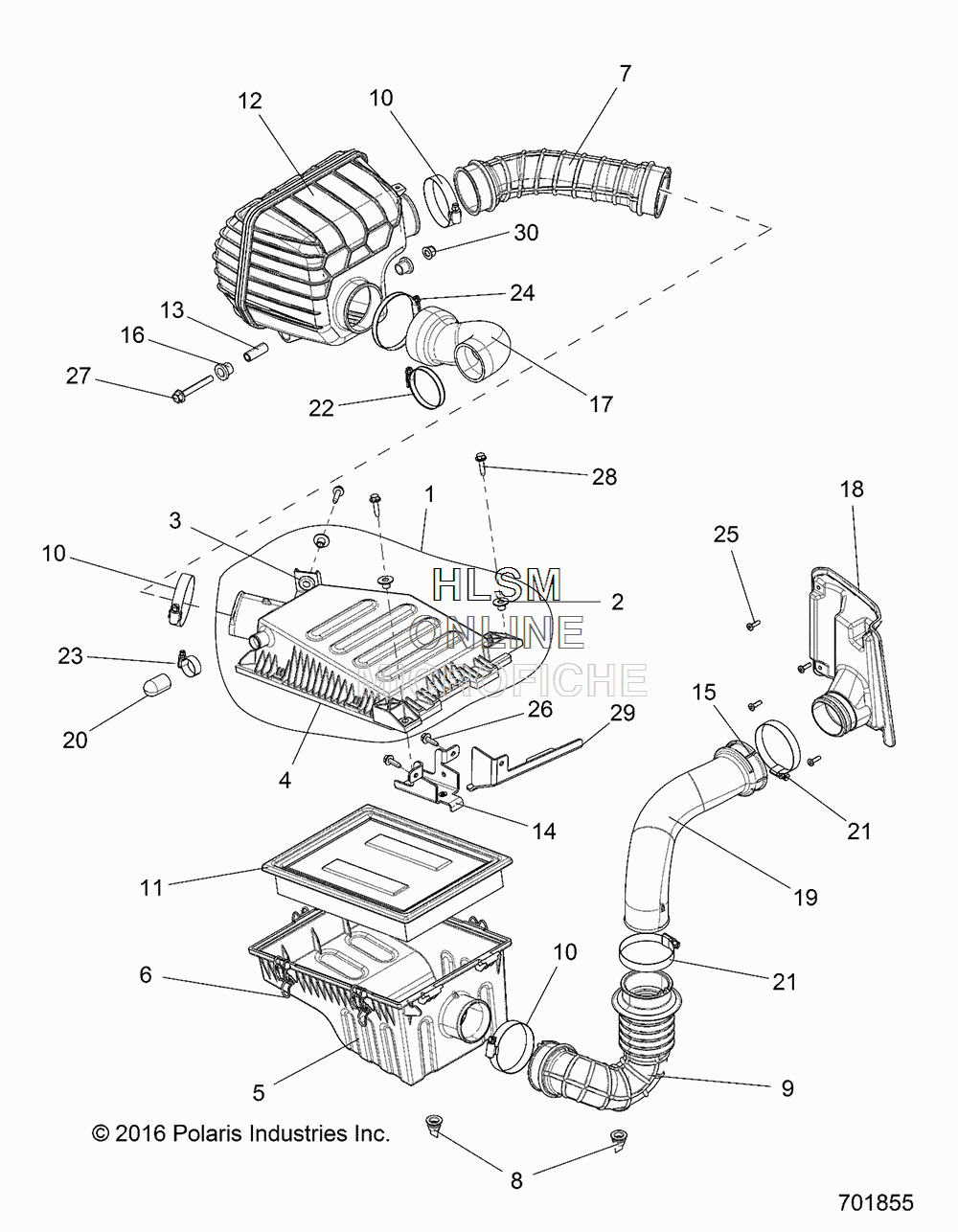

AIR INTAKE для Polaris RANGER CREW 1000 DIESEL MD (R18RVAD1N1) - 2018 года выпуска
-
№АртикулНазвание
-
11240625 ASM-AIRBOX, LIDASM-AIRBOX, LID
-
25137652 BUSHINGBUSHING
-
35414160 GROMMETGROMMET
-
45439197 LID, AIRBOXLID, AIRBOX
-
51240787 ASM., AIRBOX, MAIN (INCL. 6)ASM., AIRBOX, MAIN (INCL. 6)
-
67081707 CLIP, AIRBOXCLIP, AIRBOX
-
75415594 HOSE, INTAKEHOSE, INTAKE
-
85414472 PLUG, DRAINPLUG, DRAIN
-
95414543 HOSE, INTAKE, AIR BOXHOSE, INTAKE, AIR BOX
-
107080446 CLAMP, HOSE, 2.75" SSCLAMP, HOSE, 2.75" SS
-
117081706 FILTER-AIRBOX, MAINFILTER-AIRBOX, MAIN
-
121240883 INTAKE, PLENUMINTAKE, PLENUM
-
135138987 SHAFT, COMPRESSION LIMITERSHAFT, COMPRESSION LIMITER
-
145255273 BRACKET, AIR BOX, MOUNTBRACKET, AIR BOX, MOUNT
-
155414542 BOOT, HOSE, INTAKEBOOT, HOSE, INTAKE
-
165414719 BUSHING, MOUNTBUSHING, MOUNT
-
175415075 HOSE, INTAKE, ENGINE, DSLHOSE, INTAKE, ENGINE, DSL
-
185439201-070 INTAKE, FENDER, REAR, BLACKINTAKE, FENDER, REAR, BLACK
-
195439947 DUCT, INTAKE, AIRDUCT, INTAKE, AIR
-
205416499 CAP-RUBBERCAP-RUBBER
-
217080439 CLAMP, HOSE, 3.25 SSCLAMP, HOSE, 3.25 SS
-
227080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
237081692 SPRINGBAND-CLAMP 26/12SPRINGBAND-CLAMP 26/12
-
247080707 CLAMP, BAND, NARROW 60-80MMCLAMP, BAND, NARROW 60-80MM
-
257518238 SCREW, HI/LOSCREW, HI/LO
-
267518529 SCREW, M6, HXHD, FLANGESCREW, M6, HXHD, FLANGE
-
277519298 SCREW, M8SCREW, M8
-
287519342 SCREW, M6 (INCL. 6)SCREW, M6 (INCL. 6)
-
295263744-329 BRKT-SUPPORT, AIR FILTER, BLACKBRKT-SUPPORT, AIR FILTER, BLACK
-
307547332 NUT, FLANGE, NYLOCNUT, FLANGE, NYLOC
