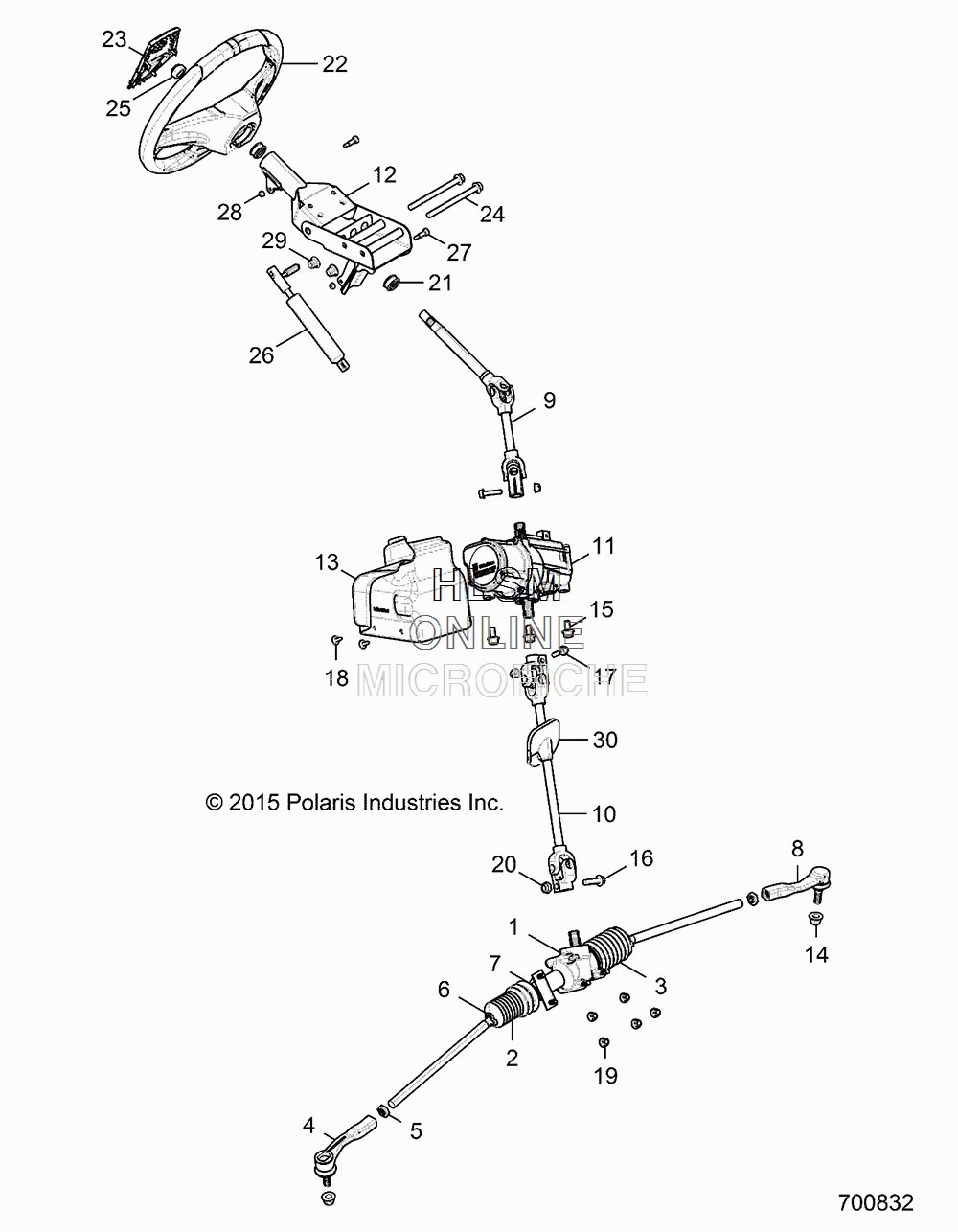

STEERING ASM. для Polaris GENERAL 1000 EPS LE (R18RGU99BG) - 2018 года выпуска

  • №
    Артикул
    Название
  • 2
    5412012 D.S. BELLOWS
    D.S. BELLOWS
  • 3
    5412013 P.S. BELLOWS
    P.S. BELLOWS
  • 4
    7061216 TIE ROD, OUTER RIGHT HAND
    TIE ROD, OUTER RIGHT HAND
  • 5
    2205058 NUT, JAM
    NUT, JAM
  • 6
    7082150 CLAMP, SMALL
    CLAMP, SMALL
  • 7
    7080979 CLAMP, LARGE
    CLAMP, LARGE
  • 8
    7061215 TIE ROD, OUTER LEFT HAND
    TIE ROD, OUTER LEFT HAND
  • 9
    1824438 SHAFT-STEERING, UPPER, EPS
    SHAFT-STEERING, UPPER, EPS
  • 10
    1824439 SHAFT-STEERING LOWER, EPS
    SHAFT-STEERING LOWER, EPS
  • 11
    2413584 ASM-POWER STEERING
    ASM-POWER STEERING
  • 12
    1824420-458 ASM-TILT, STEERING, RVTD, M10, BLACK
    ASM-TILT, STEERING, RVTD, M10, BLACK
  • 13
    5452850 COVER-EPS
    COVER-EPS
  • 14
    7547334 NUT
    NUT
  • 15
    7518558 BOLT
    BOLT
  • 16
    7518644 SCREW
    SCREW
  • 17
    7520943 SCR-HXFL-M8X1.25X35 10.9 ZC
    SCR-HXFL-M8X1.25X35 10.9 ZC
  • 18
    7518936 SCR-M6X1X16 TR/TX-M
    SCR-M6X1X16 TR/TX-M
  • 19
    7547332 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 20
    7547385 NUT
    NUT
  • 21
    7556675 BUSHING, STEERING
    BUSHING, STEERING
  • 24
    7518665 BOLT
    BOLT
  • 25
    7547506 NUT
    NUT
  • 26
    7044098 ASM., SHOCK, OIL LOCKING
    ASM., SHOCK, OIL LOCKING
  • 27
    7519980 BOLT, SHOULDER
    BOLT, SHOULDER
  • 28
    7546703 NUT, NYLOK
    NUT, NYLOK
  • 29
    7547333 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 30
    5415579 GROMMET-STEERING
    GROMMET-STEERING
