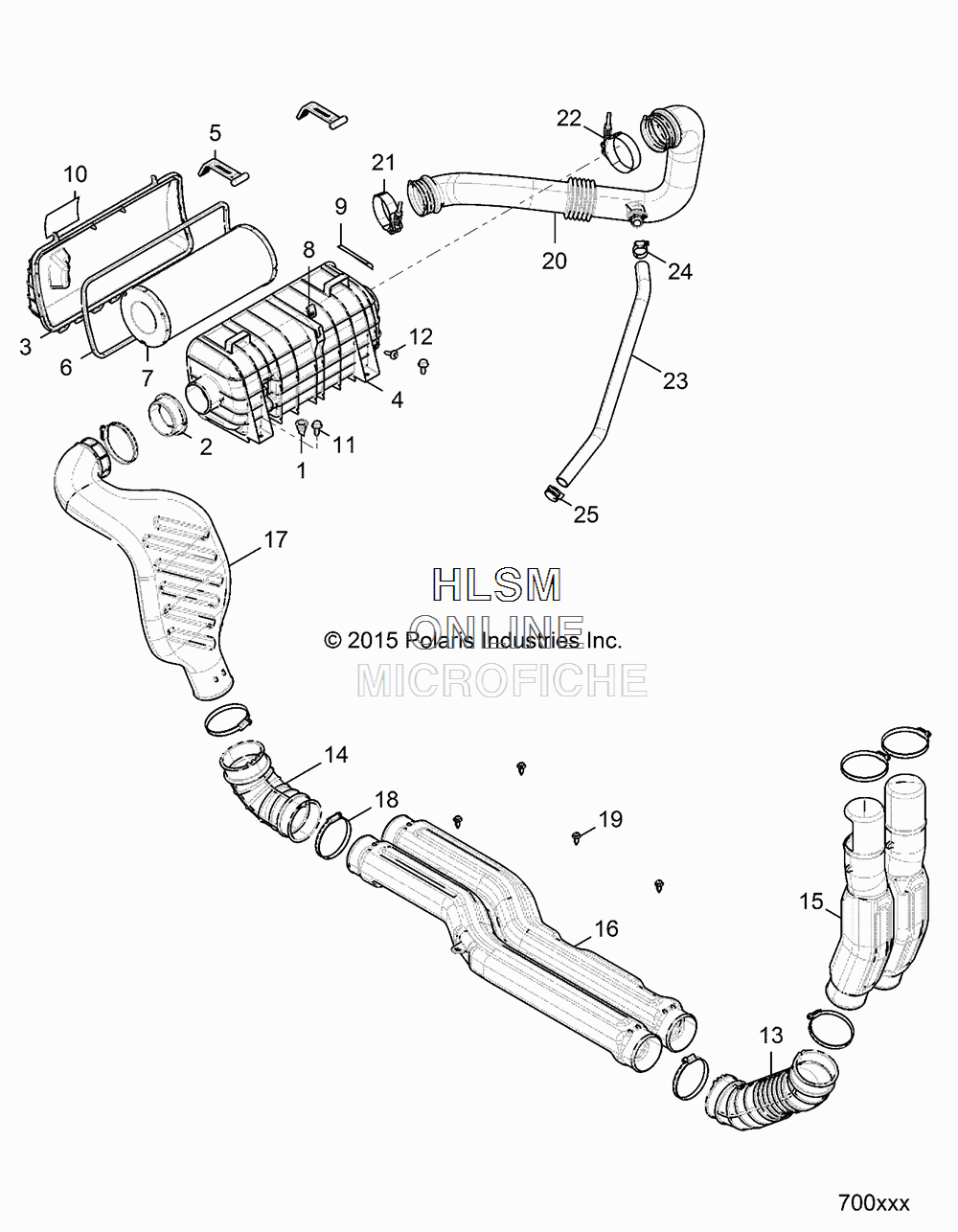

AIR INTAKE SYSTEM для Polaris GENERAL 1000 EPS LE (R18RGU99BG) - 2018 года выпуска

  • №
    Артикул
    Название
  • 1
    5414472 PLUG, DRAIN, HC
    PLUG, DRAIN, HC
  • 2
    5415155 SEAL-INTAKE, AIRBOX
    SEAL-INTAKE, AIRBOX
  • 3
    5451097 COVER-AIRBOX
    COVER-AIRBOX
  • 4
    5451098 AIRBOX
    AIRBOX
  • 5
    5451099 STRAP-AIRBOX
    STRAP-AIRBOX
  • 6
    5814054 SEAL-AIRBOX
    SEAL-AIRBOX
  • 7
    7082115 FILTER, AIR (STD)
    FILTER, AIR (STD)
  • 7
    2881063 K-FILTER-AIR, PERF, RZX (OPT)
    K-FILTER-AIR, PERF, RZX (OPT)
  • 8
    7547674 NUT-M6-1.0, U-TYPE (2.5-3.8)
    NUT-M6-1.0, U-TYPE (2.5-3.8)
  • 9
    7182087 DECAL-INTAKE DUCT
    DECAL-INTAKE DUCT
  • 10
    7182652 DECAL-CAUT.AIR BOX
    DECAL-CAUT.AIR BOX
  • 11
    7518555 BOLT-M8X1.25X20, HXFLG
    BOLT-M8X1.25X20, HXFLG
  • 12
    7519650 SCR-TXTH-M6X1.0X25 RIE
    SCR-TXTH-M6X1.0X25 RIE
  • 13
    5415468 HOSE-INTAKE, DUCT
    HOSE-INTAKE, DUCT
  • 14
    5415469 HOSE-INTAKE, DUCT
    HOSE-INTAKE, DUCT
  • 15
    5452087 DUCT-INTAKE, FRONT
    DUCT-INTAKE, FRONT
  • 16
    5452088 DUCT-INTAKE, FLOOR
    DUCT-INTAKE, FLOOR
  • 17
    5452089 DUCT-INTAKE, AIRBOX IN
    DUCT-INTAKE, AIRBOX IN
  • 18
    7081279 CLAMP-BAND, NARROW 70-90MM
    CLAMP-BAND, NARROW 70-90MM
  • 19
    7661855 RIVET-TUFLOK, .315-.325X.787
    RIVET-TUFLOK, .315-.325X.787
  • 20
    1240946 ASM-INTAKE DUCT (INCL. 21-22)
    ASM-INTAKE DUCT (INCL. 21-22)
  • 21
    7081979 CLAMP-HOSE T-BOLT, 66.4 DIA
    CLAMP-HOSE T-BOLT, 66.4 DIA
  • 22
    7082128 CLAMP-HOSE T-BOLT, 72 DIA
    CLAMP-HOSE T-BOLT, 72 DIA
  • 23
    5415455 HOSE-VENT, ENGINE
    HOSE-VENT, ENGINE
  • 24
    7080614 CLAMP-HOSE WORM GEAR 1.25
    CLAMP-HOSE WORM GEAR 1.25
  • 25
    7080841 SPRINGBAND-CLAMP 27/12, GREEN
    SPRINGBAND-CLAMP 27/12, GREEN
