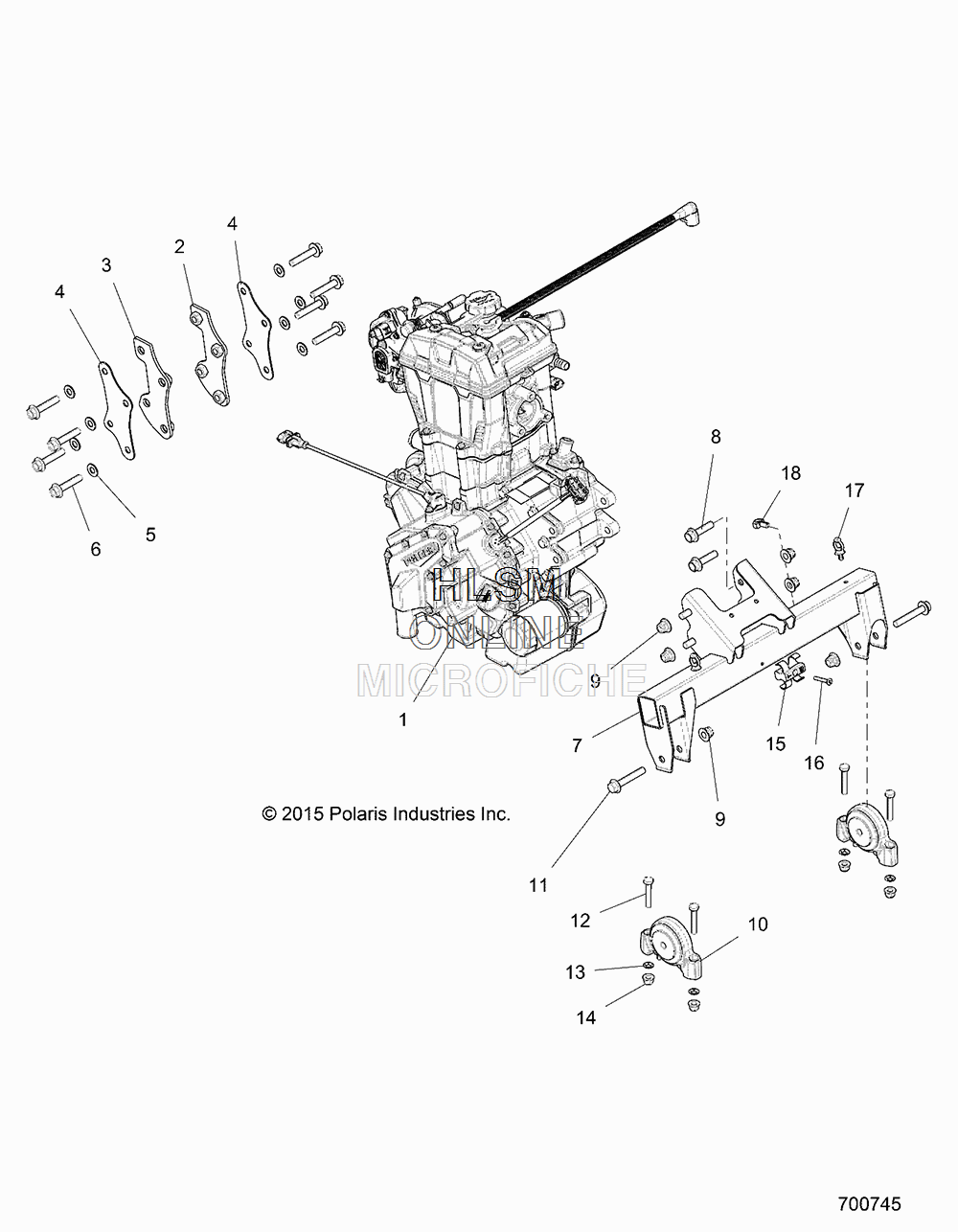

ENGINE AND TRANSMISSION MOUNTING для Polaris RANGER CREW 570FS (R05) - [R17RDA57B1] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    2205747 KIT, LONG BLOCK SEE NOTE
    KIT, LONG BLOCK SEE NOTE
  • 2
    1018420 TRANSMISSION, INNER, LEFT
    TRANSMISSION, INNER, LEFT
  • 3
    1018421 TRANSMISSION, INNER, RIGHT
    TRANSMISSION, INNER, RIGHT
  • 4
    5255321 BRACKET, COUPLER, TRANSMISSION, OUTER
    BRACKET, COUPLER, TRANSMISSION, OUTER
  • 5
    7556153 WASHER
    WASHER
  • 6
    7518971 SCREW
    SCREW
  • 7
    1018903-329 MOUNT, ENGINE, BLACK
    MOUNT, ENGINE, BLACK
  • 8
    7519332 SCREW
    SCREW
  • 9
    7547333 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 10
    1332955 MOUNT, ISOLATOR, DRIVELINE
    MOUNT, ISOLATOR, DRIVELINE
  • 11
    7518563 BOLT
    BOLT
  • 12
    7519097 SCREW
    SCREW
  • 13
    7547030 NUT, PAL
    NUT, PAL
  • 14
    7547332 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 15
    7081689 T-CLIP,T15
    T-CLIP,T15
  • 16
    7512025 SCR-10-24X1.25TFM PN TRX TRI-Y
    SCR-10-24X1.25TFM PN TRX TRI-Y
  • 17
    7081496 CLIP-ROUTING
    CLIP-ROUTING
  • 18
    7670102 CLIP-SILENCER BOX-C,98 INDY
    CLIP-SILENCER BOX-C,98 INDY
