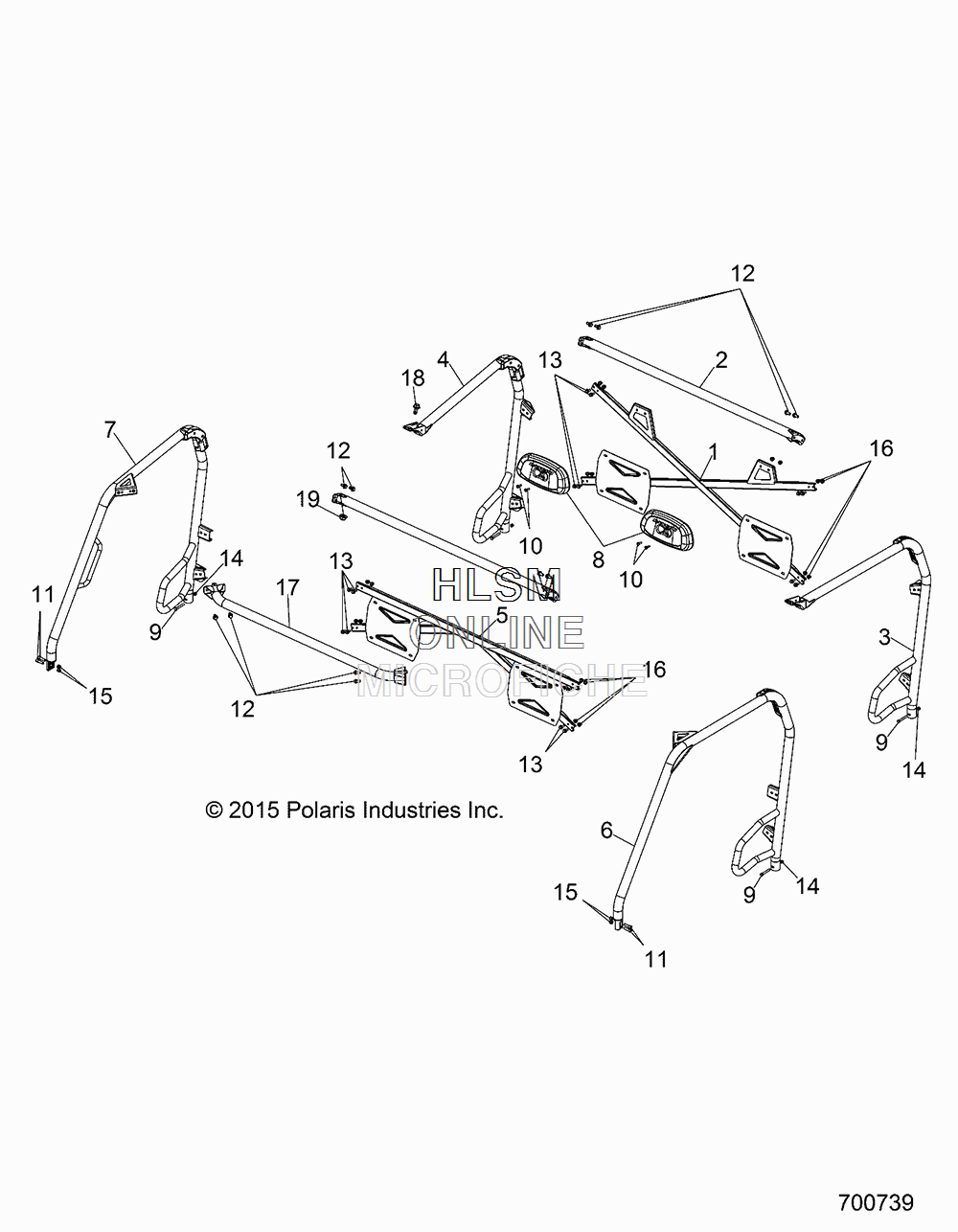

CAB FRAME для Polaris RANGER CREW 570FS (R05) - [R17RDA57B1] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    1019940-458 WELD-CAB FRAME,CROSS,M.BLK
    WELD-CAB FRAME,CROSS,M.BLK
  • 2
    1017169-458 WELD-CAB FRAME,CNTR,TOP,M.BLK
    WELD-CAB FRAME,CNTR,TOP,M.BLK
  • 3
    1022475-458 WELD-CAB FRAME,REAR,LH,M.BLK
    WELD-CAB FRAME,REAR,LH,M.BLK
  • 4
    1022476-458 WELD-CAB FRAME,REAR,RH,M.BLK
    WELD-CAB FRAME,REAR,RH,M.BLK
  • 5
    1019939-458 WELD-CAB FRAME,CROSS,M.BLK
    WELD-CAB FRAME,CROSS,M.BLK
  • 6
    1022473-458 WELD-CAB FRAME,FRT,LH,CREW,BLK
    WELD-CAB FRAME,FRT,LH,CREW,BLK
  • 7
    1022474-458 WELD-CAB FRAME,FRT,RH,CREW,BLK
    WELD-CAB FRAME,FRT,RH,CREW,BLK
  • 8
    5439110-070 HEADREST-BLK
    HEADREST-BLK
  • 9
    7515339 BOLT
    BOLT
  • 10
    7621460 RIVET-POP3/16(.376-.500)AL-LFB
    RIVET-POP3/16(.376-.500)AL-LFB
  • 11
    7519844 SCREW
    SCREW
  • 12
    7518460 BOLT
    BOLT
  • 13
    7518702 BOLT
    BOLT
  • 14
    7542343 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 15
    7547385 NUT, NYLOK
    NUT, NYLOK
  • 16
    7547317 NUT, HEX, FLANGE
    NUT, HEX, FLANGE
  • 17
    1017167-458 WELD-CAB FRAME,FRONT,TOP,M.BLK
    WELD-CAB FRAME,FRONT,TOP,M.BLK
  • 18
    7519059 SCREW
    SCREW
  • 19
    7547333 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
