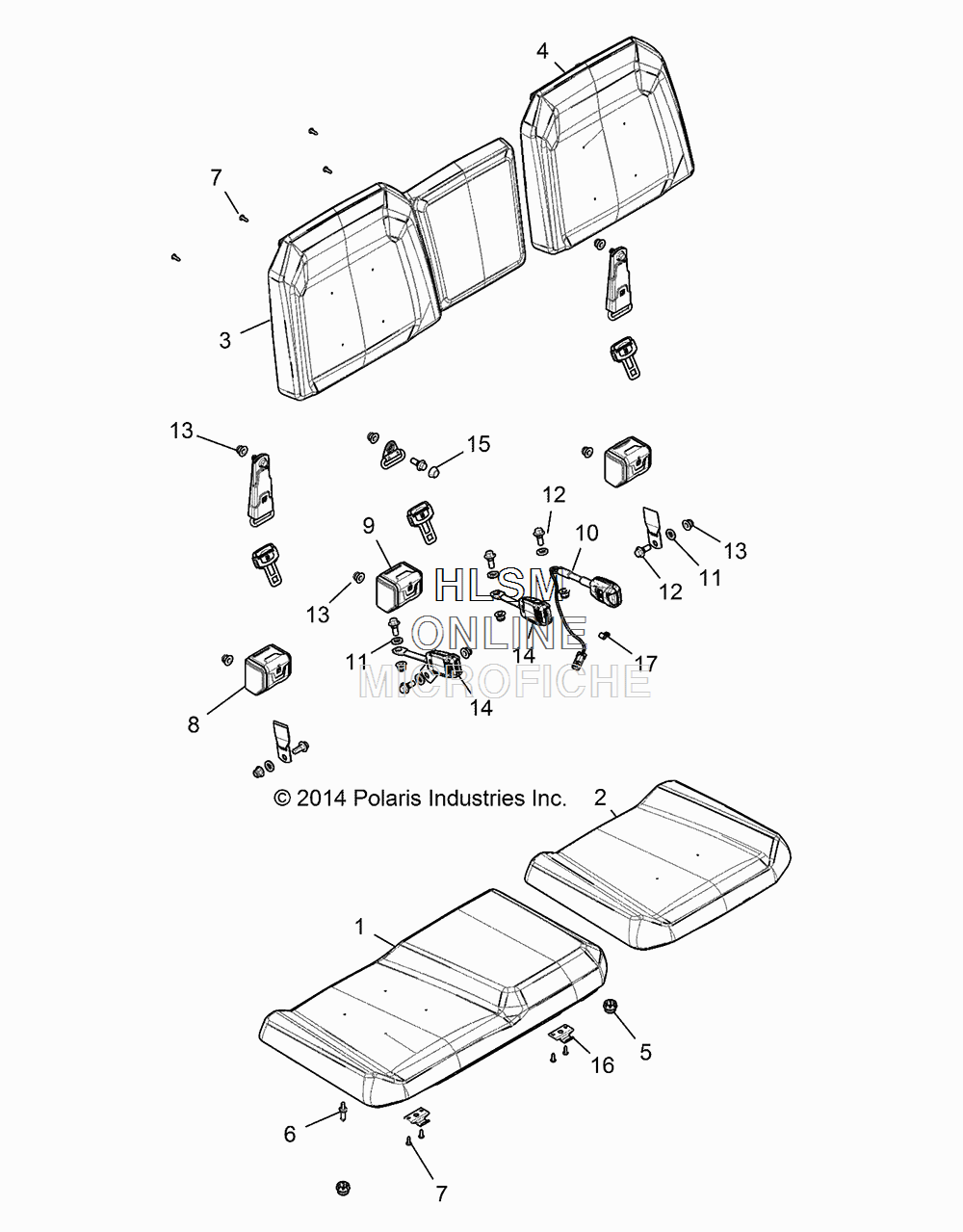

SEAT- 60/40 FULL BACK для Polaris RANGER 1000 DIESEL POLAND ZUG (R05) - [R17RTSD1C1] - 2017 года выпуска
-
№АртикулНазвание
-
12687915-070 ASM-SEAT, BOTTOM, 60, (BLACK) [INCL.16, QTY 4 OF 7][FROM 2/1/2017 AND AFTER]ASM-SEAT, BOTTOM, 60, (BLACK) [INCL.16, QTY 4 OF 7][FROM 2/1/2017 AND AFTER]
-
12684965-070 ASM-SEAT, BOTTOM, 60, (BLACK) [INCL.16, QTY 4 OF 7][TO 2/1/2017ASM-SEAT, BOTTOM, 60, (BLACK) [INCL.16, QTY 4 OF 7][TO 2/1/2017
-
22687917-070 ASM-SEAT, BOTTOM, 40, (BLACK) [INCL. 15, QTY 2 OF 7][FROM 2/1/2017 AND AFTER]ASM-SEAT, BOTTOM, 40, (BLACK) [INCL. 15, QTY 2 OF 7][FROM 2/1/2017 AND AFTER]
-
22686034-070 ASM-SEAT, BOTTOM, 40, (BLACK) [INCL. 15, QTY 2 OF 7][TO 2/1/2017]ASM-SEAT, BOTTOM, 40, (BLACK) [INCL. 15, QTY 2 OF 7][TO 2/1/2017]
-
32687919-070 ASM-SEAT, BACK, 60, (BLACK) [FROM 2/1/2017 AND AFTER]ASM-SEAT, BACK, 60, (BLACK) [FROM 2/1/2017 AND AFTER]
-
32684967-070 ASM-SEAT, BACK, 60, (BLACK) [TO 2/1/2017ASM-SEAT, BACK, 60, (BLACK) [TO 2/1/2017
-
42687921-070 ASM-SEAT, BACK, 40, (BLACK) [FROM 2/1/2017 AND AFTER]ASM-SEAT, BACK, 40, (BLACK) [FROM 2/1/2017 AND AFTER]
-
42684968-070 ASM-SEAT, BACK, 40, (BLACK) [TO 2/1/2017ASM-SEAT, BACK, 40, (BLACK) [TO 2/1/2017
-
55439179 GROMMETGROMMET
-
65910404 PIN, SEAT LATCHPIN, SEAT LATCH
-
77519045 SCREWSCREW
-
82636338 ASM-SEAT BELT, 3PT TRASM-SEAT BELT, 3PT TR
-
92636338 ASM-SEAT BELT, 3PT TRASM-SEAT BELT, 3PT TR
-
102636437 BUCKLE-SEATBELT, 90, SWITCH, TRBUCKLE-SEATBELT, 90, SWITCH, TR
-
115813829 WASHER, RUBBERWASHER, RUBBER
-
127519770 SCREWSCREW
-
137547441 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
142636438 BUCKLE-SEATBELT, PASSENGER, TRBUCKLE-SEATBELT, PASSENGER, TR
-
165259064 BRKT-SEAT HINGEBRKT-SEAT HINGE
-
177081246 CLAMP, WIRE/TUBECLAMP, WIRE/TUBE
