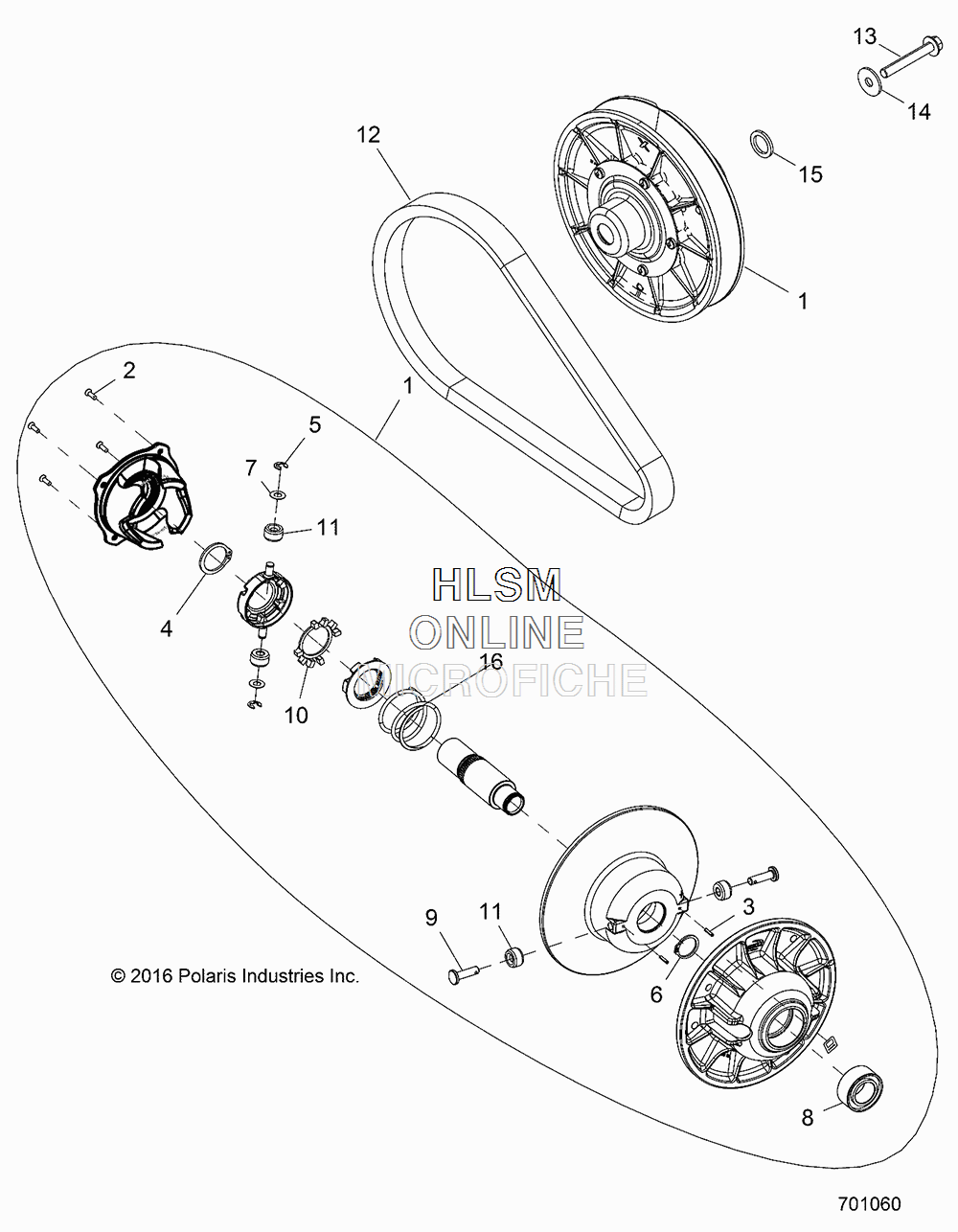

CLUTCH- SECONDARY для Polaris RANGER 1000 DIESEL POLAND ZUG (R05) - [R17RTSD1C1] - 2017 года выпуска
-
№АртикулНазвание
-
11323392 ASM-CLUTCH, DRIVEN [INCL. 2-11 & 16]ASM-CLUTCH, DRIVEN [INCL. 2-11 & 16]
-
23234754 SCREW, HELIX, PATCHSCREW, HELIX, PATCH
-
33234202 PIN, SPRING SLOTTEDPIN, SPRING SLOTTED
-
47710522 RING, RETAININGRING, RETAINING
-
57710523 RING, RETAININGRING, RETAINING
-
63234205 RING, RETAININGRING, RETAINING
-
77556226 WASHER, THRUSTWASHER, THRUST
-
83514925 BRNG-BALL ANGULAR, OIL, 30X55X23BRNG-BALL ANGULAR, OIL, 30X55X23
-
93234201 PIN, ROLLERPIN, ROLLER
-
103234206 DAMPENER SPIDERDAMPENER SPIDER
-
113234207 ROLLER, CLUTCHROLLER, CLUTCH
-
123211175 BELT-DRIVE, 11"CDBELT-DRIVE, 11"CD
-
137518561 SCREWSCREW
-
147555846 WASHER, FLATWASHER, FLAT
-
157556977 WASHER, THRUSTWASHER, THRUST
-
163235759 SPRING-COMP (GREEN/SILVER) 125-190SPRING-COMP (GREEN/SILVER) 125-190
