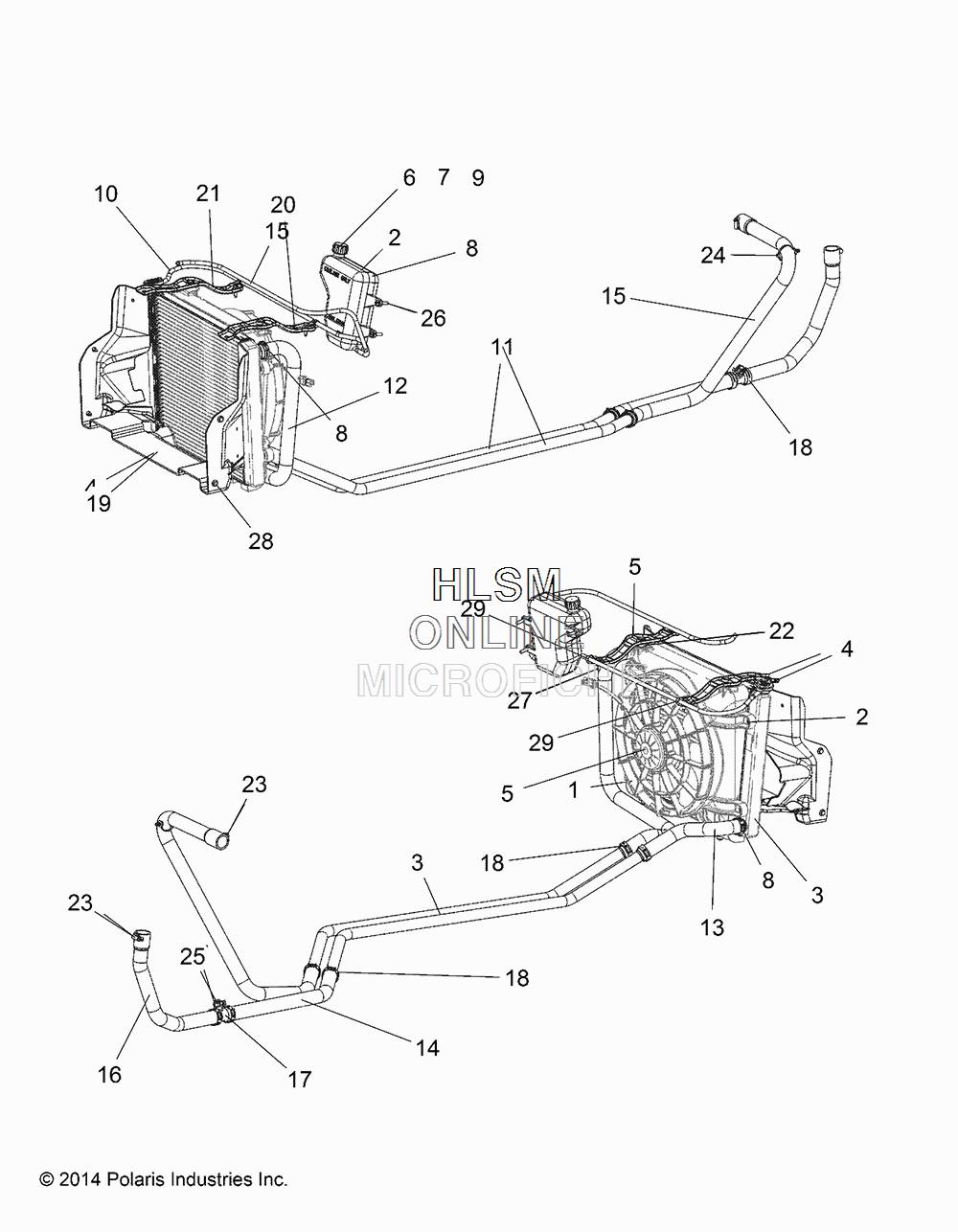

COOLING SYSTEM для Polaris RANGER 1000 DIESEL CREW (R08) - [R17RVAD1A1] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    1240663 ASM., RADIATOR [INCL. 2-5]
    ASM., RADIATOR [INCL. 2-5]
  • 2
    7519585 BOLT
    BOLT
  • 3
    1240664 ASM., RADIATOR CORE
    ASM., RADIATOR CORE
  • 4
    1240694 CAP, RADIATOR
    CAP, RADIATOR
  • 5
    2411816 ASM., FAN
    ASM., FAN
  • 6
    5430743 CAP, OVER FLOW BOTTLE
    CAP, OVER FLOW BOTTLE
  • 7
    5433774 PLUG, CAP
    PLUG, CAP
  • 8
    5439202 TANK, SURGE
    TANK, SURGE
  • 9
    5810279 GASKET, OVERFLOW CAP
    GASKET, OVERFLOW CAP
  • 10
    8450003-95 FUEL LINE, 95CM
    FUEL LINE, 95CM
  • 11
    5138504 TUBE, COOLANT
    TUBE, COOLANT
  • 12
    5414289 HOSE, UPPER, RADIATOR
    HOSE, UPPER, RADIATOR
  • 13
    5414290 HOSE, LOWER, RADIATOR
    HOSE, LOWER, RADIATOR
  • 14
    5415076 HOSE, ENGINE, INNER
    HOSE, ENGINE, INNER
  • 15
    5415827 HOSE-ENG, OUTER [TO 7/28/16]
    HOSE-ENG, OUTER [TO 7/28/16]
  • 15
    5415827 HOSE-ENG, OUTER [FROM 7/28/16]
    HOSE-ENG, OUTER [FROM 7/28/16]
  • 16
    5415078 HOSE, ENGINE, BYPASS
    HOSE, ENGINE, BYPASS
  • 17
    7052530 CONNECTOR, TEE
    CONNECTOR, TEE
  • 18
    7080844 CLAMP, SPRINGBAND, (BLACK)
    CLAMP, SPRINGBAND, (BLACK)
  • 19
    5439293-070 SHROUD, RADIATOR, FRONT, (BLACK)
    SHROUD, RADIATOR, FRONT, (BLACK)
  • 20
    5256596-329 MOUNT, RADIATOR, LEFT HAND, (BLACK)
    MOUNT, RADIATOR, LEFT HAND, (BLACK)
  • 21
    5256597-329 MOUNT, RADIATOR, RIGHT HAND, (BLACK)
    MOUNT, RADIATOR, RIGHT HAND, (BLACK)
  • 22
    7052028 GROMMET, FLANGED
    GROMMET, FLANGED
  • 23
    7081192 CLAMP, HOSE
    CLAMP, HOSE
  • 24
    7081496 CLIP, ROUTING
    CLIP, ROUTING
  • 25
    7081719 CLAMP, HOSE, SPRING
    CLAMP, HOSE, SPRING
  • 26
    7518158 SCREW
    SCREW
  • 27
    7518529 SCREW
    SCREW
  • 28
    7661855 RIVET, TUFLOCK
    RIVET, TUFLOCK
  • 29
    7670102 CLIP, SILENCER BOX
    CLIP, SILENCER BOX
