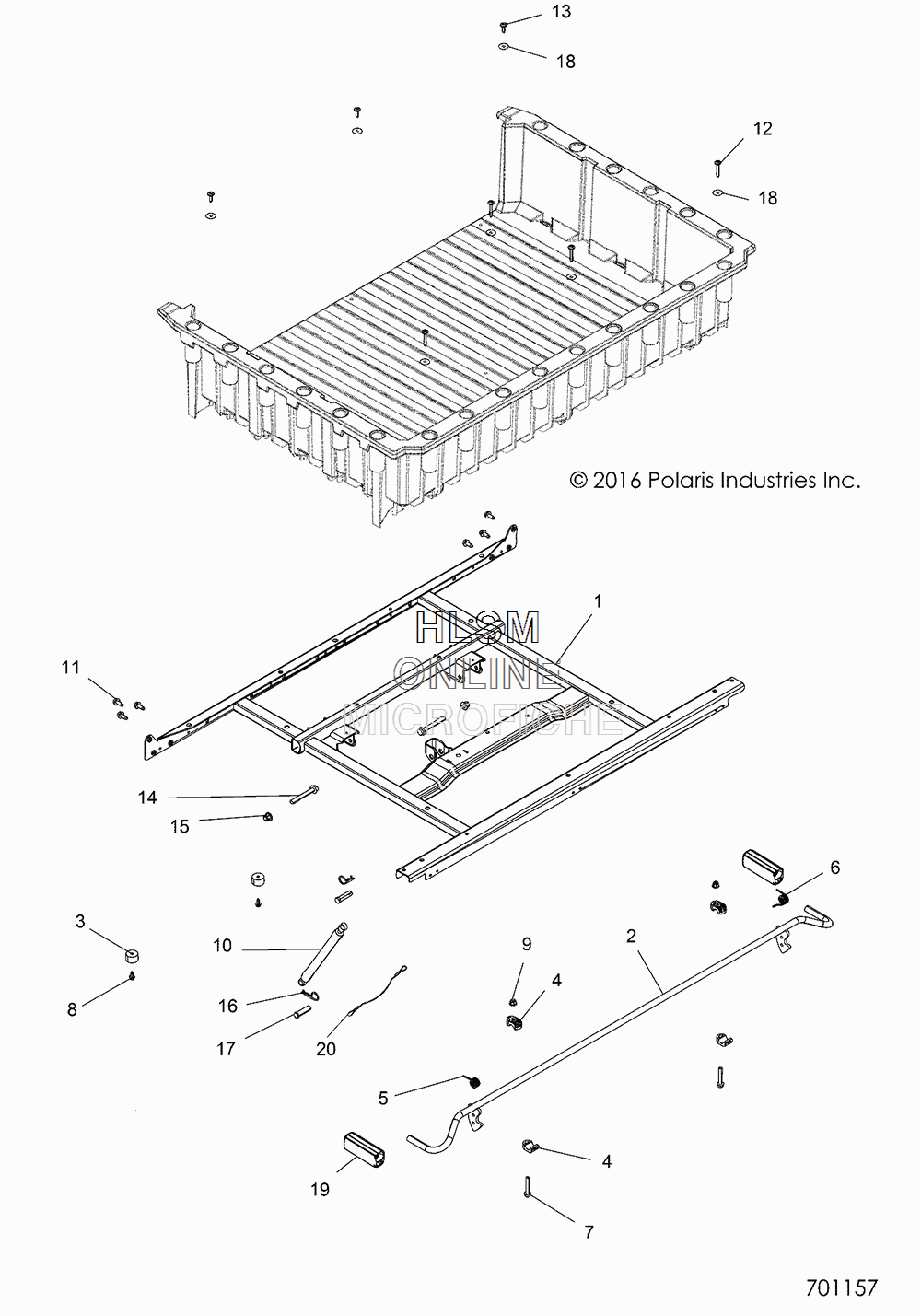

BOX MOUNTING для Polaris RANGER 1000 DIESEL CREW (R08) - [R17RVAD1A1] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    1020410-329 BOX, SUPPORT, SHORT, (BLACK)
    BOX, SUPPORT, SHORT, (BLACK)
  • 2
    1020411-458 LATCH, BOX, (MATTE BLACK)
    LATCH, BOX, (MATTE BLACK)
  • 3
    5414343 BUMPER, BOX
    BUMPER, BOX
  • 4
    5434226 BUSHING, BOX, LATCH
    BUSHING, BOX, LATCH
  • 5
    7044325 SPRING. LATCH
    SPRING. LATCH
  • 6
    7044324 SPRING, LATCH
    SPRING, LATCH
  • 7
    7517793 SCREW
    SCREW
  • 8
    7621460 RIVET
    RIVET
  • 9
    7547317 NUT
    NUT
  • 10
    7044674 SHOCK-BOX, DUMP, SM, SINGLE LOBE
    SHOCK-BOX, DUMP, SM, SINGLE LOBE
  • 11
    7518555 BOLT
    BOLT
  • 12
    7519722 SCREW
    SCREW
  • 13
    7519650 SCREW
    SCREW
  • 14
    7519363 SCREW
    SCREW
  • 15
    7547333 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 16
    7661067 CLIP, HITCHPIN
    CLIP, HITCHPIN
  • 17
    7661878 PIN, CLEVIS
    PIN, CLEVIS
  • 18
    7556329 WASHER
    WASHER
  • 19
    5450278 HANDLE, BOX, LATCH
    HANDLE, BOX, LATCH
  • 20
    7082244 CABLE-DUMP, BED, LIMITER NO PRINT
    CABLE-DUMP, BED, LIMITER NO PRINT
