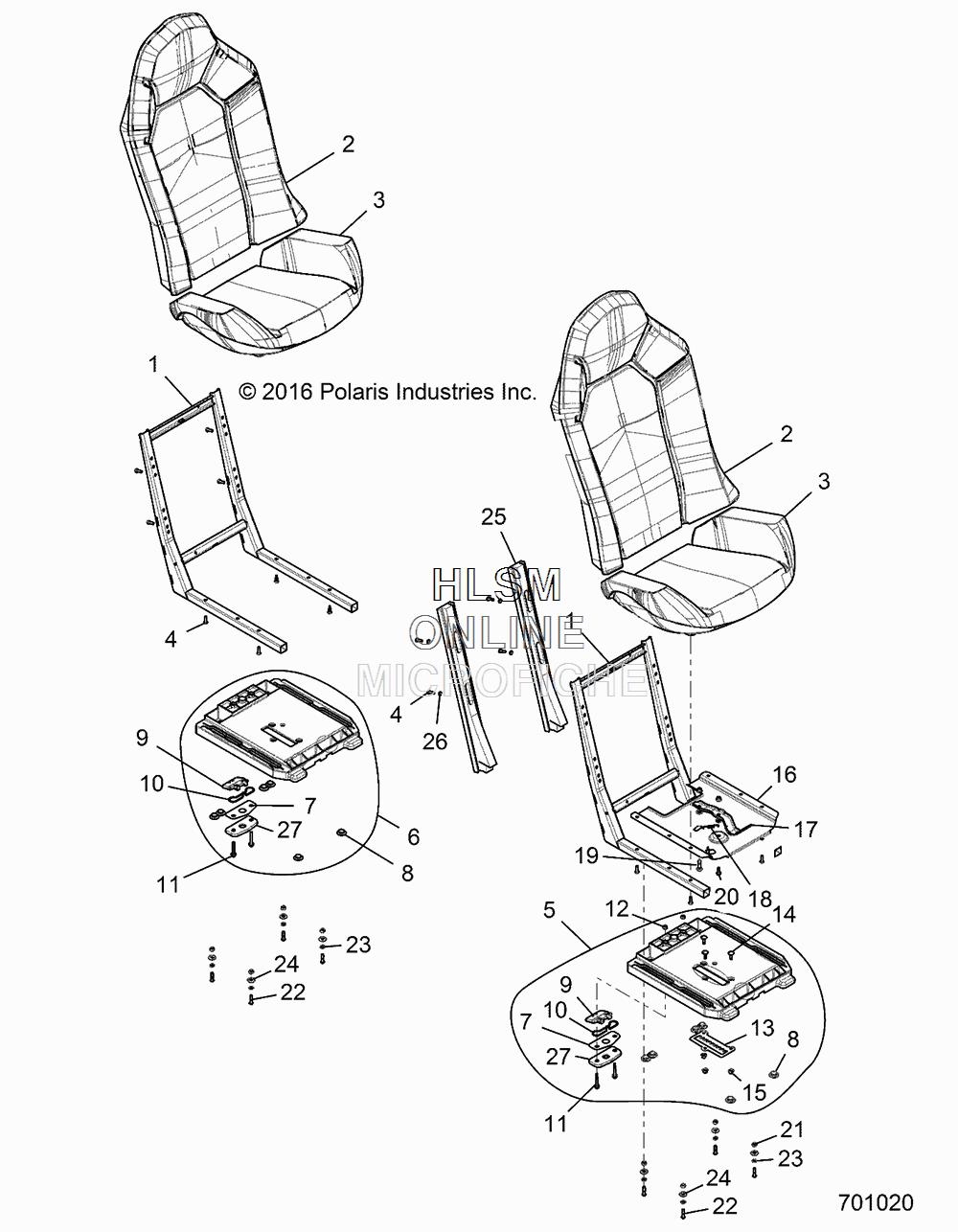

SEAT ASM. AND SLIDER для Polaris POLARIS GENERAL 1000 4P PS [R17RHE99AU] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    1022256 WELD-SEAT FRAME
    WELD-SEAT FRAME
  • 2
    2687616 ASM-SEAT, BACK, (BLACK/RED/RED ST)
    ASM-SEAT, BACK, (BLACK/RED/RED ST)
  • 3
    2687619 ASM-SEAT, BOTTOM, (BLACK/RED/RED ST)
    ASM-SEAT, BOTTOM, (BLACK/RED/RED ST)
  • 4
    7515177 SCREW
    SCREW
  • 5
    2685704 ASM., BASE, SEAT SLIDER [INCL. 6-14 & 27, QTY 3 OF 15]
    ASM., BASE, SEAT SLIDER [INCL. 6-14 & 27, QTY 3 OF 15]
  • 6
    2634889 ASM-BASE, SEAT [INCL. 6-14 & 27, QTY 3 OF 15]
    ASM-BASE, SEAT [INCL. 6-14 & 27, QTY 3 OF 15]
  • 7
    5258647 PLATE, SEAT LATCH
    PLATE, SEAT LATCH
  • 8
    5413441 GROMMET, SEAT BASE
    GROMMET, SEAT BASE
  • 9
    5437121 LEVER, LATCH, SEAT
    LEVER, LATCH, SEAT
  • 10
    7081466 SPRING, LATCH, SEAT
    SPRING, LATCH, SEAT
  • 11
    7517610 SCREW
    SCREW
  • 12
    7546703 NUT, NYLOK
    NUT, NYLOK
  • 13
    5257975 BRACKET, SEAT SLIDER ADJUSTMENT PLATE
    BRACKET, SEAT SLIDER ADJUSTMENT PLATE
  • 14
    7518994 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 15
    7547339 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 16
    5257974 BRACKET, SEAT SLIDER MOUNTING PLATE [INCL. 16-20 FOR FRONT SEAT ONLY]
    BRACKET, SEAT SLIDER MOUNTING PLATE [INCL. 16-20 FOR FRONT SEAT ONLY]
  • 17
    5260101 BRACKET, SEAT SLIDER LEVER
    BRACKET, SEAT SLIDER LEVER
  • 18
    7044099 SPRING
    SPRING
  • 19
    7518786 BOLT, SHOULDER
    BOLT, SHOULDER
  • 20
    7518897 BOLT, SHOULDER
    BOLT, SHOULDER
  • 21
    5340145 TUBE, SPACER
    TUBE, SPACER
  • 22
    7519296 SCREW
    SCREW
  • 23
    7552801 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 24
    7555859 WASHER, FLAT
    WASHER, FLAT
  • 25
    5140211 SLEEVE-SHLD, 15.5OD, 10 OD, 6.5ID [INCL. 26, 27 FOR FRONT SEAT ONLY]
    SLEEVE-SHLD, 15.5OD, 10 OD, 6.5ID [INCL. 26, 27 FOR FRONT SEAT ONLY]
  • 26
    5415501-070 PAD-SEAT BASE, (BLACK)
    PAD-SEAT BASE, (BLACK)
  • 27
    5450510-070 LATCH-COVER PLATE, (BLACK)
    LATCH-COVER PLATE, (BLACK)
