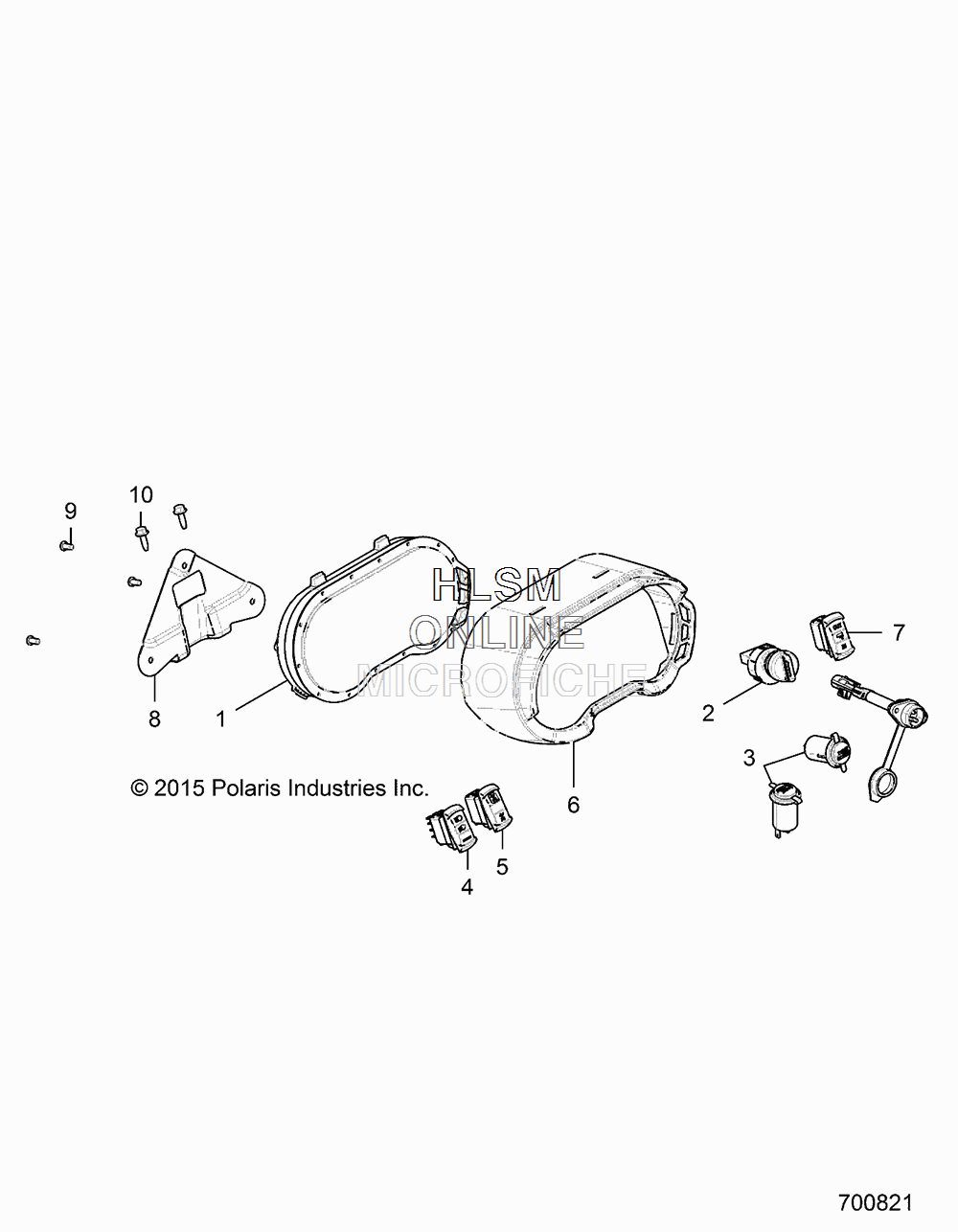

DASH INSTRUMENTS AND CONTROLS для Polaris POLARIS GENERAL 1000 4P PS [R17RHE99AU] - 2017 года выпуска`
-
№АртикулНазвание
-
13280683 ASM-CLUSTER, C4, SXSASM-CLUSTER, C4, SXS
-
24012165 SWITCH, KEY, 3 POSITIONSWITCH, KEY, 3 POSITION
-
34015439 RECEPTACLE, POD MOUNT, 12 VOLTRECEPTACLE, POD MOUNT, 12 VOLT
-
44014069 SWITCH, HEADLIGHTSWITCH, HEADLIGHT
-
54014611 SWITCH, AWD, TURFSWITCH, AWD, TURF
-
65452199-070 BEZEL-GAUGE, BLKBEZEL-GAUGE, BLK
-
74015688 SWITCH-WINCHSWITCH-WINCH
-
85260981 BRKT-C4 GAUGE MOUNTBRKT-C4 GAUGE MOUNT
-
97518330 SCR-TORX BTNHD, M6X12, 0600129SCR-TORX BTNHD, M6X12, 0600129
-
107518529 SCR-M6X1.0X20, HXHD, FLG, TDFM, (BLACK)SCR-M6X1.0X20, HXHD, FLG, TDFM, (BLACK)
