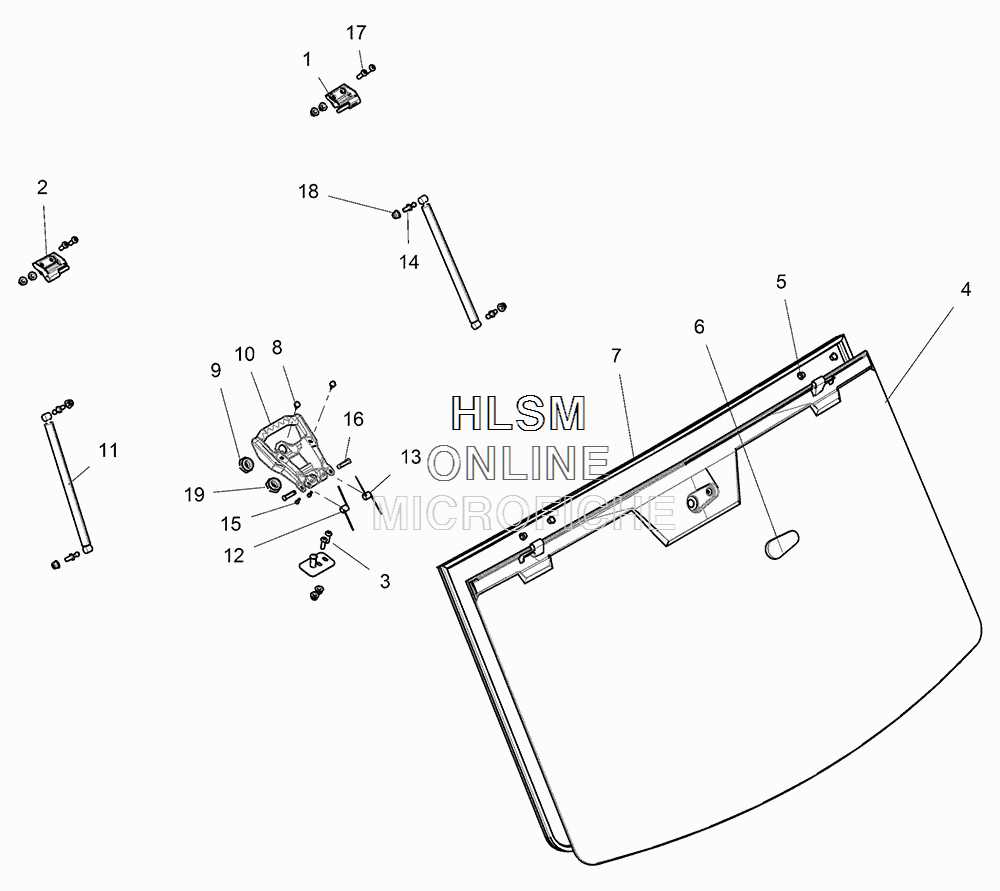

WINDSHIELD TIP-OUT для Polaris RANGER XP 900 (SUNSET RED) [R16RTE87AS] - 2016 года выпуска
‹-+›
-
№АртикулНазвание
-
11018927 BRACKET, HINGE, UPPER, LHBRACKET, HINGE, UPPER, LH
-
21018928 BRACKET, HINGE, UPPER, RHBRACKET, HINGE, UPPER, RH
-
37518529 SCREWSCREW
-
42878858 ASM., GLASS,TIPOUT (INCL. 5-7)ASM., GLASS,TIPOUT (INCL. 5-7)
-
55137866 BUSHINGBUSHING
-
65439803 PLUG, WIPER, L AND RPLUG, WIPER, L AND R
-
75521838 SEAL, GLASS, FRONTSEAL, GLASS, FRONT
-
85412465 BUMPER, GROMMOTBUMPER, GROMMOT
-
95439913 GROMMET, RUBBER, HANDLE, TIPOUTGROMMET, RUBBER, HANDLE, TIPOUT
-
105451292 HANDLE, TIPOUTHANDLE, TIPOUT
-
117043889 SHOCK, GAS, TIPOUTSHOCK, GAS, TIPOUT
-
127043894 SPRING, TORSION, RH, TIPOUTSPRING, TORSION, RH, TIPOUT
-
137043895 SPRING, TORSION, LH, TIPOUTSPRING, TORSION, LH, TIPOUT
-
147081839 BALL, ENDBALL, END
-
157511866 SCREWSCREW
-
167519743 PIN, PIVOT, HANDLE, TIPOUTPIN, PIVOT, HANDLE, TIPOUT
-
177519747 SCREWSCREW
-
187547454 NUTNUT
-
195415090 GROMMET, RUBBER, TIPOUTGROMMET, RUBBER, TIPOUT
