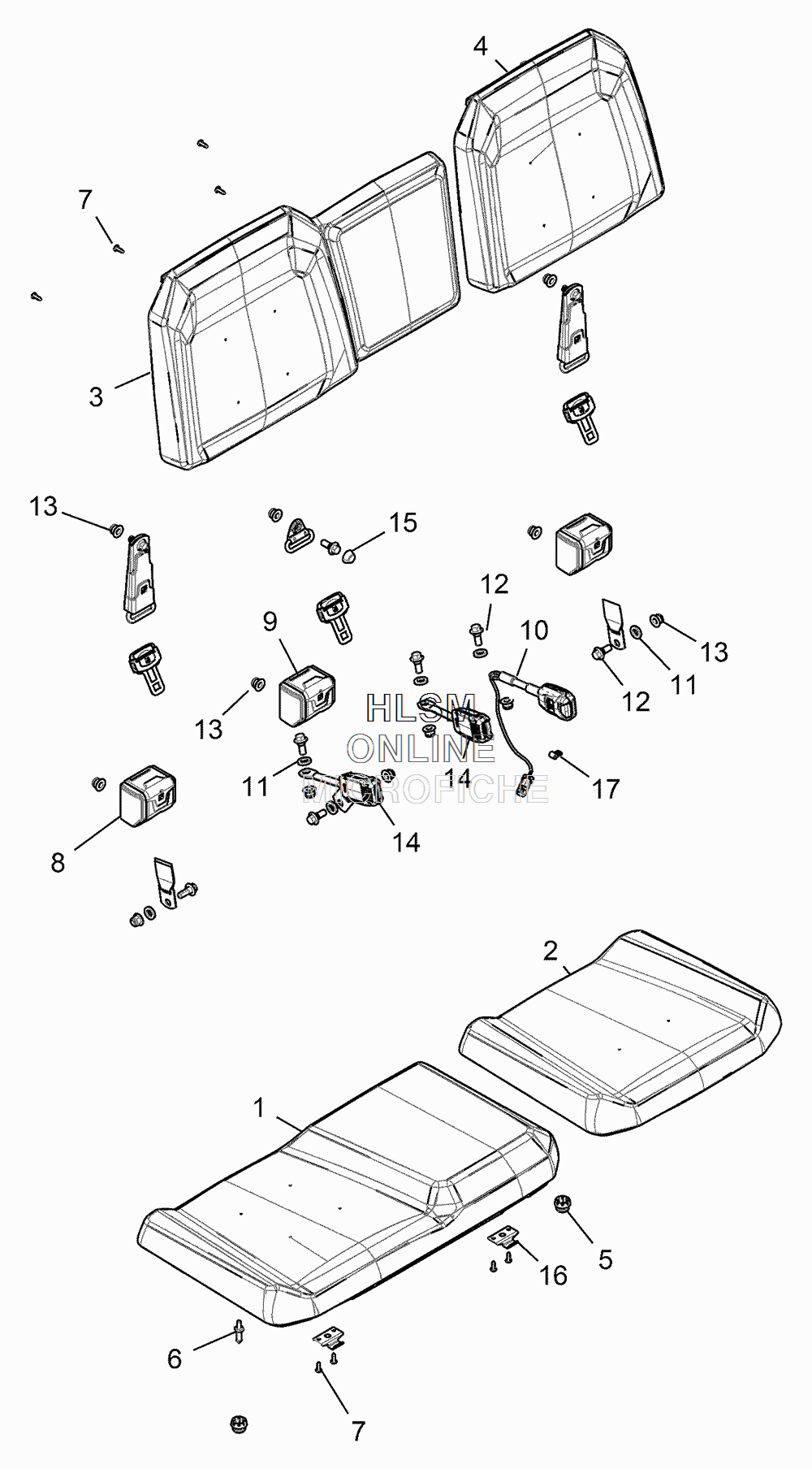

SEAT- 60/40 для Polaris RANGER XP 900 (SUNSET RED) [R16RTE87AS] - 2016 года выпуска
-
№АртикулНазвание
-
12685141 ASM-SEAT,BTM,60, BLACK/S.RED (INCL 6,QTY 4 OF 7) (E87AS)ASM-SEAT,BTM,60, BLACK/S.RED (INCL 6,QTY 4 OF 7) (E87AS)
-
12685350 COVERING-BTM 60, BLACK/S.RED (E87AS)COVERING-BTM 60, BLACK/S.RED (E87AS)
-
22685143 ASM-SEAT,BTM,40, BLACK/S.RED (E87AS)ASM-SEAT,BTM,40, BLACK/S.RED (E87AS)
-
22685360 COVERING-BTM 40, BLACK/S.RED (E87AS)COVERING-BTM 40, BLACK/S.RED (E87AS)
-
32685140 ASM-SEAT,BACK,60, BLACK/S.RED (E87AS) (U87AS)ASM-SEAT,BACK,60, BLACK/S.RED (E87AS) (U87AS)
-
32685345 COVERING-BACK 60, BLACK/S.RED (E87AS) (U87AS)COVERING-BACK 60, BLACK/S.RED (E87AS) (U87AS)
-
42685142 ASM-SEAT,BACK,40, BLACK/S.RED (E87AS) (U87AS)ASM-SEAT,BACK,40, BLACK/S.RED (E87AS) (U87AS)
-
42685355 COVERING-BACK 40, BLACK/S.RED (E87AS) (U87AS)COVERING-BACK 40, BLACK/S.RED (E87AS) (U87AS)
-
55439179 GROMMETGROMMET
-
65910404 PIN, SEAT LATCHPIN, SEAT LATCH
-
77519045 SCREWSCREW
-
82635118 ASM., SEAT BELT, 3 POINTASM., SEAT BELT, 3 POINT
-
92635052 ASM., SEAT BELT, 3 POINT, CENTERASM., SEAT BELT, 3 POINT, CENTER
-
102635609 BUCKLE, SEAT BELT, 90, SWITCHBUCKLE, SEAT BELT, 90, SWITCH
-
115813829 WASHER, RUBBERWASHER, RUBBER
-
127519770 SCREWSCREW
-
137547441 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
142635235 BUCKLE, SEAT BELT, PASSENGERBUCKLE, SEAT BELT, PASSENGER
-
155450708 CAP, BOLT HEADCAP, BOLT HEAD
-
165256836 BRACKET, SEAT HINGEBRACKET, SEAT HINGE
-
177081246 CLAMP, WIRE/TUBE .25 DIACLAMP, WIRE/TUBE .25 DIA
