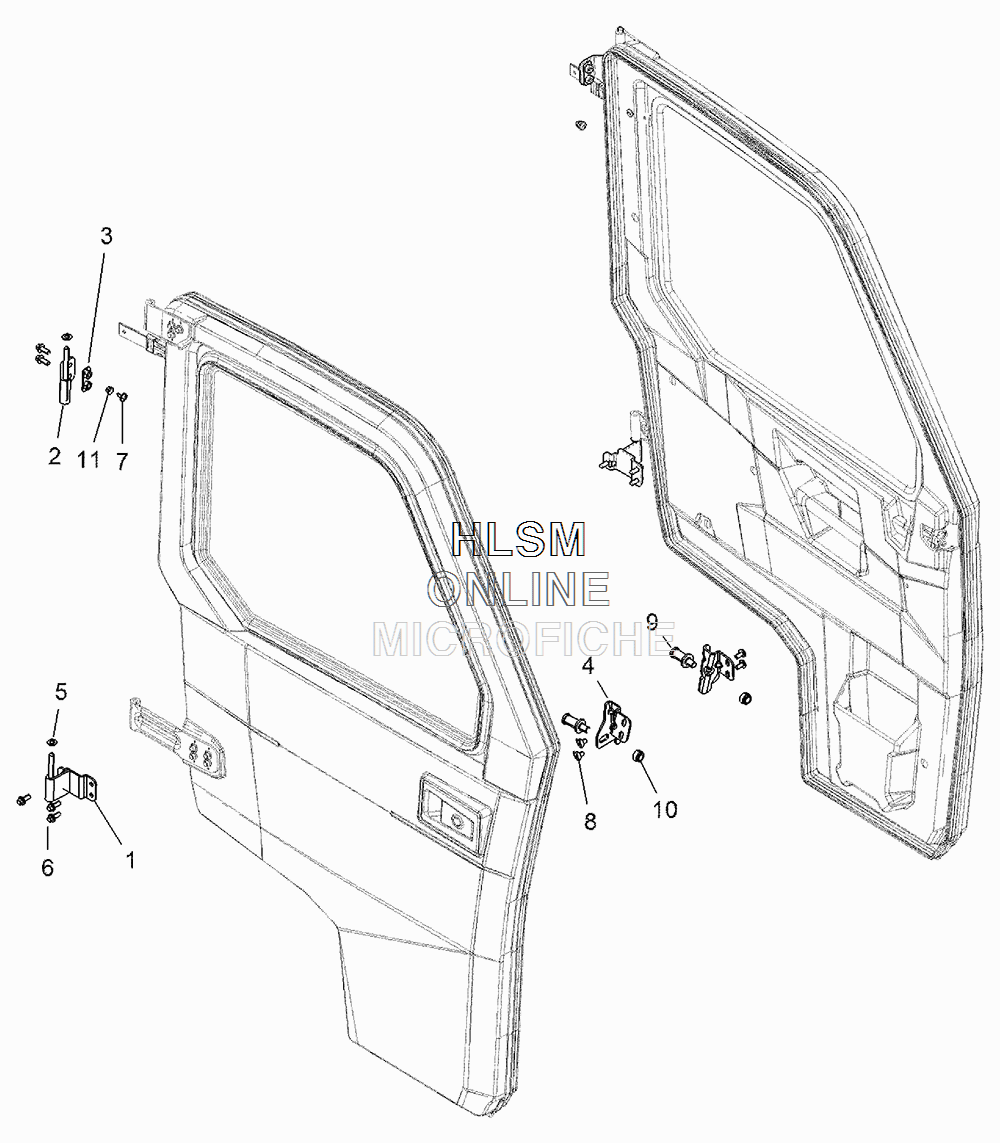

DOOR MOUNTING для Polaris RANGER XP 900 (SUNSET RED (NORTHSTAR EDITION) [R16RTU87AS] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    1018772-458 HINGE, LOWER, (LEFT HAND), BLACK
    HINGE, LOWER, (LEFT HAND), BLACK
  • 1
    1018773-458 HINGE, LOWER, (RIGHT HAND), BLACK
    HINGE, LOWER, (RIGHT HAND), BLACK
  • 2
    1018774-458 HINGE, UPPER, (LEFT HAND), BLACK
    HINGE, UPPER, (LEFT HAND), BLACK
  • 2
    1018775-458 HINGE, UPPER, (RIGHT HAND), BLACK
    HINGE, UPPER, (RIGHT HAND), BLACK
  • 3
    5256140-458 PLATE, HINGE, BLACK
    PLATE, HINGE, BLACK
  • 4
    5256943-458 BRACKET, STRIKER, ADJUST, (LEFT HAND), BLACK
    BRACKET, STRIKER, ADJUST, (LEFT HAND), BLACK
  • 4
    5256944-458 BRACKET, STRIKER, ADJUST, (RIGHT HAND), BLACK
    BRACKET, STRIKER, ADJUST, (RIGHT HAND), BLACK
  • 5
    5439712 WASHER
    WASHER
  • 6
    7517838 SCREW
    SCREW
  • 7
    7519650 SCREW
    SCREW
  • 8
    7519109 SCREW
    SCREW
  • 9
    7519358 PIN, STRIKER
    PIN, STRIKER
  • 10
    7540000 NUT, NYLOK
    NUT, NYLOK
  • 11
    7547339 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
