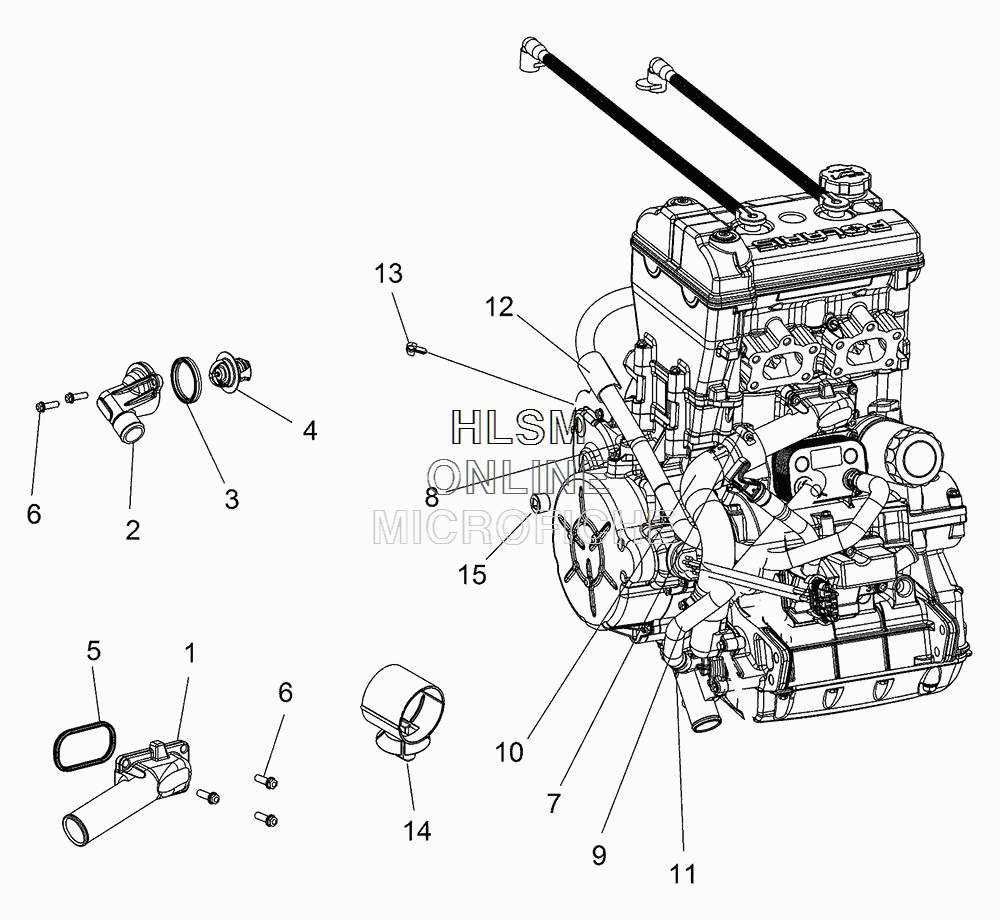

COOLING SYSTEM -THERMOSTAT AND BYPASS для Polaris RANGER XP 900 (SUNSET RED (NORTHSTAR EDITION) [R16RTU87AS] - 2016 года выпуска
-
№АртикулНазвание
-
15632557 COVER, WATER INLET, CASTCOVER, WATER INLET, CAST
-
25632606 COVER, THERMOSTATCOVER, THERMOSTAT
-
35413948 SEAL, THERMOSTATSEAL, THERMOSTAT
-
47052496 THERMOSTATTHERMOSTAT
-
55813736 GASKET, WATER, INLETGASKET, WATER, INLET
-
67518576 SCREWSCREW
-
77081192 CLAMP, HOSECLAMP, HOSE
-
85414209 HOSE, BYPASS LINEHOSE, BYPASS LINE
-
95414282 HOSE, OIL COOLER OUTLETHOSE, OIL COOLER OUTLET
-
105414208 HOSE, WATER PUMP, OUT, FORMEDHOSE, WATER PUMP, OUT, FORMED
-
117081026 CLAMP, HOSE, SPRINGCLAMP, HOSE, SPRING
-
125258852 BRACKET, BYPASS HOSEBRACKET, BYPASS HOSE
-
137081477 CLIP, WIRECLIP, WIRE
-
145415088 CLIP, HOSECLIP, HOSE
-
157051520 PLUG-1/2-14 NPTPLUG-1/2-14 NPT
