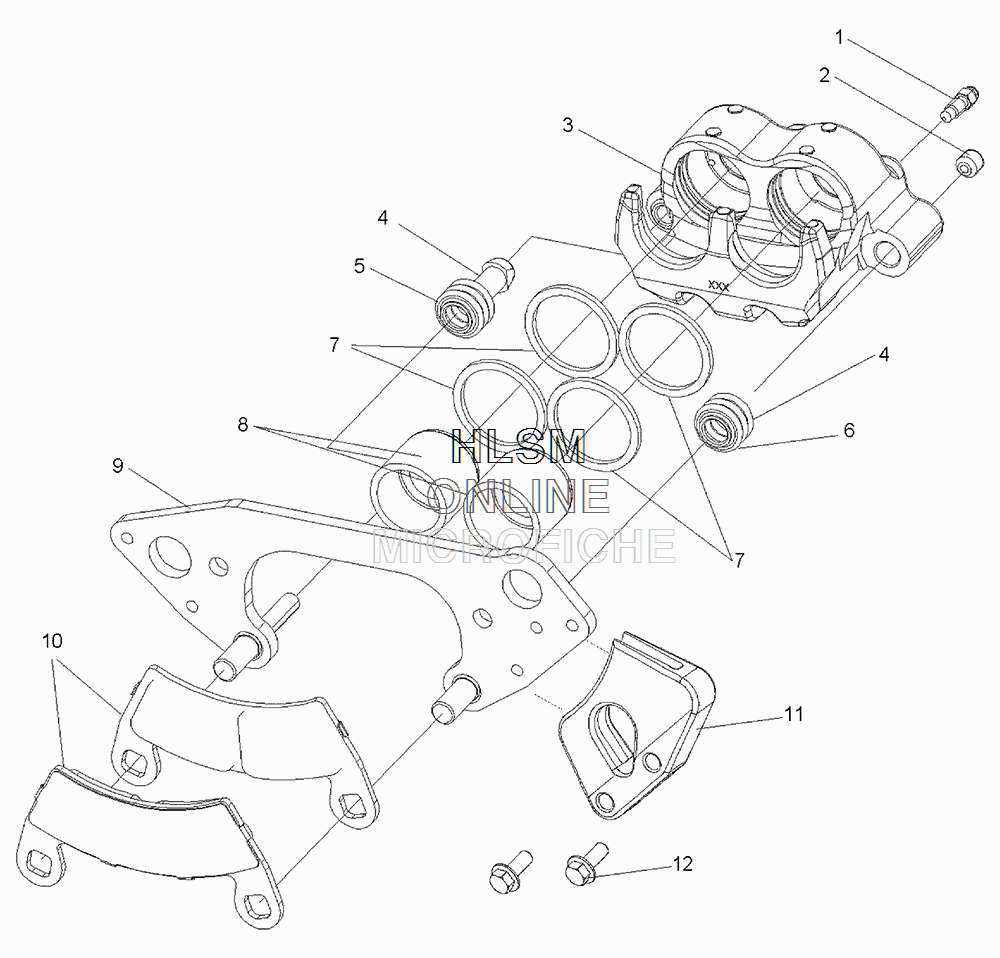

FRONT CALIPER для Polaris RANGER XP 900 (POLARIS PURSUIT CAMO (HUNTER DELUXE EDITION) [R16RTU87A9] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1912255 ASM., CALIPER, BRAKE, DOUBLE BORE, (LEFT HAND) (INCL. 1-10)
    ASM., CALIPER, BRAKE, DOUBLE BORE, (LEFT HAND) (INCL. 1-10)
  • 1912256 ASM., CALIPER, BRAKE, DOUBLE BORE, (RIGHT HAND) (INCL. 1-10)
    ASM., CALIPER, BRAKE, DOUBLE BORE, (RIGHT HAND) (INCL. 1-10)
  • 1
    7081343 SCREW, BLEEDER
    SCREW, BLEEDER
  • 2
    7518863 SCREW, SOCKET SET
    SCREW, SOCKET SET
  • 4
    1930642 KIT, FRONT BRAKE BOOT (INCL. 5,6)
    KIT, FRONT BRAKE BOOT (INCL. 5,6)
  • 5
    5412505 BOOT, BUSHING
    BOOT, BUSHING
  • 6
    5412506 BOOT, PIN SEAL
    BOOT, PIN SEAL
  • 7
    5412907 SEAL, CALIPER, INNER
    SEAL, CALIPER, INNER
  • 8
    5138774 PISTON, CALIPER
    PISTON, CALIPER
  • 9
    1912496 ASM., CALIPER, MOUNT
    ASM., CALIPER, MOUNT
  • 10
    2203747 KIT, BRAKE PAD ASM. (CONTAINS 2 PADS)
    KIT, BRAKE PAD ASM. (CONTAINS 2 PADS)
  • 11
    5438948 SCRAPER, BRAKE, FRONT
    SCRAPER, BRAKE, FRONT
  • 12
    7516823 SCREW
    SCREW
