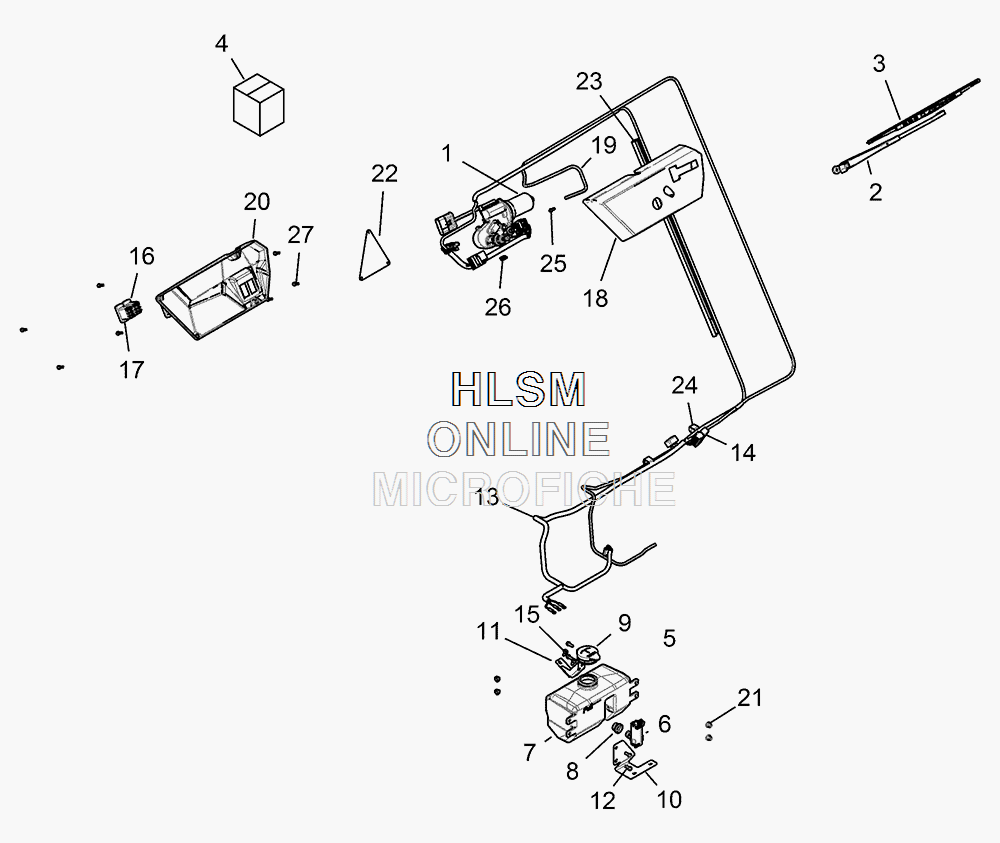

WINDSHIELD WIPER для Polaris RANGER XP 900 (POLAARIS PURSUIT CAMO) [R16RTA87A9] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    2204914 MOTOR, WIPER WSHLD
    MOTOR, WIPER WSHLD
  • 2
    2204915 ARM, WIPER WSHLD
    ARM, WIPER WSHLD
  • 3
    2204916 BLADE, WIPER WSHLD
    BLADE, WIPER WSHLD
  • 4
    2205572 HDWR, WIPER MTR INSTL WSHLD (INCL 25-28)
    HDWR, WIPER MTR INSTL WSHLD (INCL 25-28)
  • 5
    2205139 ASSY, BOTTLE WASHER WSHLD (INCL 6-9)
    ASSY, BOTTLE WASHER WSHLD (INCL 6-9)
  • 6
    2205140 PUMP, WASHER WIPER FLUID
    PUMP, WASHER WIPER FLUID
  • 7
    5450700 BOTTLE, WASHER WIPER FLUID
    BOTTLE, WASHER WIPER FLUID
  • 8
    5414883 GROMMET, PUMP WSHR FLUID
    GROMMET, PUMP WSHR FLUID
  • 9
    5450701 LID, BOTTLE WASHER
    LID, BOTTLE WASHER
  • 10
    5258010 BRACKET, WASHER BOTTLE FRONT
    BRACKET, WASHER BOTTLE FRONT
  • 11
    5258011 BRACKET, WASHER BOTTLE SIDE
    BRACKET, WASHER BOTTLE SIDE
  • 12
    7518548 SCREW
    SCREW
  • 13
    2413266 HARNESS, WIPER (INCL 14)
    HARNESS, WIPER (INCL 14)
  • 14
    4011998 RELAY, MICRO SPDT
    RELAY, MICRO SPDT
  • 15
    7519045 SCREW
    SCREW
  • 16
    4014071 SWITCH, WIPER WASH
    SWITCH, WIPER WASH
  • 17
    4014072 SWITCH, WIPER LOW HIGH
    SWITCH, WIPER LOW HIGH
  • 18
    5450703 MNT, WIPER WSHLD
    MNT, WIPER WSHLD
  • 19
    5414882 HOSE, WIPER WSHR FLUID
    HOSE, WIPER WSHR FLUID
  • 20
    5450702 COVER, WIPER WSHLD
    COVER, WIPER WSHLD
  • 21
    7547274 NUT, NYLOCK
    NUT, NYLOCK
  • 22
    5258170 RETAINER, MOTOR WIPER
    RETAINER, MOTOR WIPER
  • 23
    5414966 GUIDE, HARNESS
    GUIDE, HARNESS
  • 24
    5415017 GUIDE, HARNESS
    GUIDE, HARNESS
  • 25
    7052581 FITTING, BARB HOSE
    FITTING, BARB HOSE
  • 26
    7081936 CLIP, HARNESS
    CLIP, HARNESS
  • 27
    7512026 SCREW
    SCREW
