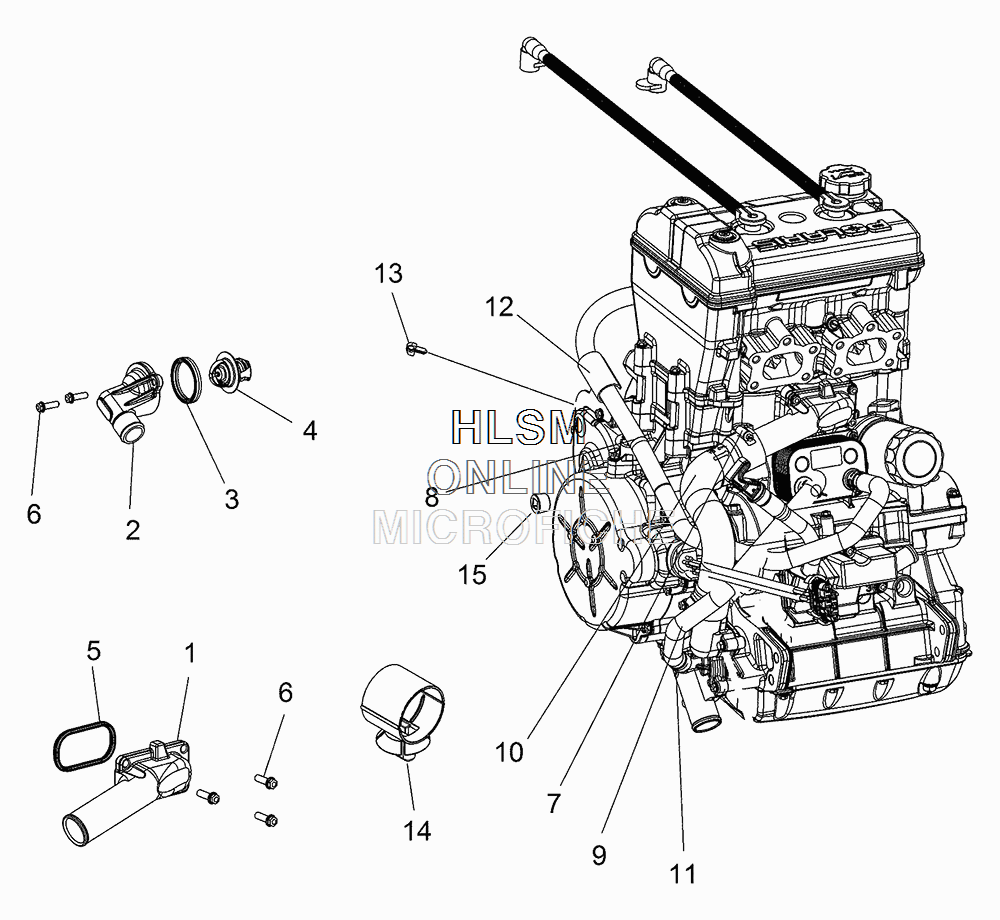

COOLING SYSTEM -THERMOSTAT AND BYPASS для Polaris RANGER XP 900 (POLAARIS PURSUIT CAMO) [R16RTA87A9] - 2016 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    5632557 COVER, WATER INLET, CAST
    COVER, WATER INLET, CAST
  • 2
    5632606 COVER, THERMOSTAT
    COVER, THERMOSTAT
  • 3
    5413948 SEAL, THERMOSTAT
    SEAL, THERMOSTAT
  • 4
    7052496 THERMOSTAT
    THERMOSTAT
  • 5
    5813736 GASKET, WATER, INLET
    GASKET, WATER, INLET
  • 6
    7518576 SCREW
    SCREW
  • 7
    7081192 CLAMP, HOSE
    CLAMP, HOSE
  • 8
    5414209 HOSE, BYPASS LINE
    HOSE, BYPASS LINE
  • 9
    5414282 HOSE, OIL COOLER OUTLET
    HOSE, OIL COOLER OUTLET
  • 10
    5414208 HOSE, WATER PUMP, OUT, FORMED
    HOSE, WATER PUMP, OUT, FORMED
  • 11
    7081026 CLAMP, HOSE, SPRING
    CLAMP, HOSE, SPRING
  • 12
    5258852 BRACKET, BYPASS HOSE
    BRACKET, BYPASS HOSE
  • 13
    7081477 CLIP, WIRE
    CLIP, WIRE
  • 14
    5415088 CLIP, HOSE
    CLIP, HOSE
  • 15
    7051520 PLUG-1/2-14 NPT
    PLUG-1/2-14 NPT
