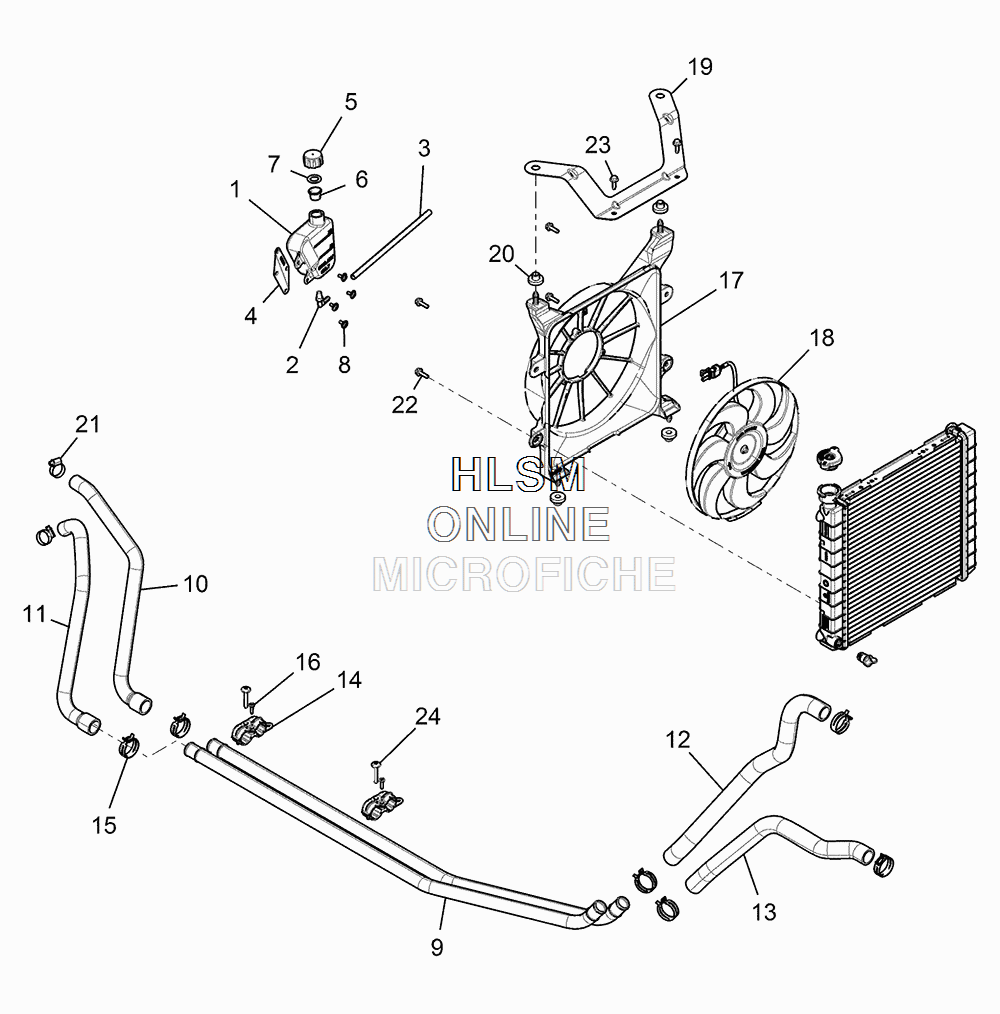

COOLING SYSTEM для Polaris RANGER ETX (WHITE LIGHTNING) [RMA32A2] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    5436936 TANK, SURGE
    TANK, SURGE
  • 2
    7052065 FITTING, 90 DEG
    FITTING, 90 DEG
  • 3
    8450003-1525 LINE, FUEL
    LINE, FUEL
  • 4
    5254763 BRACKET, SURGE TANK
    BRACKET, SURGE TANK
  • 5
    5430743 CAP, OVER FLOW BOTTLE, DRILLED
    CAP, OVER FLOW BOTTLE, DRILLED
  • 6
    5433774 PLUG, CAP
    PLUG, CAP
  • 7
    5810279 GASKET, OVERFLOW CAP
    GASKET, OVERFLOW CAP
  • 8
    7512084 SCREW
    SCREW
  • 9
    5139239 TUBE-COOLANT,1''
    TUBE-COOLANT,1''
  • 10
    5415051 HOSE-ENGINE OUTLET,REAR
    HOSE-ENGINE OUTLET,REAR
  • 11
    5415052 HOSE-ENGINE IN,REAR
    HOSE-ENGINE IN,REAR
  • 12
    5415269 HOSE-UPPER,RAD
    HOSE-UPPER,RAD
  • 13
    5415526 HOSE-LOWER,RAD
    HOSE-LOWER,RAD
  • 14
    5451221 BRACKET-COOLANT TUBE
    BRACKET-COOLANT TUBE
  • 15
    7080843 SPRINGBAND-CLAMP 32/12,BROWN
    SPRINGBAND-CLAMP 32/12,BROWN
  • 16
    7512026 SCR-#10X3/4-HI/LO-PN-T25,TRX-M
    SCR-#10X3/4-HI/LO-PN-T25,TRX-M
  • 17
    2413196 FAN-ASSEMBLY,SHROUD (INCL. 18)
    FAN-ASSEMBLY,SHROUD (INCL. 18)
  • 18
    2413197 FAN-ASSEMBLY
    FAN-ASSEMBLY
  • 19
    5260846-458 BRKT-RAD MNT, BLACK
    BRKT-RAD MNT, BLACK
  • 20
    7052028 GROMMET-FLANGED,.36X.56X1.06
    GROMMET-FLANGED,.36X.56X1.06
  • 21
    7081415 CLAMP-CONSTANT TENSION,16-27
    CLAMP-CONSTANT TENSION,16-27
  • 22
    7516822 SCR-M6X1.0X20-HX/FL-Y/D
    SCR-M6X1.0X20-HX/FL-Y/D
  • 23
    7518529 SCR-M6X1.0X20,HXHD,FLG,TDFM,BL
    SCR-M6X1.0X20,HXHD,FLG,TDFM,BL
  • 24
    7519001 SCR-M6X1X40,TR/TX-BLACK
    SCR-M6X1X40,TR/TX-BLACK
