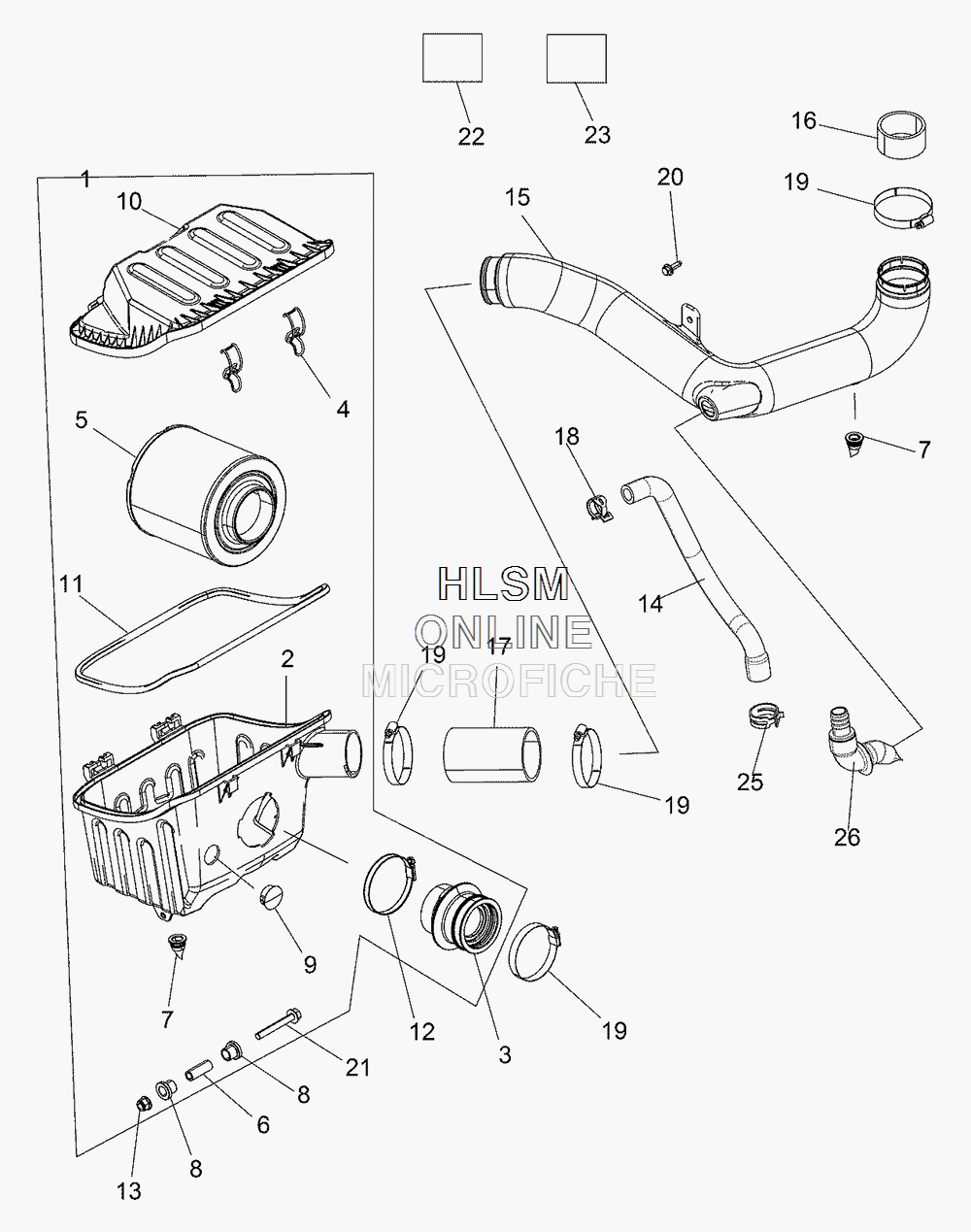

AIR INTAKE SYSTEM W/CLUTCH для Polaris RANGER ETX (WHITE LIGHTNING) [RMA32A2] - 2016 года выпуска`
-
№АртикулНазвание
-
11204990 ASM., AIRBOX (INCL. 1-12,22,23)ASM., AIRBOX (INCL. 1-12,22,23)
-
25450174 BOX, AIR INTAKEBOX, AIR INTAKE
-
35414972 BOOT, ENGINE, INTAKEBOOT, ENGINE, INTAKE
-
47081707 CLIP, AIRBOXCLIP, AIRBOX
-
57082037 FILTER, AIRFILTER, AIR
-
65138987 SHAFT, COMPRESSIONSHAFT, COMPRESSION
-
75414472 PLUG, DRAINPLUG, DRAIN
-
85414719 BUSHING, MOUNTBUSHING, MOUNT
-
95414780 PLUG, 1 INCHPLUG, 1 INCH
-
105450175 COVER, AIRBOXCOVER, AIRBOX
-
115814106 SEAL, AIR BOX COVERSEAL, AIR BOX COVER
-
127080707 CLAMP, BAND, NARROWCLAMP, BAND, NARROW
-
137547332 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
145415375 HOSE, VENT, ENGINEHOSE, VENT, ENGINE
-
155414503 DUCT, INTAKE, AIRBOXDUCT, INTAKE, AIRBOX
-
165415033 SEAL, ENGINE, INLETSEAL, ENGINE, INLET
-
175414748 HOSE, ENGINE, INLETHOSE, ENGINE, INLET
-
187081719 CLAMP, HOSE, SPRINGCLAMP, HOSE, SPRING
-
197081623 CLAMP, HOSECLAMP, HOSE
-
207518529 SCREWSCREW
-
217519298 SCREWSCREW
-
227180122 DECAL, CAUTION, HEADERDECAL, CAUTION, HEADER
-
237181728 DECAL, CAUTION INFODECAL, CAUTION INFO
-
241204991 ASM., AIRBOX, BASE (INCL. 2-4)ASM., AIRBOX, BASE (INCL. 2-4)
-
257081693 SPRINGBAND, CLAMPSPRINGBAND, CLAMP
-
267052626 ASM., BREATHER VALVEASM., BREATHER VALVE
