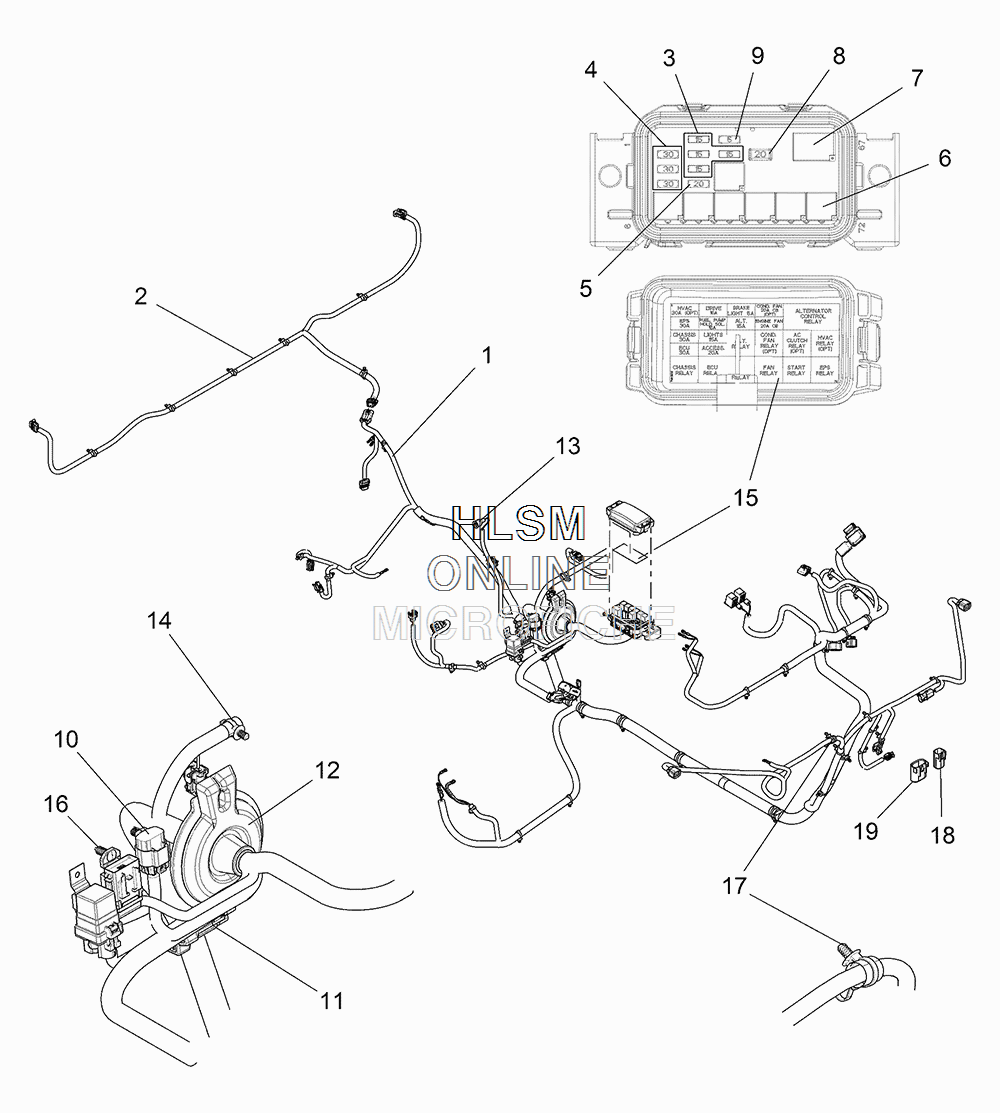

WIRING HARNESSES для Polaris RANGER CREW DIESEL (SAGE GREEN) [R16RVAD1A1] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    2412869 HARNESS, CHASSIS (INCL. 3-17)
    HARNESS, CHASSIS (INCL. 3-17)
  • 2
    2412870 HARNESS, BOX
    HARNESS, BOX
  • 3
    2410280 FUSE, MINI BLADE, 15 AMP
    FUSE, MINI BLADE, 15 AMP
  • 4
    2434015 FUSE, MAIN, 30 AMP
    FUSE, MAIN, 30 AMP
  • 5
    2434017 FUSE, PARK, 20 AMP
    FUSE, PARK, 20 AMP
  • 6
    4011283 RELAY, SPST
    RELAY, SPST
  • 7
    4011284 RELAY, SPDT
    RELAY, SPDT
  • 8
    4011372 BREAKER, CIRCUIT, 20 AMP
    BREAKER, CIRCUIT, 20 AMP
  • 9
    4011652 FUSE, MINI BLADE, 5 AMP
    FUSE, MINI BLADE, 5 AMP
  • 10
    4012170 COVER, DIAGNOSTIC, W/CLIP
    COVER, DIAGNOSTIC, W/CLIP
  • 11
    4013200 TVS, 30 VOLT
    TVS, 30 VOLT
  • 12
    5414435 GROMMET
    GROMMET
  • 13
    5451468 BOOT, OIL PRESSURE SWITCH
    BOOT, OIL PRESSURE SWITCH
  • 14
    7081496 CLIP, ROUTING
    CLIP, ROUTING
  • 15
    7180966 DECAL, FUSE BLOCK
    DECAL, FUSE BLOCK
  • 16
    7670101 CLIP, X-MASS TREE
    CLIP, X-MASS TREE
  • 17
    7081916 STRAP, DOUBLE LOOP
    STRAP, DOUBLE LOOP
  • 18
    4014235 CONNECTOR, CAP, EPS SIGNAL
    CONNECTOR, CAP, EPS SIGNAL
  • 19
    4014236 CONNECTOR, CAP, EPS POWER
    CONNECTOR, CAP, EPS POWER
