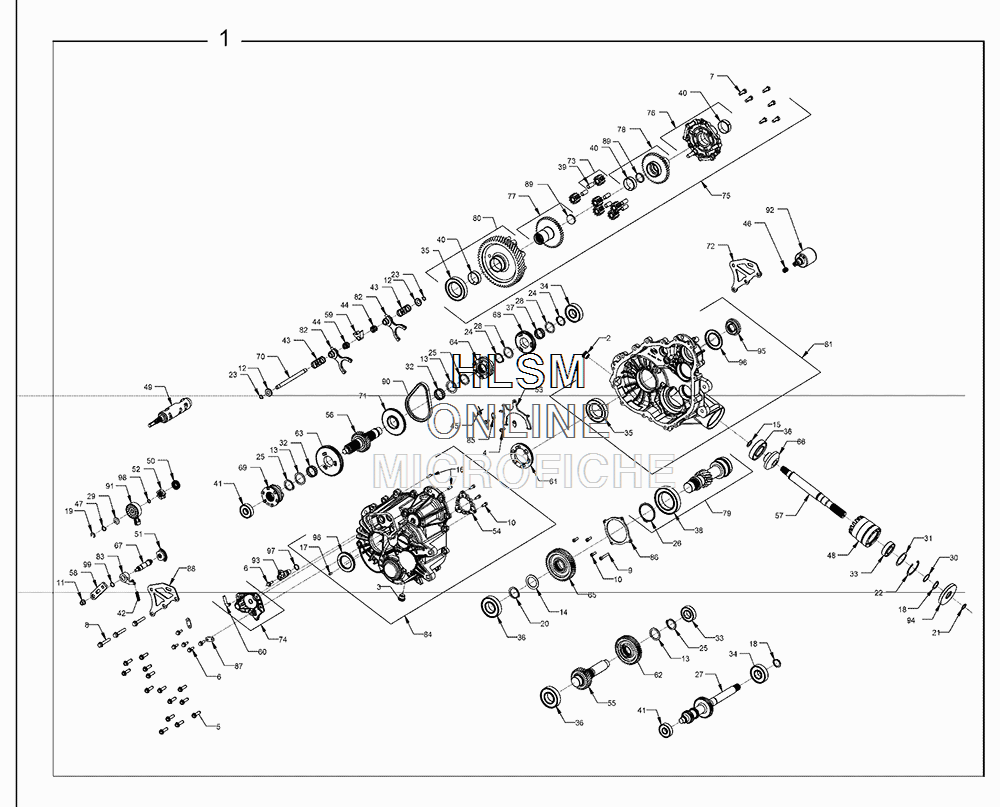

MAIN GEARCASE INTERNAL (2X4) для Polaris RANGER CREW DIESEL (SAGE GREEN) [R16RVAD1A1] - 2016 года выпуска`
-
№АртикулНазвание
-
11333466 ASM., GEARCASE (INCL. ALL)ASM., GEARCASE (INCL. ALL)
-
23234755 PLUG M18 X 1.5PLUG M18 X 1.5
-
33234756 PLUG M18 X 1.5, MAGNETICPLUG M18 X 1.5, MAGNETIC
-
43234309 SCREW, TORX PAN HD M6 X 1 X 16SCREW, TORX PAN HD M6 X 1 X 16
-
53234898 SCREW, HEX FLANGE HEAD M8 X 1.25 X 30SCREW, HEX FLANGE HEAD M8 X 1.25 X 30
-
63235206 SCREW, HEX FLANGE HEAD M6 X 1 X 20SCREW, HEX FLANGE HEAD M6 X 1 X 20
-
73235096 SCREW, CAP HH M8-1.25 X 25SCREW, CAP HH M8-1.25 X 25
-
83235207 SCREW HEX FLANGE M8 X 50SCREW HEX FLANGE M8 X 50
-
93235208 SCREW, SOCKET HEAD CAP, M6 X 1.0 X 40SCREW, SOCKET HEAD CAP, M6 X 1.0 X 40
-
103235332 SCREW, SOCKET HEAD CAP, M6 X 1.0 X 18SCREW, SOCKET HEAD CAP, M6 X 1.0 X 18
-
113235210 NUT, LOCK HEX FLANGE NYLON M8 X 1.25NUT, LOCK HEX FLANGE NYLON M8 X 1.25
-
123234091 WASHER CUPWASHER CUP
-
133235211 WASHER 32.3 X 42 X 1.5WASHER 32.3 X 42 X 1.5
-
143235212 WASHER 35.6 X 57 X 1.5WASHER 35.6 X 57 X 1.5
-
153235213 WASHER 17.3 X 25 X 1.5WASHER 17.3 X 25 X 1.5
-
163234340 PIN, DOWEL 6 X 20PIN, DOWEL 6 X 20
-
177043746 PIN, SPRING SLOTTED 6 X 12PIN, SPRING SLOTTED 6 X 12
-
183233106 RING, RETAINING BASIC EXTERNAL .984RING, RETAINING BASIC EXTERNAL .984
-
193233834 RING SNAPRING SNAP
-
203233364 RING, RETAINING SHAFT, DIA. 1.375RING, RETAINING SHAFT, DIA. 1.375
-
213234318 RING, RETAINING EXTERNAL SHR-66RING, RETAINING EXTERNAL SHR-66
-
223234269 RING, RETAINING BASIC INTERNAL 2.047RING, RETAINING BASIC INTERNAL 2.047
-
233234090 RING, RETAINING BASIC EXTERNAL .428RING, RETAINING BASIC EXTERNAL .428
-
243234205 RING, RETAININGRING, RETAINING
-
253235214 RING, EXTERNAL SNAP 32.00 X 2.40RING, EXTERNAL SNAP 32.00 X 2.40
-
263235216 RING, RETAINING VSH-237RING, RETAINING VSH-237
-
273235395 SHAFT, BOSS LW UTILITY, INPUT, AVALANCHESHAFT, BOSS LW UTILITY, INPUT, AVALANCHE
-
283233378 WASHER, THRUST 1.187 X 1.500 X .0600WASHER, THRUST 1.187 X 1.500 X .0600
-
293234642 WASHER, THRUST .446 X .88 X .025WASHER, THRUST .446 X .88 X .025
-
303234272 SHIM 1.180 OD X .995 IDSHIM 1.180 OD X .995 ID
-
313234273 SHIM 2.040 OD X 1.63 IDSHIM 2.040 OD X 1.63 ID
-
323233014 BEARING, NEEDLE CAGE ASSYBEARING, NEEDLE CAGE ASSY
-
333233019 BEARING, BALL 6205 C3 25X52X15BEARING, BALL 6205 C3 25X52X15
-
343233020 BEARING, BALL 6305 C3, 25 X 62 X 17BEARING, BALL 6305 C3, 25 X 62 X 17
-
353233268 BEARING, BALL 6010 C3 50X80X16BEARING, BALL 6010 C3 50X80X16
-
363234065 BEARING, BALL 6207 C3 35X72X17BEARING, BALL 6207 C3 35X72X17
-
373233384 BEARING, NEEDLE CAGE ASSYBEARING, NEEDLE CAGE ASSY
-
383235218 BEARING, BALL 6012 C3 60 X 95 X 18BEARING, BALL 6012 C3 60 X 95 X 18
-
393234309 BEARING, PLAIN 10X12X25BEARING, PLAIN 10X12X25
-
403234241 PLAIN, BEARING 40X44X15PLAIN, BEARING 40X44X15
-
413234652 BEARING, BALL 6303 17 X 47 X 14BEARING, BALL 6303 17 X 47 X 14
-
423233830 SPRING, COMPRESSION .360 OD X 1.125SPRING, COMPRESSION .360 OD X 1.125
-
433234078 SPRING, COMPRESSION .92 O.D. X 2.000SPRING, COMPRESSION .92 O.D. X 2.000
-
443234089 SPRING, COMPRESSION .46 I.D. X .73SPRING, COMPRESSION .46 I.D. X .73
-
453234276 SPRING, TORSION RETURNSPRING, TORSION RETURN
-
463234277 SPRING, COMPRESSION .54 OD X.44 ID X.050 WIRESPRING, COMPRESSION .54 OD X.44 ID X.050 WIRE
-
473235327 SPRING, WASHERSPRING, WASHER
-
483234278 TUBE, SNORKEL MACHTUBE, SNORKEL MACH
-
493235463 DRUM, SHIFT MACHDRUM, SHIFT MACH
-
503233839 GEAR, SECTOR 16TGEAR, SECTOR 16T
-
513233832 GEAR, SECTOR 31TGEAR, SECTOR 31T
-
523235603 STAR, DETENTSTAR, DETENT
-
533235455 FORK, PIVOT SHIFT REAR DIFFFORK, PIVOT SHIFT REAR DIFF
-
543235456 PLATE, PARK 12-FACEPLATE, PARK 12-FACE
-
553235223 SHAFT, IDLER 29TSHAFT, IDLER 29T
-
563235224 SHAFT, REVERSE 29TSHAFT, REVERSE 29T
-
573235394 SHAFT, FRONT OUTPUTSHAFT, FRONT OUTPUT
-
583235474 BELLCRANK, TITANBELLCRANK, TITAN
-
593234073 COLLAR, SHIFTCOLLAR, SHIFT
-
603234230 TUBE, VENT 90 -1/4 IN. HOSETUBE, VENT 90 -1/4 IN. HOSE
-
613234928 DOG, ENGAGEMENTDOG, ENGAGEMENT
-
623235229 GEAR, 44T STAGE 2GEAR, 44T STAGE 2
-
633235232 GEAR, LOW 67TGEAR, LOW 67T
-
643235233 ENGAGEMENT DOG, 6-FACEENGAGEMENT DOG, 6-FACE
-
653235236 GEAR, 46T STAGE 3GEAR, 46T STAGE 3
-
663235237 GEAR, 13T SNORKELGEAR, 13T SNORKEL
-
673235238 SHAFT SHIFTSHAFT SHIFT
-
683235396 GEAR, 49TGEAR, 49T
-
693235457 SHIFT DOG, PARKSHIFT DOG, PARK
-
703235542 RAIL, SHIFT SHAFTRAIL, SHIFT SHAFT
-
713235755 SPROCKET 48T 6-FACESPROCKET 48T 6-FACE
-
723235510 WELDMENT REAR MOUNT BRACKETWELDMENT REAR MOUNT BRACKET
-
733234469 PLANET GEAR SUBASSEMBLYPLANET GEAR SUBASSEMBLY
-
743235713 SUBASSEMBLY, SECTOR COVER (INCLUDES ALL HARDWARE)SUBASSEMBLY, SECTOR COVER (INCLUDES ALL HARDWARE)
-
753235373 SUBASSEMBLY, AVALANCHE DIFFERENTIALSUBASSEMBLY, AVALANCHE DIFFERENTIAL
-
763235376 SUBASSEMBLY DIFFERENTIAL COVERSUBASSEMBLY DIFFERENTIAL COVER
-
773235374 SUBASSEMBLY 39T SIDE GEARSUBASSEMBLY 39T SIDE GEAR
-
783235375 SUBASSEMBLY 39T SIDE GEAR DISCONNECTSUBASSEMBLY 39T SIDE GEAR DISCONNECT
-
793235336 SUBASSEMBLY PINIONSUBASSEMBLY PINION
-
803235378 SUBASSEMBLY GEAR, 53TSUBASSEMBLY GEAR, 53T
-
813235422 SUBASSEMBLY LEFT HAND CASESUBASSEMBLY LEFT HAND CASE
-
823235454 SUBASSEMBLY SHIFT FORKSUBASSEMBLY SHIFT FORK
-
833235452 SUBASSEMBLY, PAWL DETENT, ROLLERSUBASSEMBLY, PAWL DETENT, ROLLER
-
843235756 SUBASSEMBLY RIGHT HAND COVERSUBASSEMBLY RIGHT HAND COVER
-
853234934 RETAINER, FORKRETAINER, FORK
-
863235241 COVER, BEARING CENTER DRIVECOVER, BEARING CENTER DRIVE
-
873235350 BRACKET WIRE HARNESSBRACKET WIRE HARNESS
-
883235511 BRACKET, REAR MOUNTBRACKET, REAR MOUNT
-
893234249 PLUG, EXPANSION 1-1/4PLUG, EXPANSION 1-1/4
-
903234737 CHAIN, SILENT, TYPE 101 .25P X .40W X 58LCHAIN, SILENT, TYPE 101 .25P X .40W X 58L
-
917661999 SWITCH, ROTARY 2 PIN RESISTIVESWITCH, ROTARY 2 PIN RESISTIVE
-
923235478 SOLENOIDSOLENOID
-
934013908 SENSOR SPEEDSENSOR SPEED
-
943234113 SEAL, TRIPLE LIP 25 X 80 X 10SEAL, TRIPLE LIP 25 X 80 X 10
-
953234851 SEAL, DUAL LIP 25 X 47 VITONSEAL, DUAL LIP 25 X 47 VITON
-
963235052 SEAL, TRIPLE LIP, VITON 40 X 70 X 7SEAL, TRIPLE LIP, VITON 40 X 70 X 7
-
973234302 O-RINGO-RING
-
983233836 O-RING, -012 VITONO-RING, -012 VITON
-
993233828 O-RING, -014 VITONO-RING, -014 VITON
