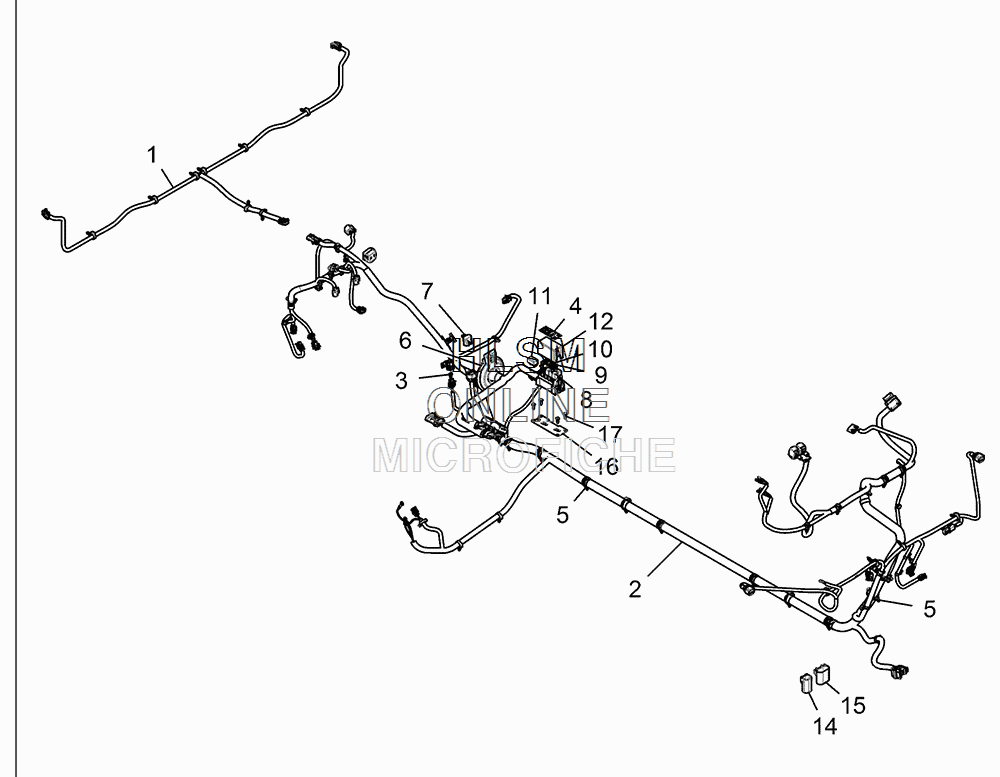

WIRE HARNESSES для Polaris RANGER CREW 900-5 EPS (VELOCITY BLUE) [R16RUE87AV] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    2411801 HARNESS, BOX
    HARNESS, BOX
  • 2
    2413128 HARNESS, CHASSIS, CREW EPS (INCL. 2-12)
    HARNESS, CHASSIS, CREW EPS (INCL. 2-12)
  • 3
    2434015 FUSE-MAIN,30 AMP
    FUSE-MAIN,30 AMP
  • 4
    7177866 DECAL-RELAY/FUSE BLOCK
    DECAL-RELAY/FUSE BLOCK
  • 5
    7081496 CLIP-ROUTING
    CLIP-ROUTING
  • 6
    5414435 GROMMET-CHASSIS HARNESS
    GROMMET-CHASSIS HARNESS
  • 7
    4012170 COVER-DIAGNOSTIC,W/CLIP
    COVER-DIAGNOSTIC,W/CLIP
  • 8
    4011283 RELAY-SPST,SERIES 303,SEALED
    RELAY-SPST,SERIES 303,SEALED
  • 9
    2434017 FUSE-PARK,20 AMP
    FUSE-PARK,20 AMP
  • 10
    2434016 FUSE-IGNITION,10 AMP
    FUSE-IGNITION,10 AMP
  • 11
    2410881 BREAKER-CIRCUIT,20 AMP,SEALED
    BREAKER-CIRCUIT,20 AMP,SEALED
  • 12
    4012260 COVER-FUSEHOLDER
    COVER-FUSEHOLDER
  • 14
    4014235 CONNECTOR, CAP, EPS SIGNAL (NON-EPS)
    CONNECTOR, CAP, EPS SIGNAL (NON-EPS)
  • 15
    4014236 CONNECTOR, CAP, EPS POWER (NON-EPS)
    CONNECTOR, CAP, EPS POWER (NON-EPS)
  • 16
    5258150 PLATE, FUSE, MOUNT
    PLATE, FUSE, MOUNT
  • 17
    7519045 SCREW
    SCREW
