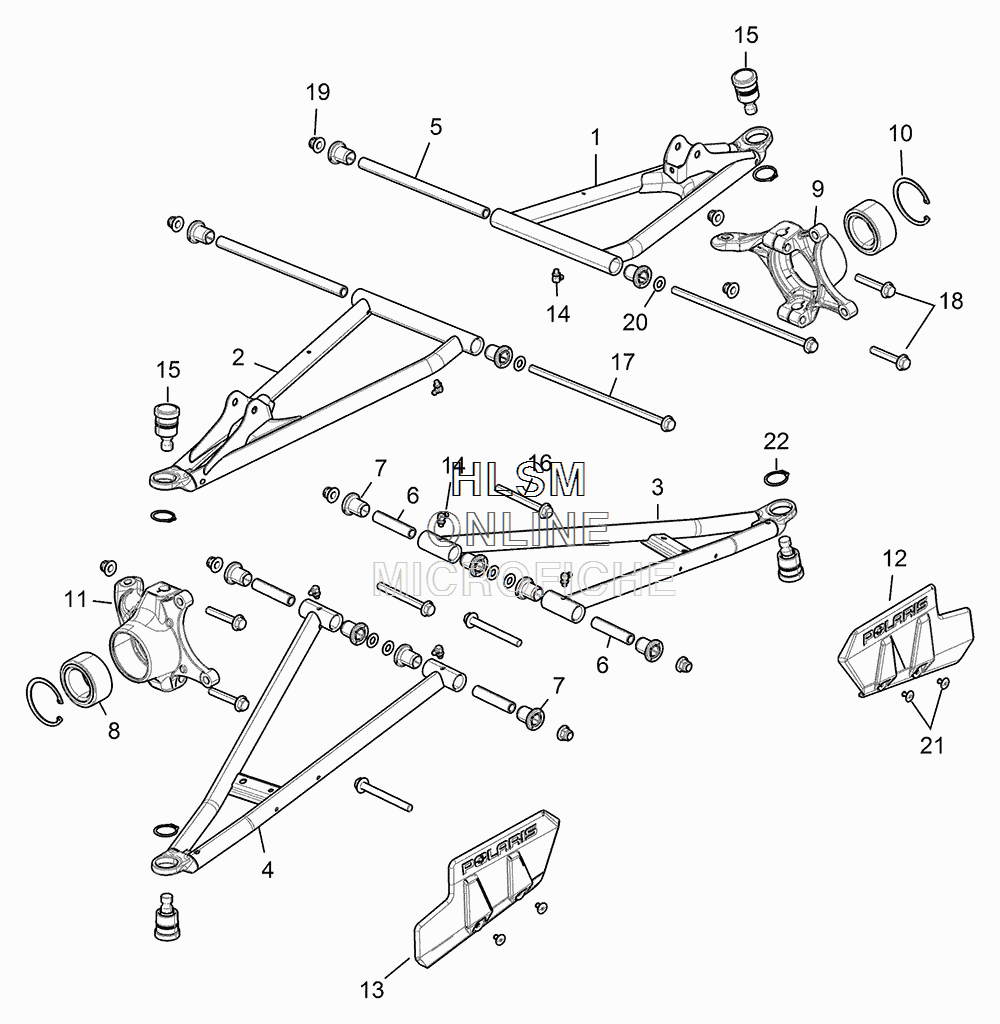

FRONT CONTROL ARMS для Polaris RANGER CREW 900-5 EPS (VELOCITY BLUE) [R16RUE87AV] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    1020887-689 A-ARM, FRONT, UPPER (LEFT HAND) - (VELOCITY BLUE) - (E87AV)
    A-ARM, FRONT, UPPER (LEFT HAND) - (VELOCITY BLUE) - (E87AV)
  • 2
    1020888-689 A-ARM, FRONT, UPPER (RIGHT HAND) - (VELOCITY BLUE) - (E87AV)
    A-ARM, FRONT, UPPER (RIGHT HAND) - (VELOCITY BLUE) - (E87AV)
  • 3
    1019668-689 A-ARM, FRONT, LOWER (LEFT HAND) - (VELOCITY BLUE) - (E87AV)
    A-ARM, FRONT, LOWER (LEFT HAND) - (VELOCITY BLUE) - (E87AV)
  • 4
    1019669-689 A-ARM, FRONT, LOWER (RIGHT HAND) - (VELOCITY BLUE) - (E87AV)
    A-ARM, FRONT, LOWER (RIGHT HAND) - (VELOCITY BLUE) - (E87AV)
  • 5
    5138791 SHAFT, PIVOT,250.28MM,15.88OD
    SHAFT, PIVOT,250.28MM,15.88OD
  • 6
    5138797 SHAFT, PIVOT,70.99MM,15.88OD
    SHAFT, PIVOT,70.99MM,15.88OD
  • 7
    5439874 BUSHING, STANDARD
    BUSHING, STANDARD
  • 8
    3514699 BEARING, BALL, SEALED
    BEARING, BALL, SEALED
  • 9
    5139976 CARRIER, BEARING, FRONT (LEFT HAND)
    CARRIER, BEARING, FRONT (LEFT HAND)
  • 10
    7710780 RING, RETAINING, INTERNAL
    RING, RETAINING, INTERNAL
  • 11
    5139977 CARRIER, BEARING, FRONT (RIGHT HAND)
    CARRIER, BEARING, FRONT (RIGHT HAND)
  • 12
    5437544-070 SHIELD, CV, FRONT (LEFT HAND) (BLACK)
    SHIELD, CV, FRONT (LEFT HAND) (BLACK)
  • 13
    5437545-070 SHIELD, CV, FRONT (RIGHT HAND) (BLACK)
    SHIELD, CV, FRONT (RIGHT HAND) (BLACK)
  • 14
    7080510 FITTING, ZERK,90 DEG
    FITTING, ZERK,90 DEG
  • 15
    7081991 JOINT, BALL
    JOINT, BALL
  • 16
    7519043 SCREW
    SCREW
  • 17
    7519087 SCREW
    SCREW
  • 18
    7519306 SCREW
    SCREW
  • 19
    7547333 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 20
    7556153 WASHER
    WASHER
  • 21
    7621472 RIVET
    RIVET
  • 22
    7710533 RING, RETAINER, EXTERNAL
    RING, RETAINER, EXTERNAL
